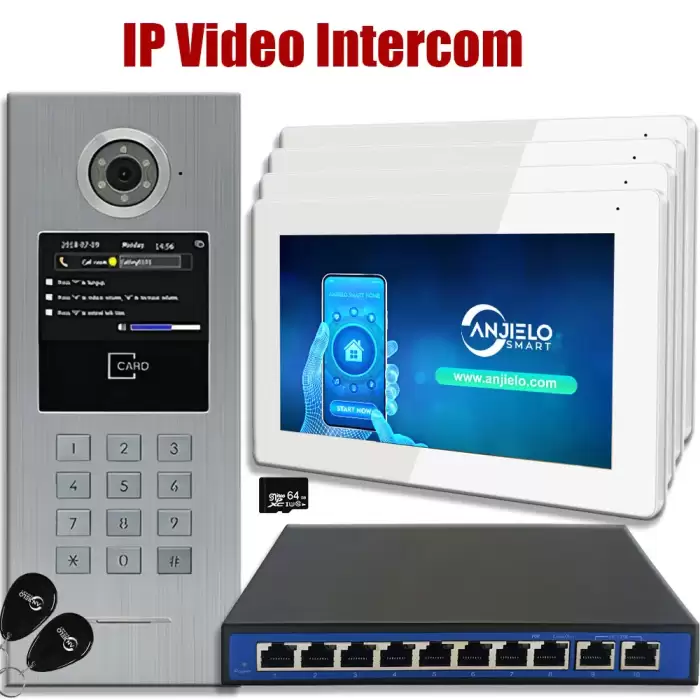

Tuya Smart 7-inch IP Video Intercom Phone for 4 Apartment Building Digital Keypad with IC Card
Notice:
Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect to Other System, Please Contact Us For Technical Support Before Buying.

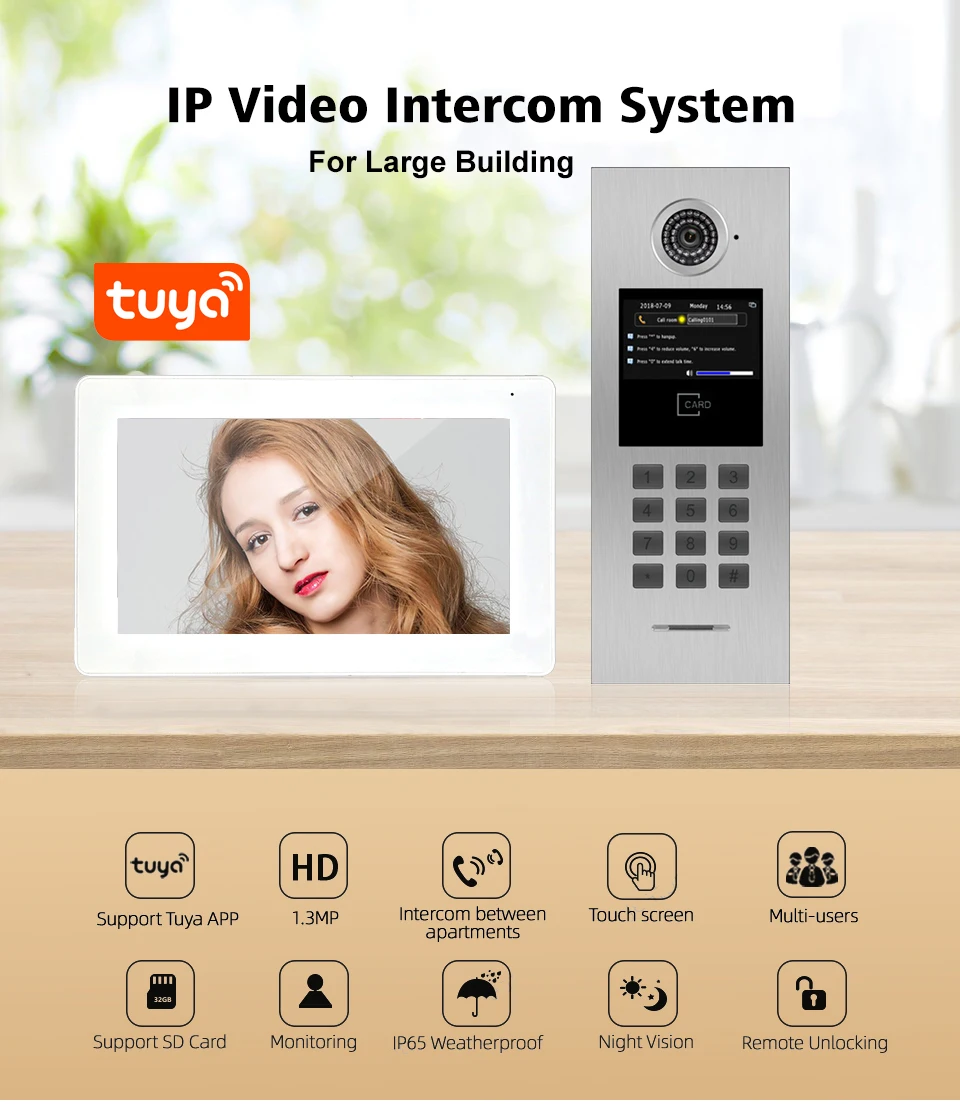

Why Choose Anjielosmart SIP Digital Apartment Video Intercom System?
♦ Support iOS & Android smartphone
♦ Connected via TCP/IP protocol between intercoms, Connected via SIP protocol between intercom and smartphone.
♦ Digital system, CAT5 Network cable connection
♦ 2-way communication between indoor and outdoor units.
♦ Support 2-way communication between monitors
♦ 1.3MP Camera
♦ The call will transfer to smartphone at the same time when somebody presses the call button
♦ Voice messages and video messages supported
♦ Supported Amart Home System, can add 8 security zones alarm (support connecting smoke detector, gas detector...etc)
♦Outdoor call panel support password and IC card.
♦WIFI Enabled or Wired Router

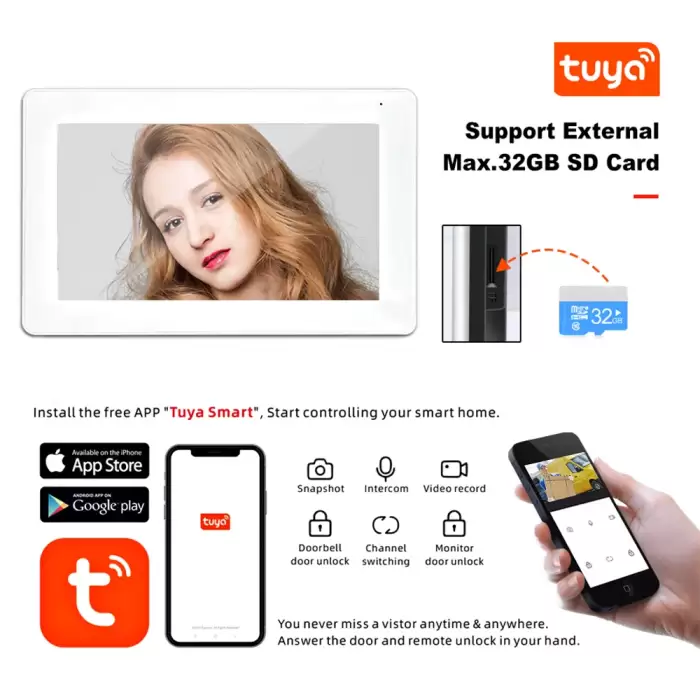

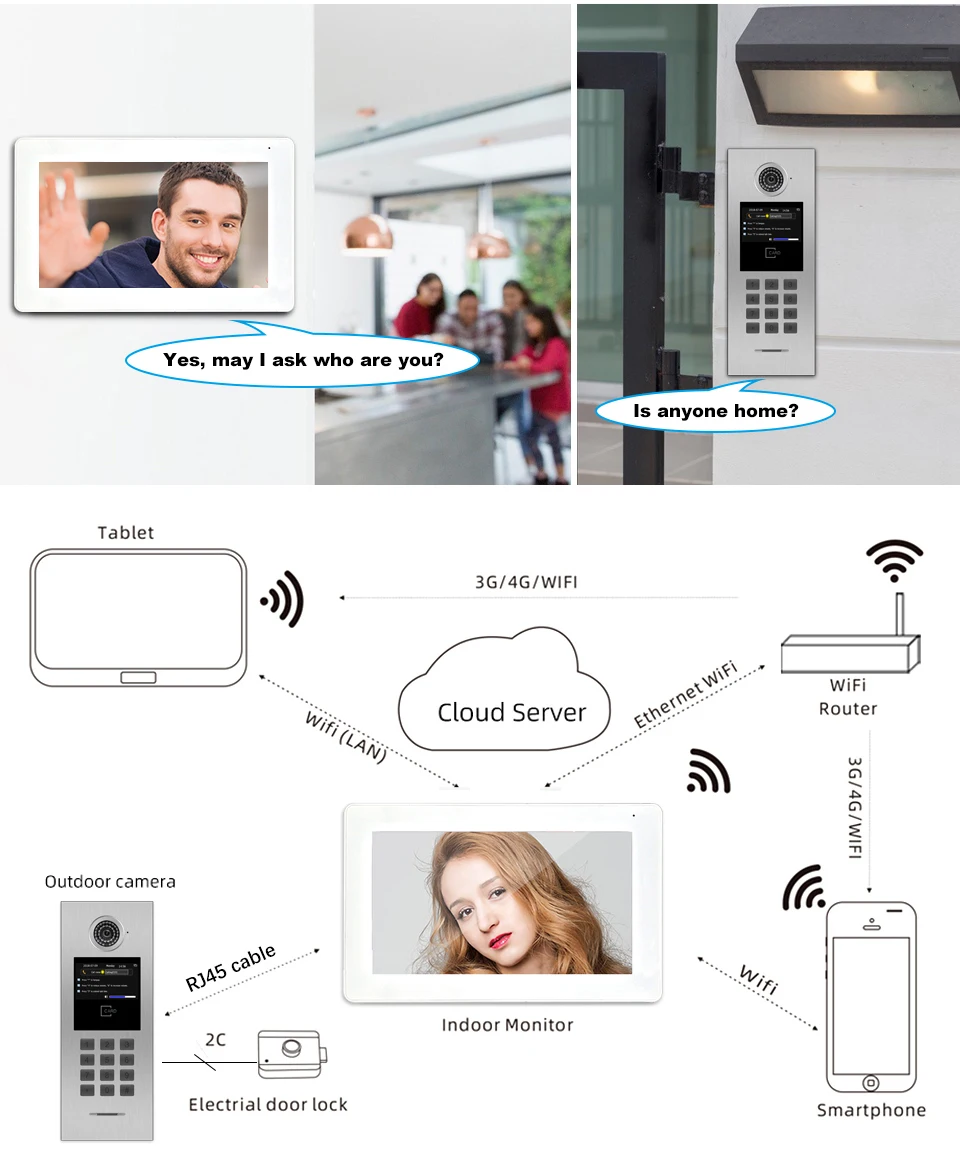

Support Mobile Phone Or Tablet To Download Tuya Smart App;3G/4G/5G Or Wifi For Multiple Networks
When the visitor presses the doorbell, the mobile phone and the monitor will receive the message synchronously. The host can use the mobile phone to monitor the outdoor environment and unlock the guest.
Video Or Picture recording, SD Card Supported (Not Included)
When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Pictures or Video Automatically.
If The SD Card Doesn't Apply, The Monitor Will Just Only Record Pictures. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video.
When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

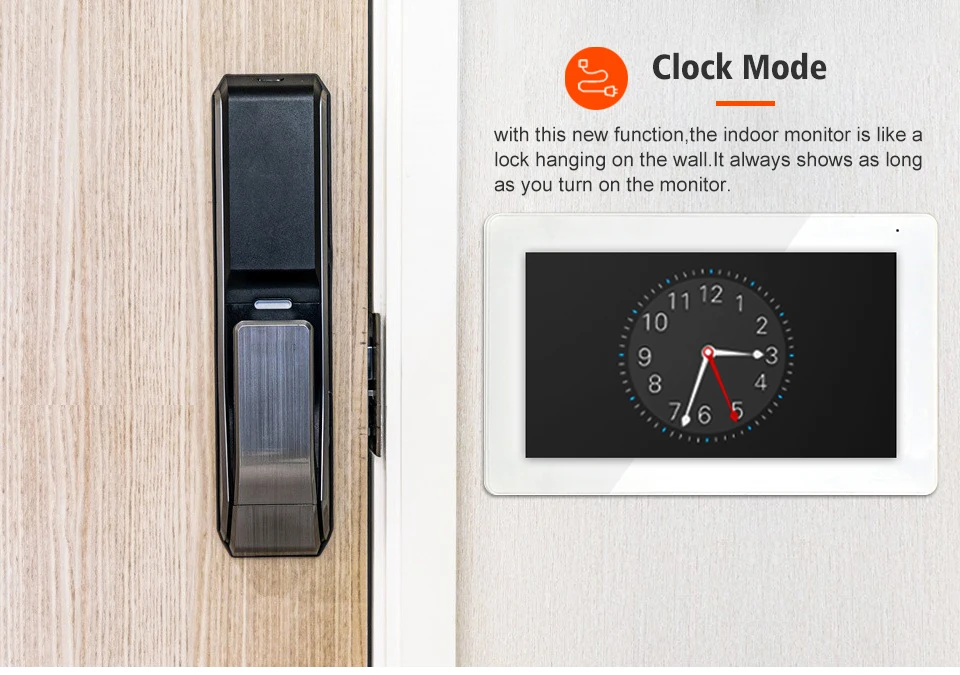

Multi-purpose Machine, Clock Mode
The latest software is the monitor standby time. If you did not operate the monitor for 1 minute and the time will not be displayed on the monitor. it can protect the life of the screen.

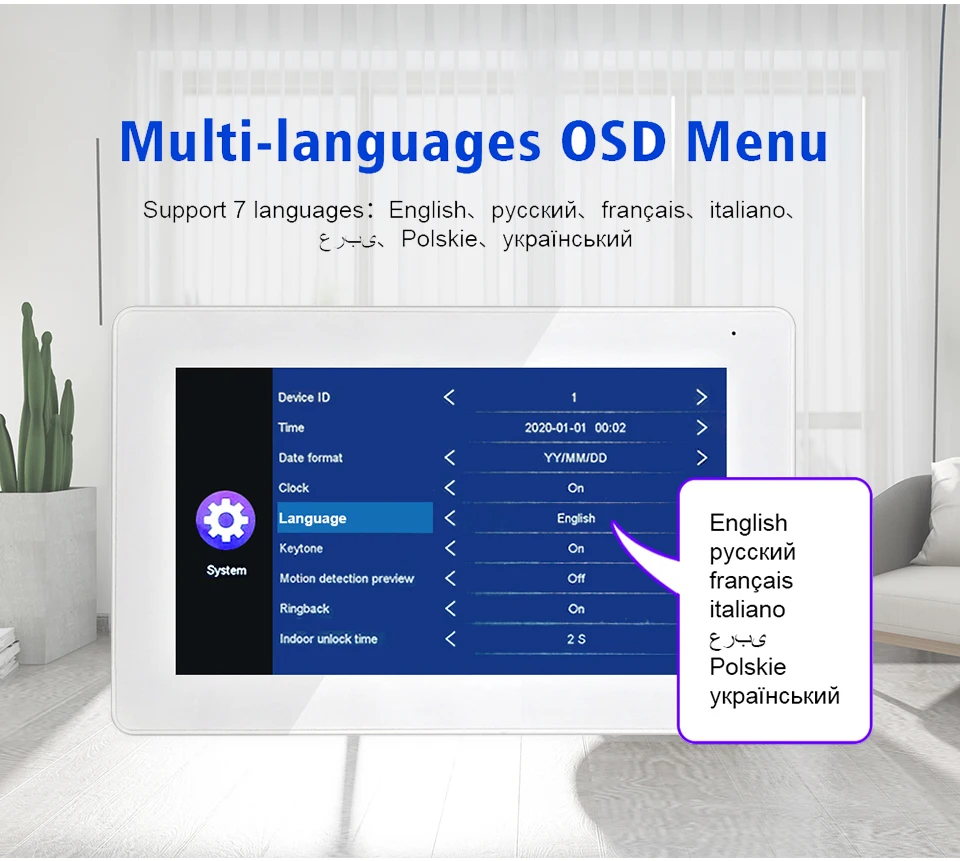

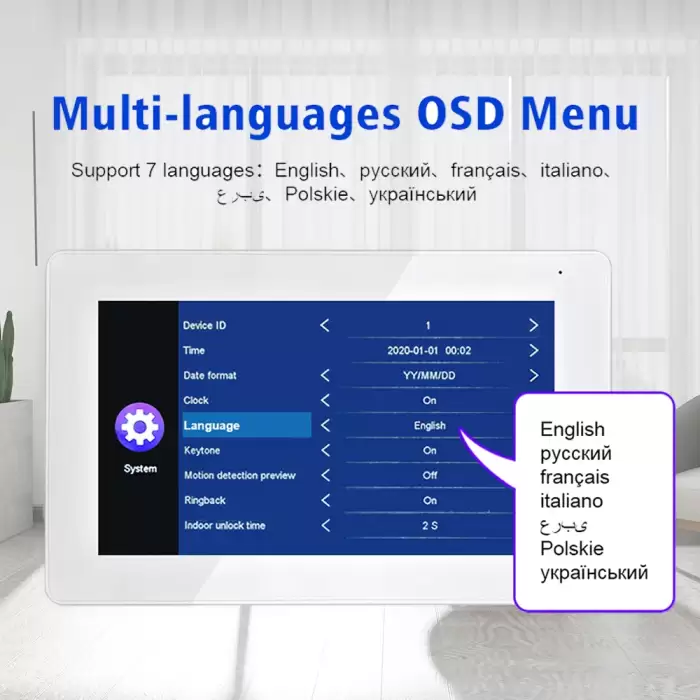

Multi-languages OSD Menu
Based on the wide range of users worldwide, we have carefully edited 12 languages to meet the usage habits of customers in various countries.

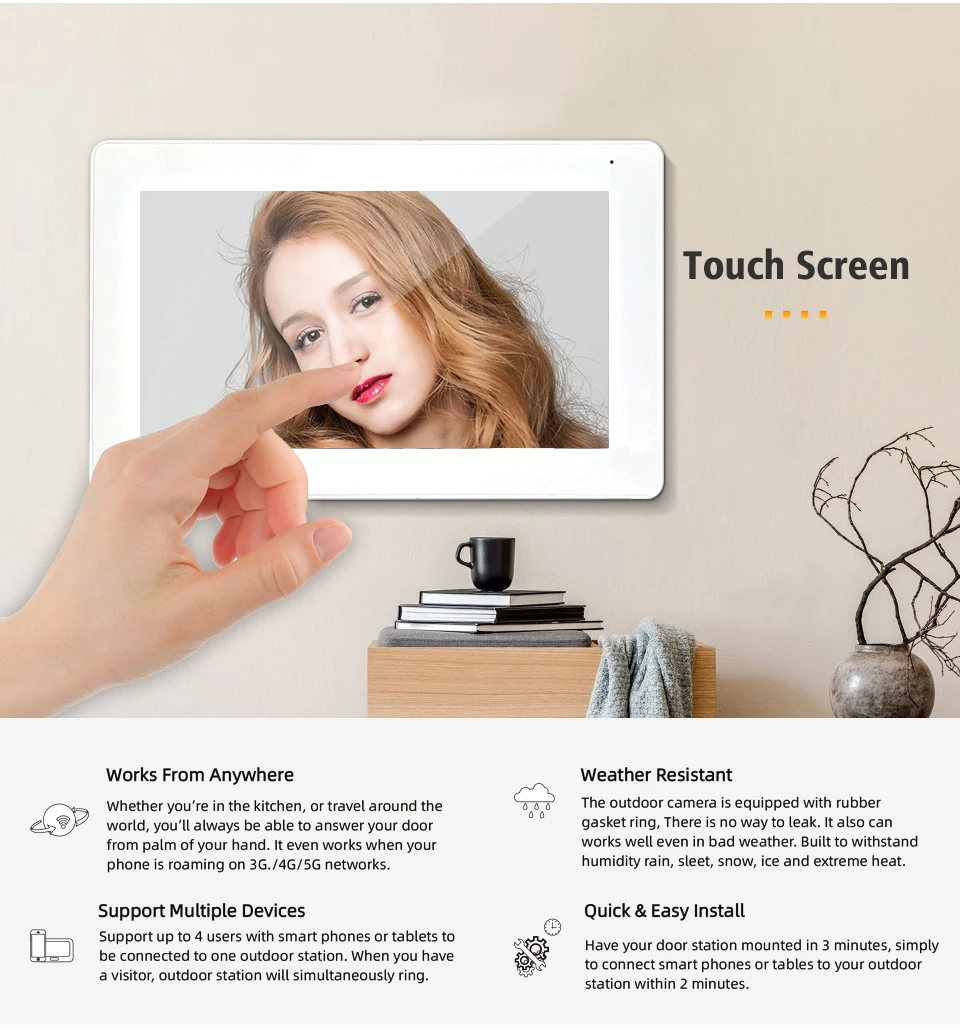

Upgraded 87 series 7 Inch HD Touch screen system
The upgraded version of the touchscreen system is easier to operate, and children will also know how to use it.
Handsfree Dual-way Intercom
Communication between the indoor monitor and the outdoor camera is supported. Let you know easily what the visitor is talking about

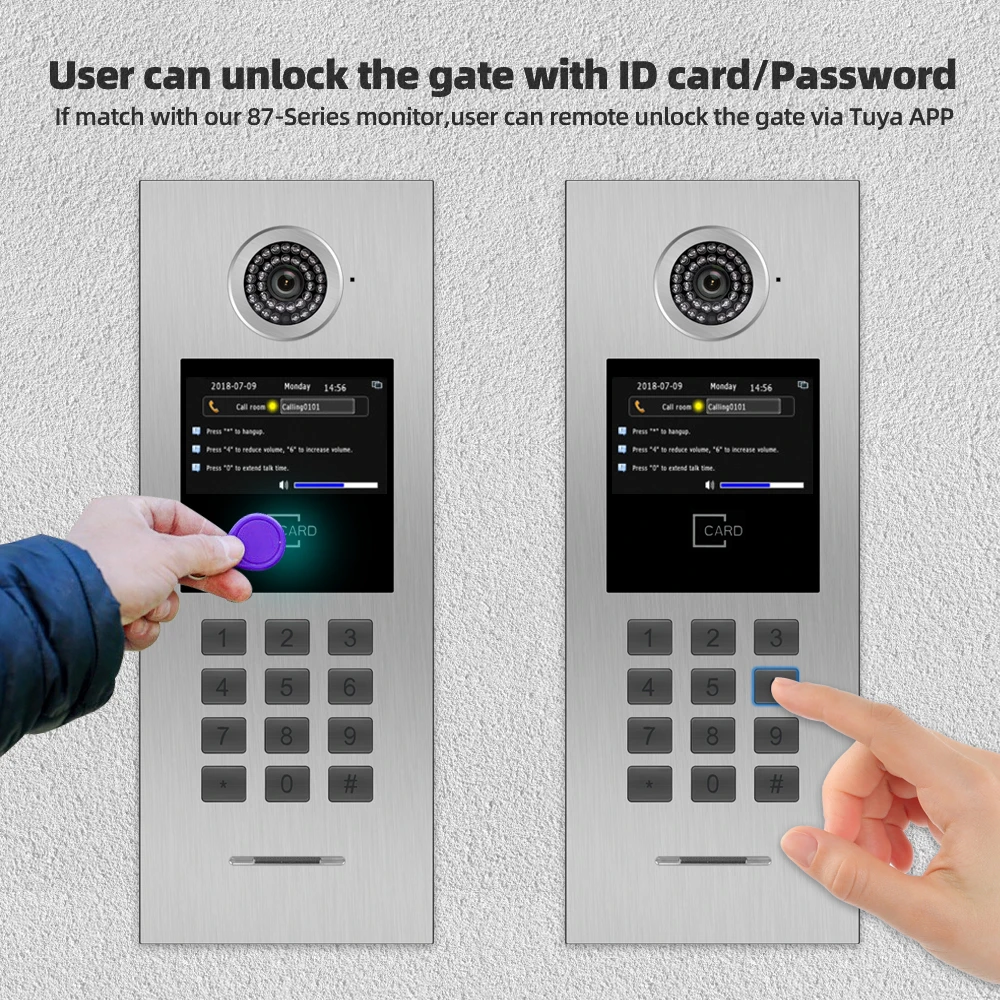

4 Different Unlocking Methods
When you are outside, you can enter a password, swap the IC card, or use Tuya Smart APP to unlock to door!

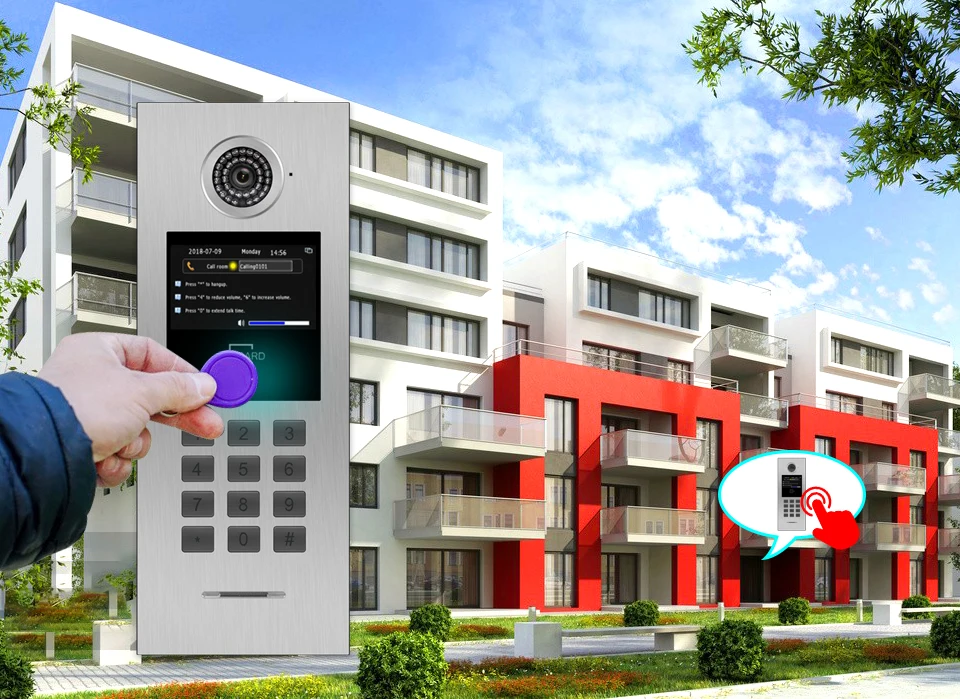

Support A Building With More Than 5 Independent Apartments
We suggest using this large doorbell in the building that supports Multi-apartments(>=5), it will be more suitable, and Max supports 999+ indoor monitors.

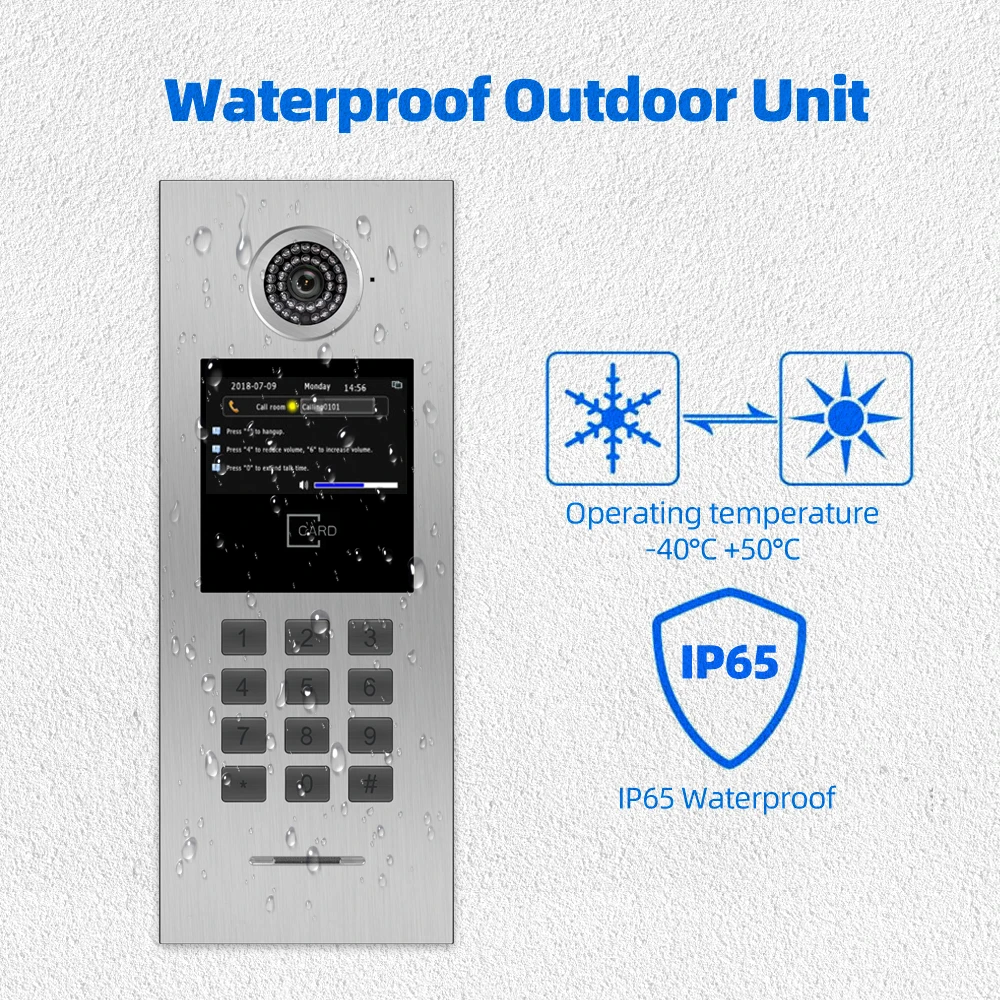

IP65 Waterproof, Adapt To Extreme Temperature Differences, Not Affected By Weather
1. The product can operate as usual in many harsh environments outdoors, with humidity rain, sleet, snow, and high temperature.
2.IP65 waterproof: The airtightness is good, and the outdoor unit is equipped with a rubber gasket ring, which can prevent dust, water, and moisture.
3. operation temp:-40~50, Can run normally in extreme outdoor temperatures.

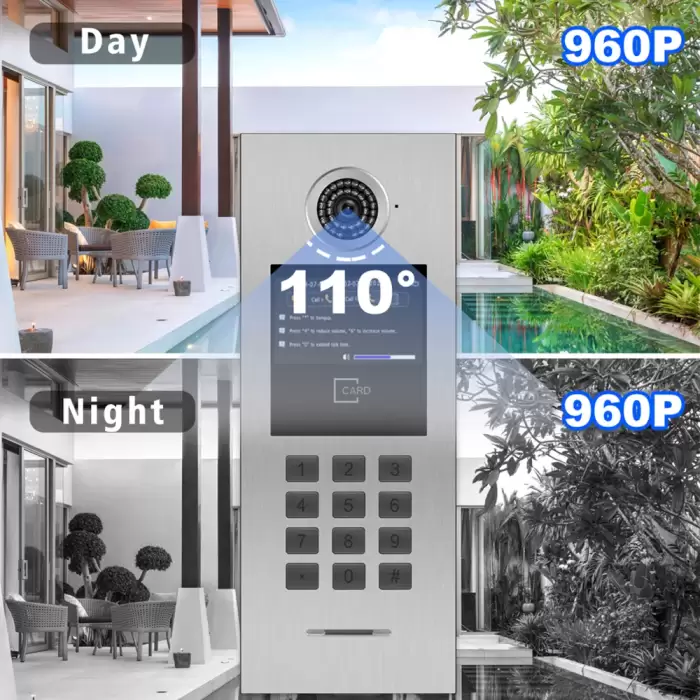

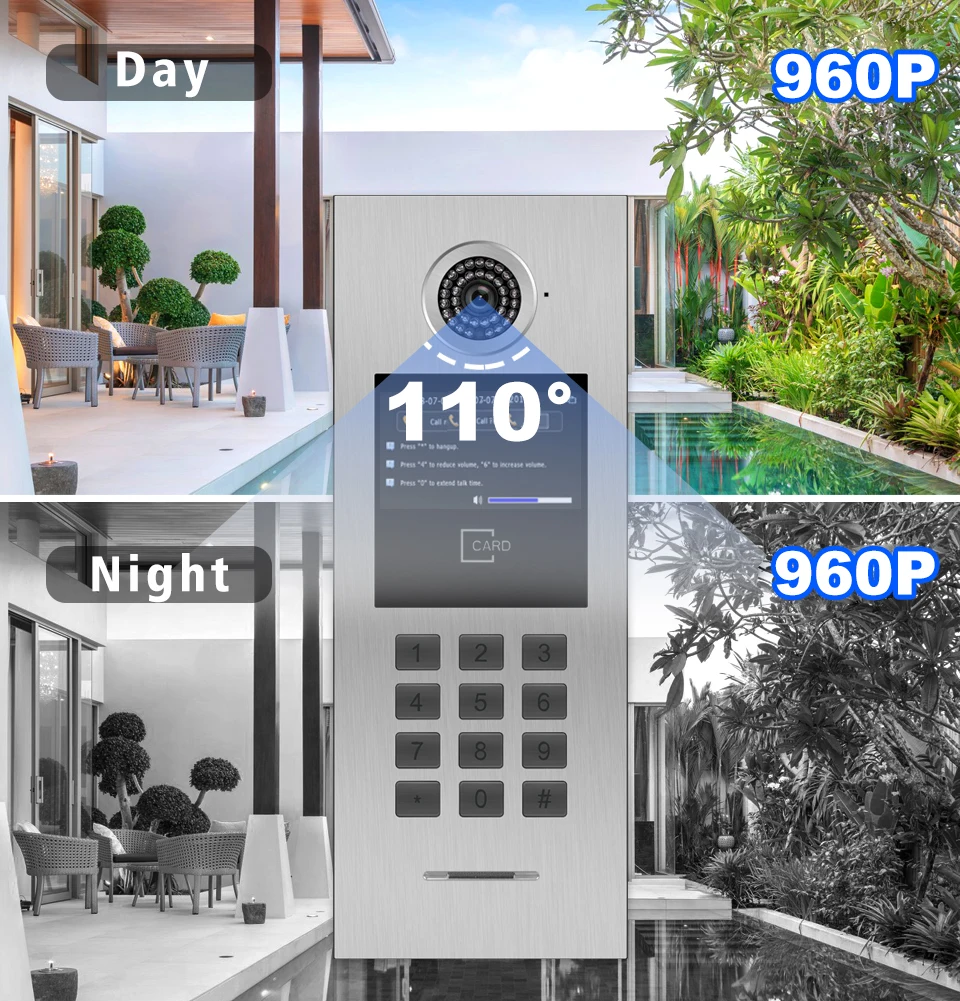

High-definition Camera, Night Infrared Monitoring
1). Infrared monitoring can clearly see the outdoor environment even at night, monitoring protects your safety.
2).1.0MP high resolution, which can monitor every detail more clearly.

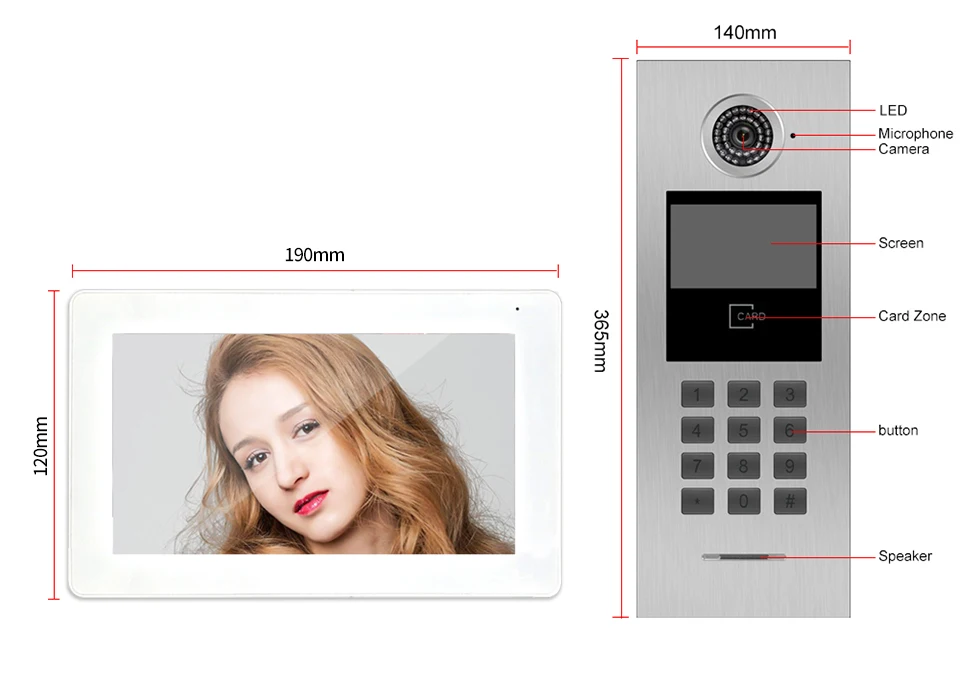

Product Size
Outdoor Call Panel
♦ 110 degrees Wide angle camera
♦ Rust-proof anti-vandal panel
♦ White LED offset lighting can obtain better evening viewing
♦ Unique waterproof IP65, dustproof, anti-thunderstorm design
♦ Password and IC card supported
♦ Special design rubber for waterproof
♦ Rust-proof anti-vandal panel
♦ White LED offset lighting can obtain better evening viewing
♦ Unique waterproof IP65, dustproof, anti-thunderstorm design
♦ Password and IC card supported
♦ Special design rubber for waterproof
Indoor Monitor
7inch touch screen plastic tablet design
* Full digital, CAT5/CAT6 network cable connection
* 7" LCD Capacity touch screen, metal housing * Operation System: Linux * Protocol:TCPIP/SIPLCD
* Resolution: 1024*RGB*600
* Ethernet 10/100M RJ45
* Power: POE 802.3af or External Power Adapter 12V DC
* Two way communication
* Suport one outdoor station to connect multi monitors, one monitor connect multi door stations.
* Internal communication
* Mobile and indoor unit get a call in the same time.
* Call records with visitor voice message
* Support connection 8 zone alarm input and 2 zone output
* Support SD card: 8-32G
* SIP protocol to mobile device, device to device is TCP IP protocol
* Two way communication
* Suport one outdoor station to connect multi monitors, one monitor connect multi door stations.
* Internal communication
* Mobile and indoor unit get a call in the same time.
* Call records with visitor voice message
* SIP protocol to mobile device, device to device is TCP IP protocol

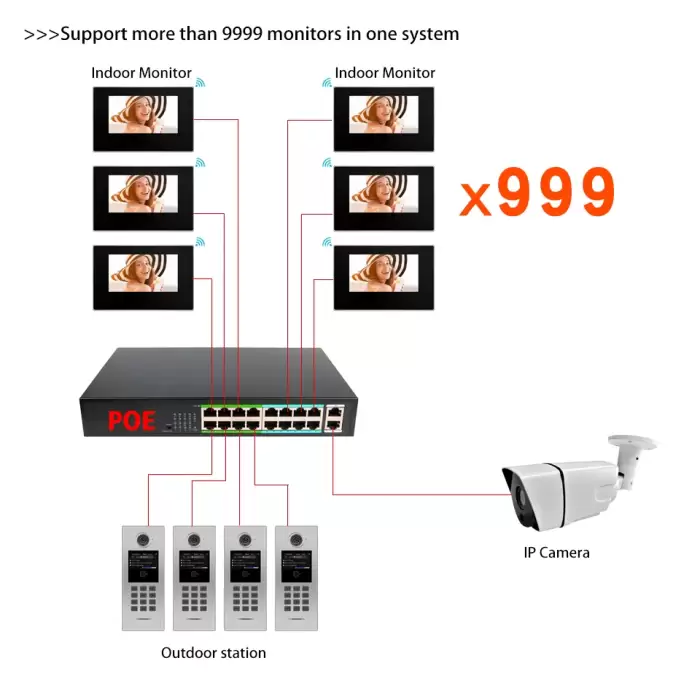

System Diagram
1. It can be connected to multiple indoor monitors. You can install more than 9999 monitors as you want in the house.
2. Support one outdoor unit with multiple indoor units.
3. Digitization, just connect the indoor unit with a network cable.
3. Digitization, just connect the indoor unit with a network cable.
Technical specifications
| color | SET |
|---|---|
| Hign-concerned Chemical | None |
| Doorbell | Yes |
| Material | Wire Drawing Aluminum Case |
| Sensor Size(Inch) | 1/3 |
| Camera | COLOR |
| Model Number | 87721ATM-87202S-K |
| IP Camera Interface | Yes |
| Access Control | Inductive Card |
| Waterproof | IP65 Aluminum Panel |
| Samrt Home Interface | Yes |
| Installation | Dark Bottom Box |
| Communication Interface | WireLess |
| Zone Input | 4 |
| Display Screen Type | Color Touch Screen |
| Type | intercom system |
| Viewing Angle (°) | 110 |
| Kit Configuration | One to Four Video Doorphone |
| Display Screen Size(inch) | 7 |
| Answering Mode | Hands-free |
| Camera Sensor type | CMOS |
| Connection Method | Wired |
| Brand Name | anjielosmart |
| Origin | Mainland China |
| Smart home platform | Other,Tuya |
| Resolution | > 420 TV Line |
| Certification | CE,FCC,RoHS |
| Plug Type | EU Plug,US Plug,AU Plug,UK Plug |
| Power (W) | 220v |
| Technology | DIGITAL |
| Size | 7 Inch Video Intercom System |
| Power | External power DC12V |
| Menu Languages | English, Russian, Portuguese, Turkish, Spanish, German |
| Intercom Mode | Hands-free Dual communication |
| Memory | Support Max. 32G SD Card |
| Conversation Duration | 120s |
| Volume | Adjustable |
| Support System | 2 call panel + Many indoor monitors +10 ip cameras |
| Camera Sensor | CMOS 1.3 Megapixel |
| SKU | 1005006329201054 |
