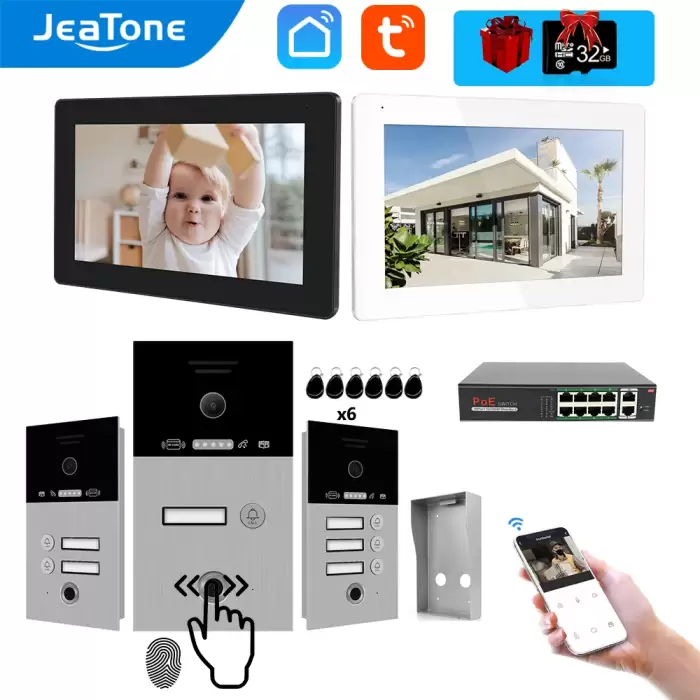

Jeatone WIFI Touch screen 7inch Video intercom for Home/Apartment 1/2/3F Wireless TUYA APP Doorphone With Fingerprint RFIC card

Doorbell

Model:83253CF
Dimension:210*115*35 mm

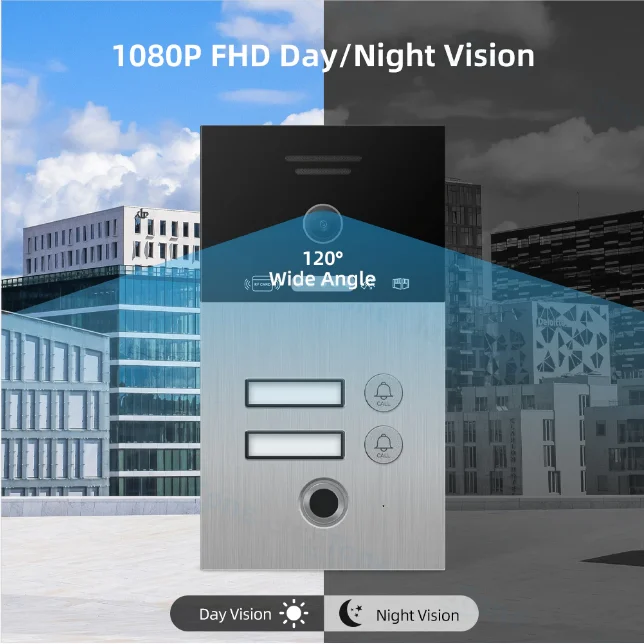

Camera Sensor:2.0MP
View Angle:120°
Night Vision IR Light:5pcs IR LED Light
Connect Mode:RJ45 Connection
Power Supply:PoE/DC12V adapter
Electronic Lock:Support a NO/NC Lock
Access Unlock Method:Fingerprint,IC card unlock
Operation Temp:-40°C +50°C

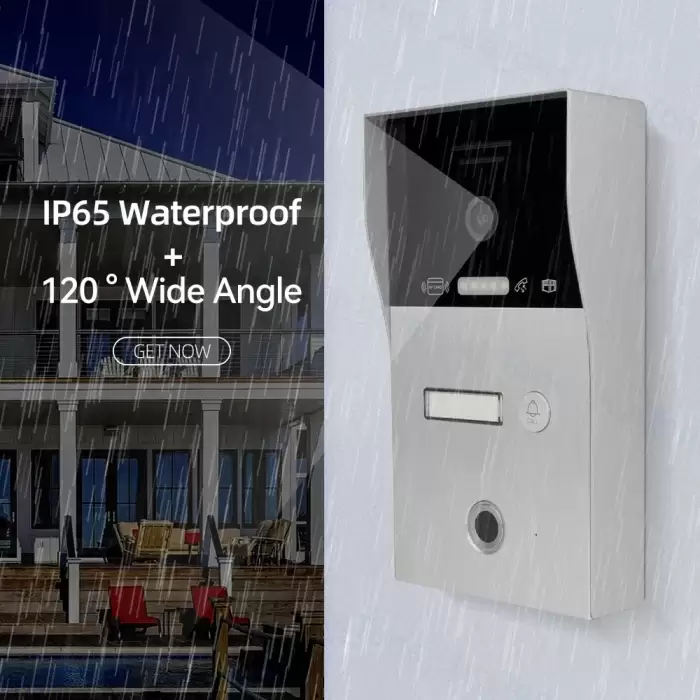

Waterproof:IP65

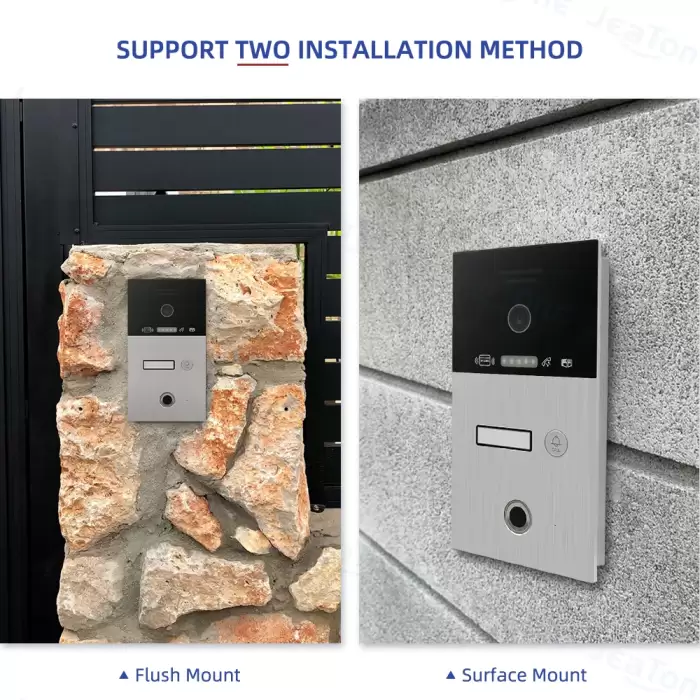

Installation:Surface Mounted/flush miunted

Monitor

Model：83721

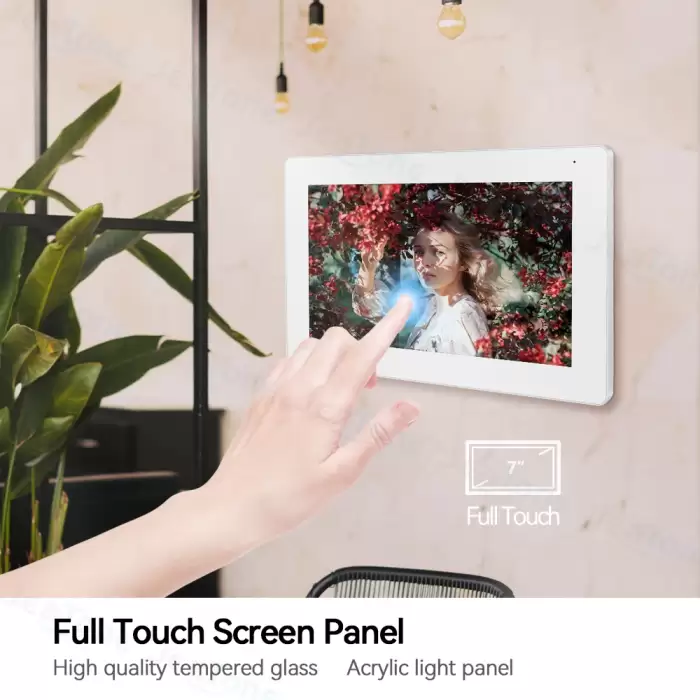

Monitor：7" TFT full touch screen
Dimension：120mm*190mm
Resolution：(1024H)*3(RGB)*600(V)
Memory：Built-in Memory Can Save 86 Pictures, Support External Max.128GB SD Card
Power supply:Power supplied by DC12V adapter or PoE switch
Intercom Mode：Dual-way intercom
Leave Message Time：30s/60s/90s optional
Conversation Duration：Max.180s
Ringtone：Customized supported
Material：Wire Drawing Arcylic Case
Operation Temp：-10°C +60°C
Installation：Surface Mounted

Support mobile phone or tablet to download Tuya smart app；3G/4G/5G or wifi for multiple networks

1.The Multi-dimensional connection can use to realize intelligent intercom on any device.Including app connect with outdoor unit;Indoor unit connect with indoor unit；Indoor connect with outdoor units;Indoor connect with outdoor units;Make communication fast and barrier-free.
2.Mobile phones and tablets only need to connect to 3G/4G/5G or wifi multiple networks to synchronize the indoor unit at any time.
3.After downloading the Tuya app, Just scan the QR code to connect to the app,you can connect the monitoring device to your smartphone in less than two minutes.The operation is simple and safe.

New era smart home,Free tuya smart app,Operate and monitor more convenience anytime any anywhere

1.After downloading the Tuya app, you can connect the monitoring device to your smartphone in less than two minutes.The operation is simple and safe.
2.No matter where you are in your home or even abroad, you can easily answer the doorbell remotely and monitor the outdoor environment.
3.This trend of future technology, free your hands, and enjoy using a mobile phone to control the whole house of smart home appliances!
4.Support to insert 128G card for recording, screenshot and upgrade.

Automatic snapshot/record Message function /White custom signdoes --Not miss visitors

1.Don't worry about missing visitors.When a visitor presses the doorbell, the doorbell will automatically keep a screenshot or short video. If no one answers for a long time, the message function will be activated. You can look back at all this.

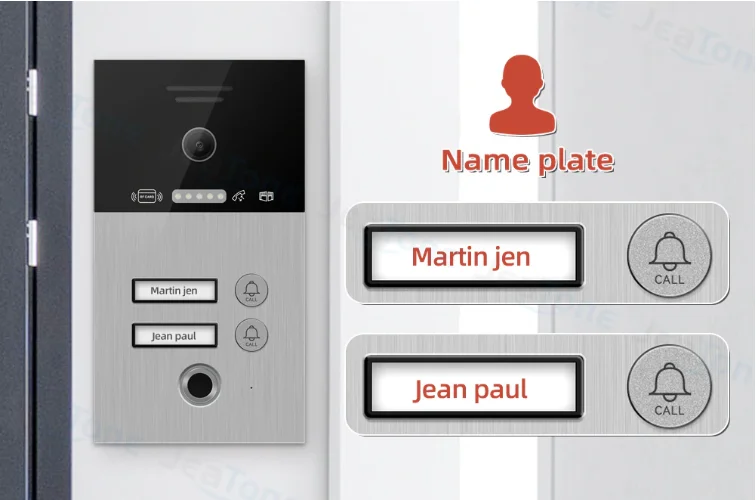

2. White custom signdoes. This is a thoughtful design, you can fill in your personalized name or floor name, so that visitors can clearly find your location.

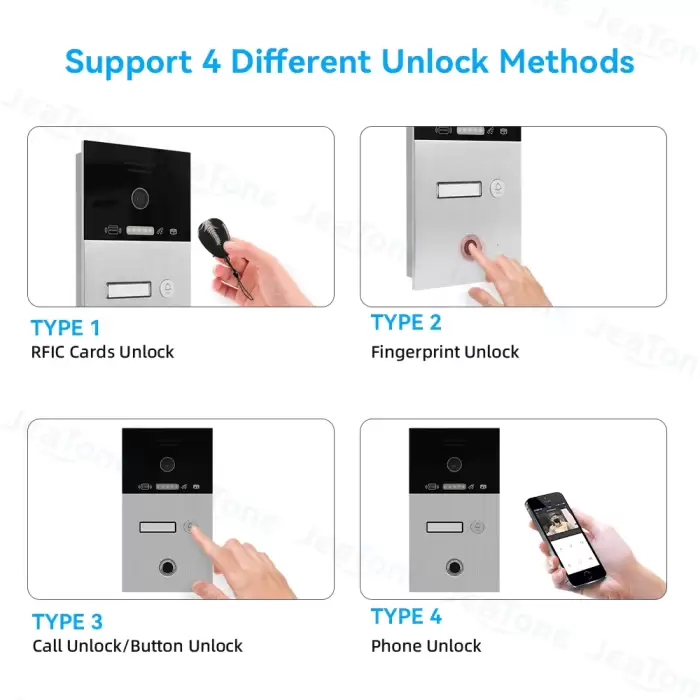

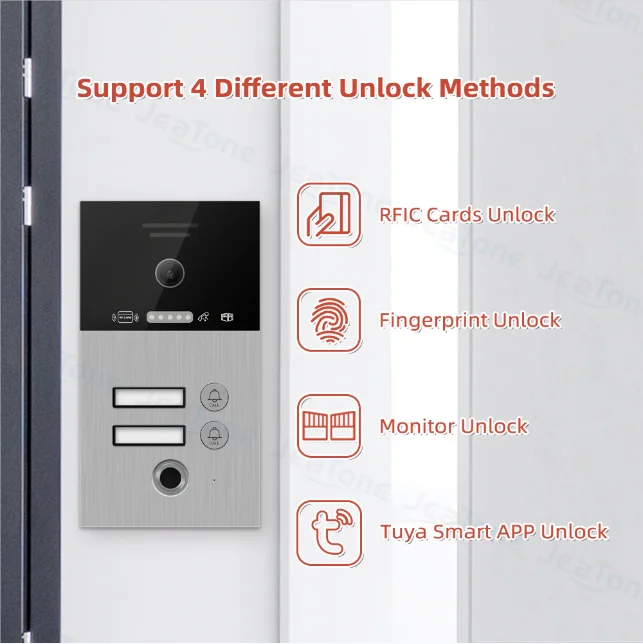

Fingerprint and RFIC card Keypad Support

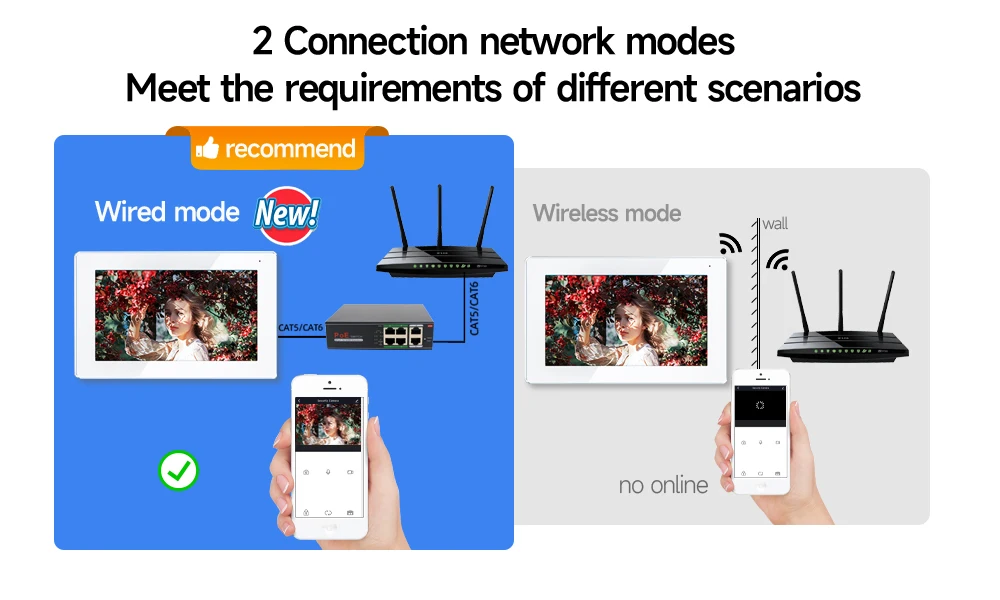

Upgradation:The 87 series only supports wireless network connectivity,83 series both WiFi and RJ45 Connection Available

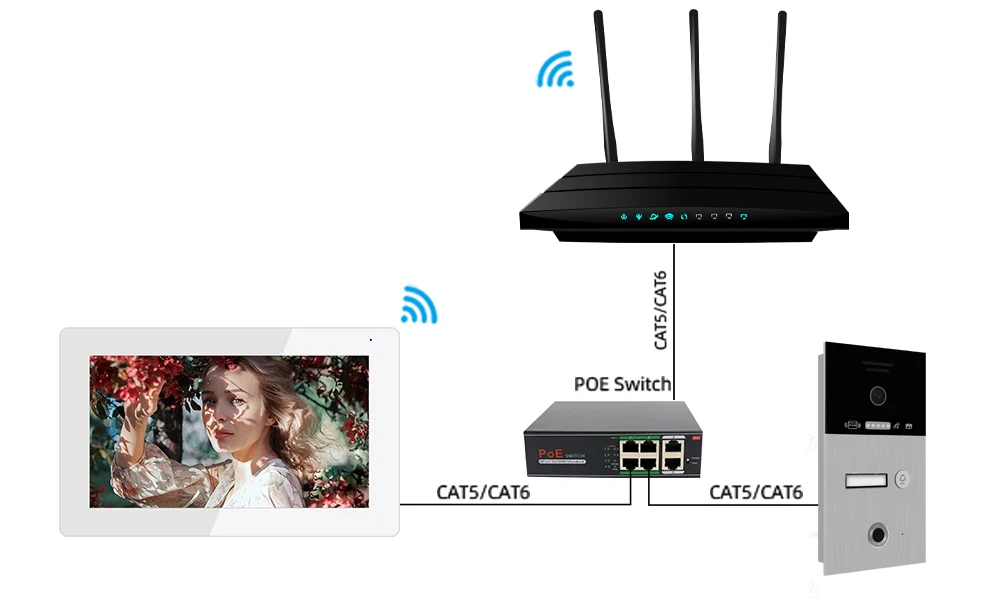

When your router is far from the indoor unit and the WiFi signal is sometimes strong or weak, you can connect the router wired to the POE switch for use.

Product color and appearance

Regarding Whether to use a POE switch？

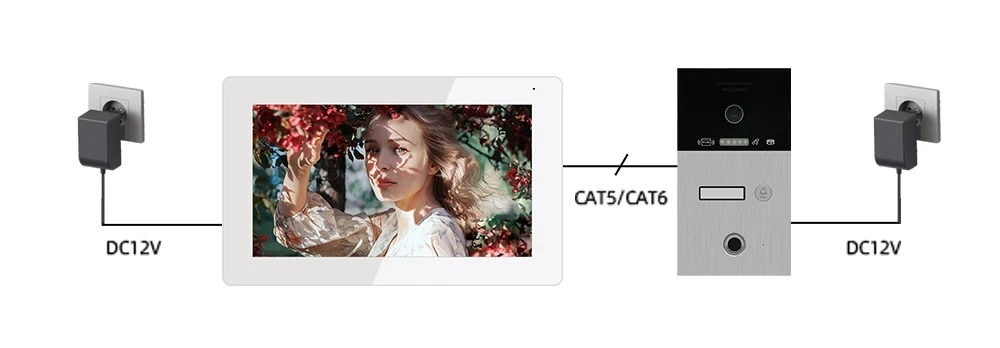

• Default panel--NO need

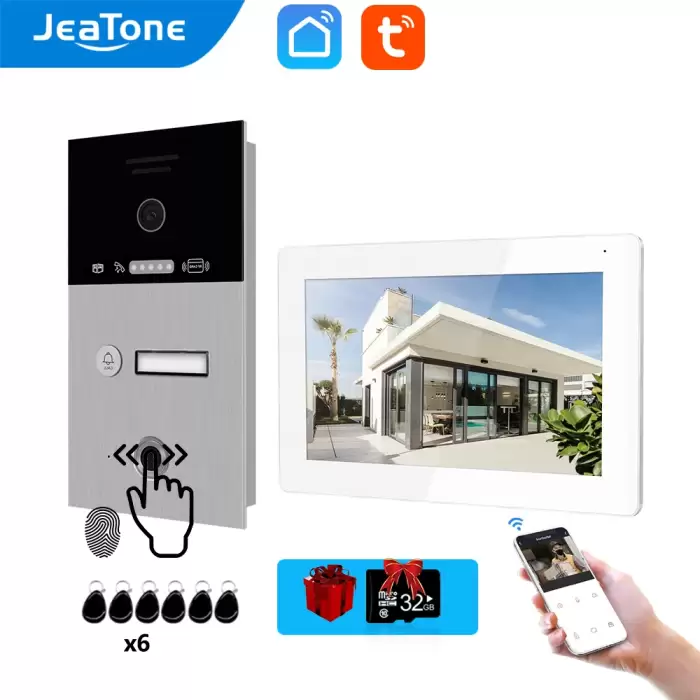

P253F1M721W1-83-32G

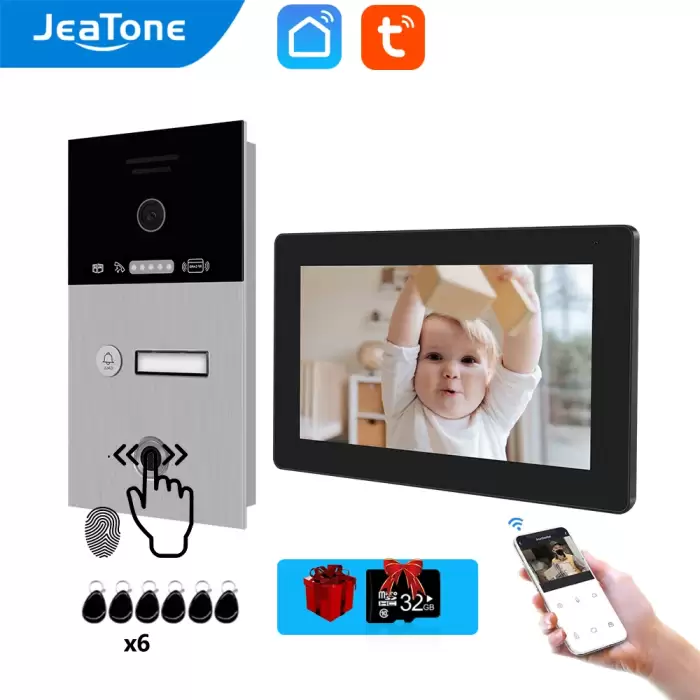

P253F1M721B1-83-32G
• It is only suitable for one doorbell with one monitor, no POE switch is needed. The monitor and doorbell are directly connected through the network cable cat5/cat6. We will send you 2x power supply for independent power supply.
• Recommended for users with one matching one! ! ! This is a very cost-effective choice! ! !

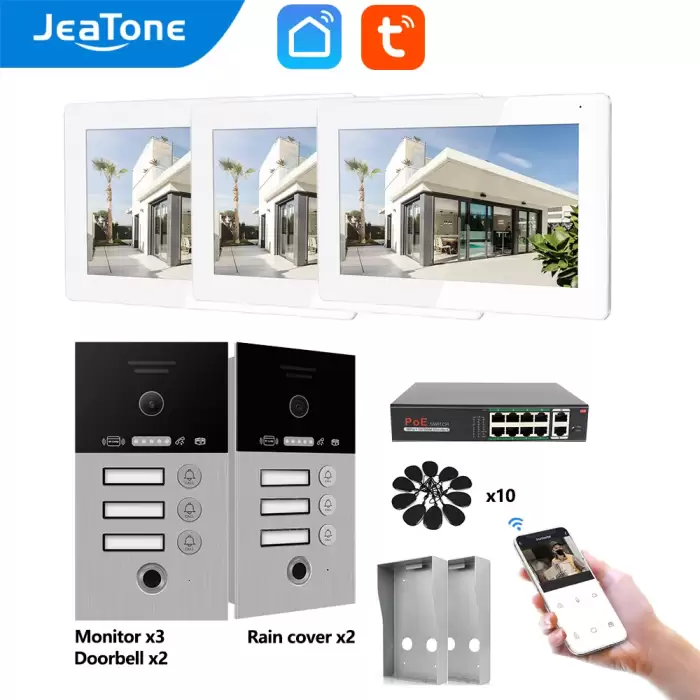

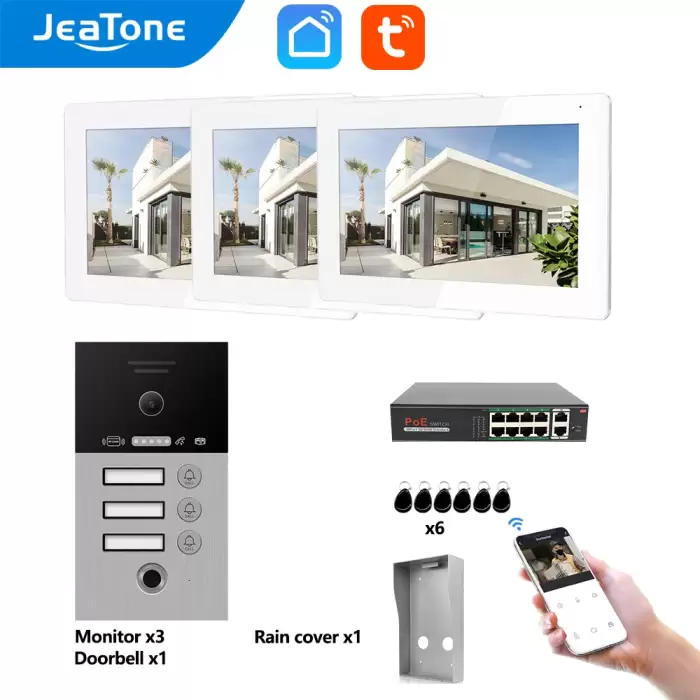

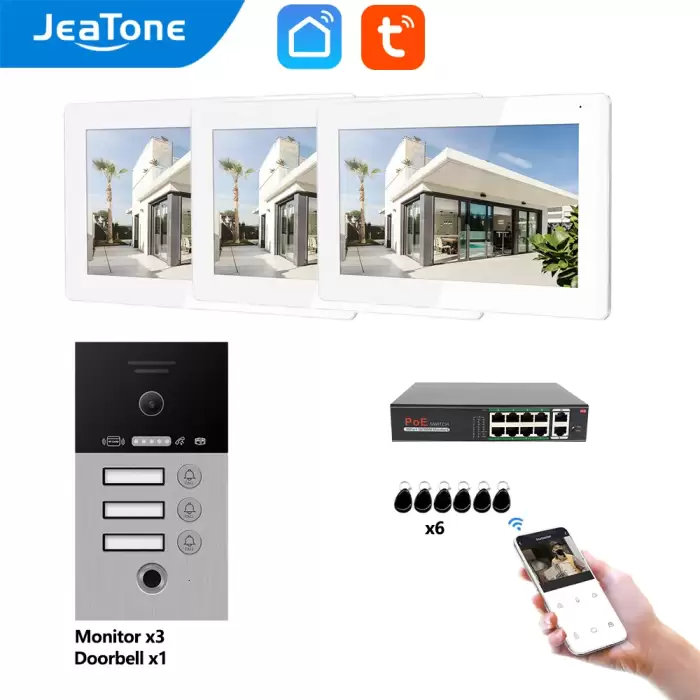

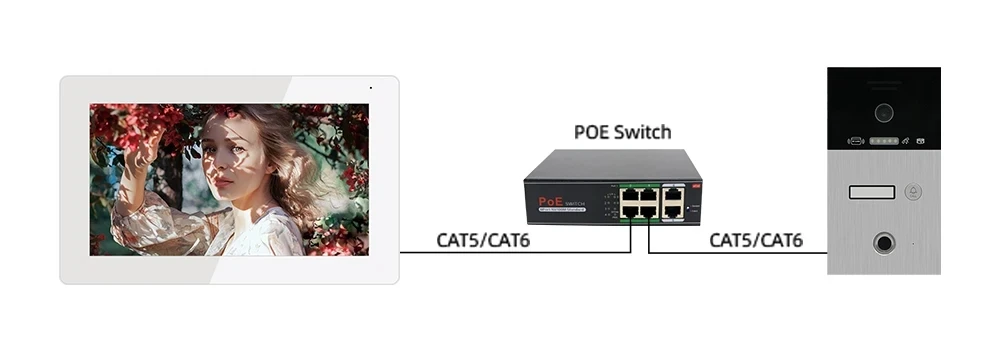

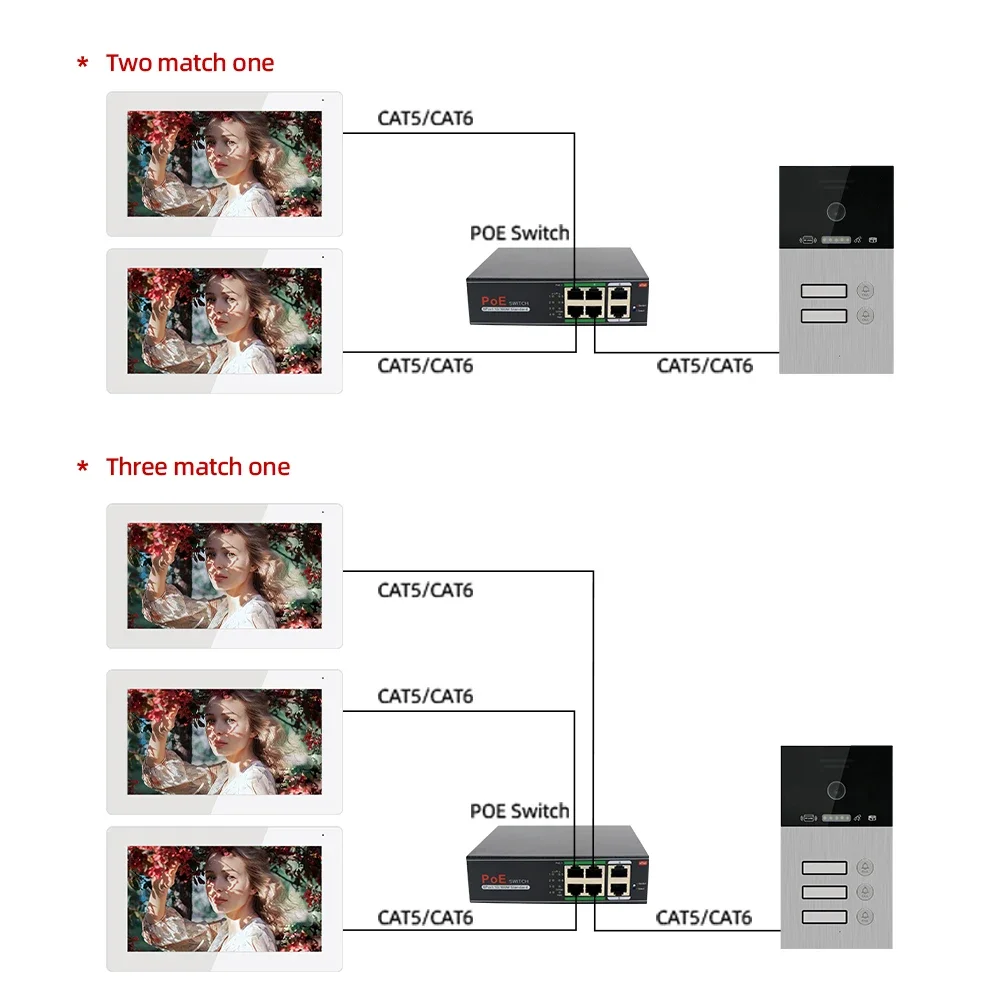

POE panel--YES need
The rest of the choices are POE panels

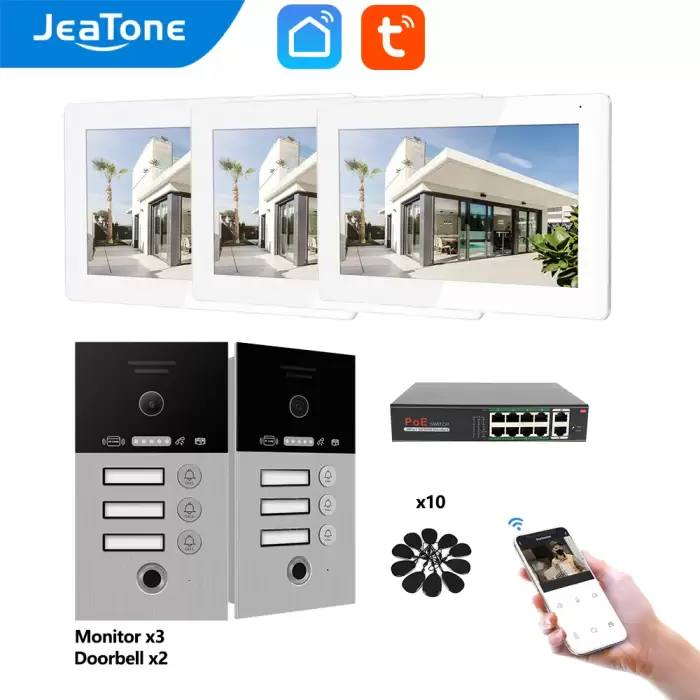

• Use POE switch, powered by POE, omitting separate power supply (you need to understand that if you buy a 3F doorbell and 3 monitors, you can omit 4 huge power plugs, which is a great choice)
• For more than 2 devices, POE switches are required
• Advantages, you can add IP cameras at will, up to 10 cameras. Each floor can add multiple monitors, and each floor supports a maximum of 10 monitors.
• It is recommended for customers who do not want separate power supply and use more than 2 multi-system devices.

Wired Connection

Default Connection
