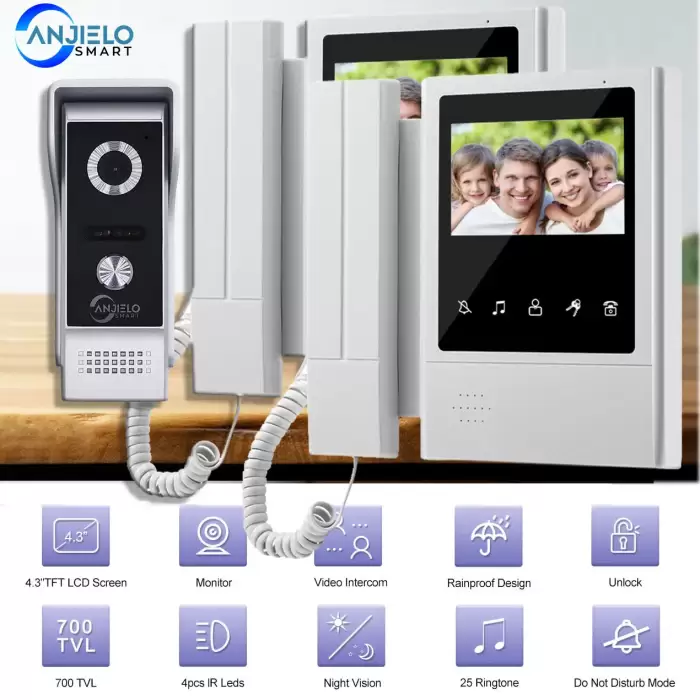

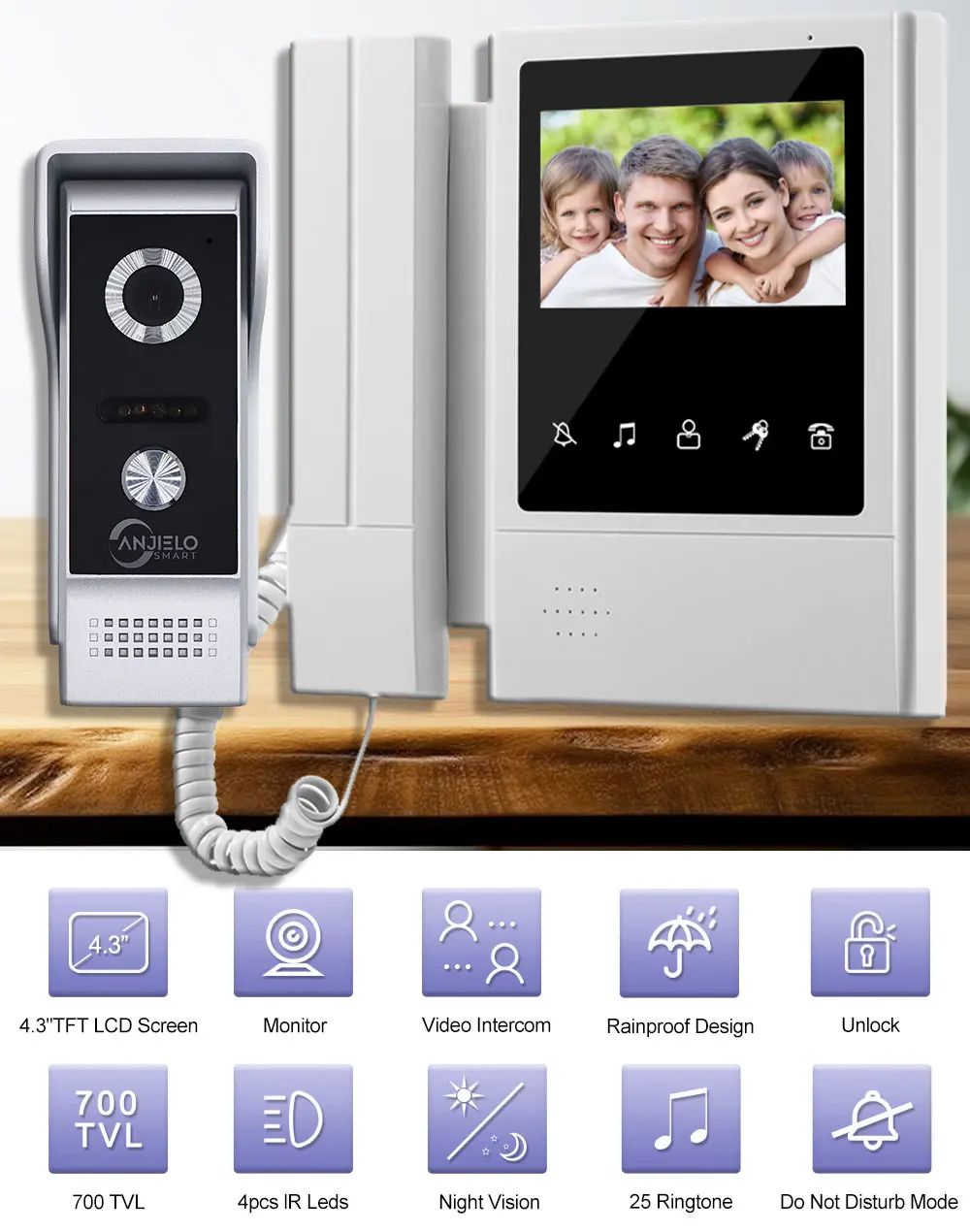

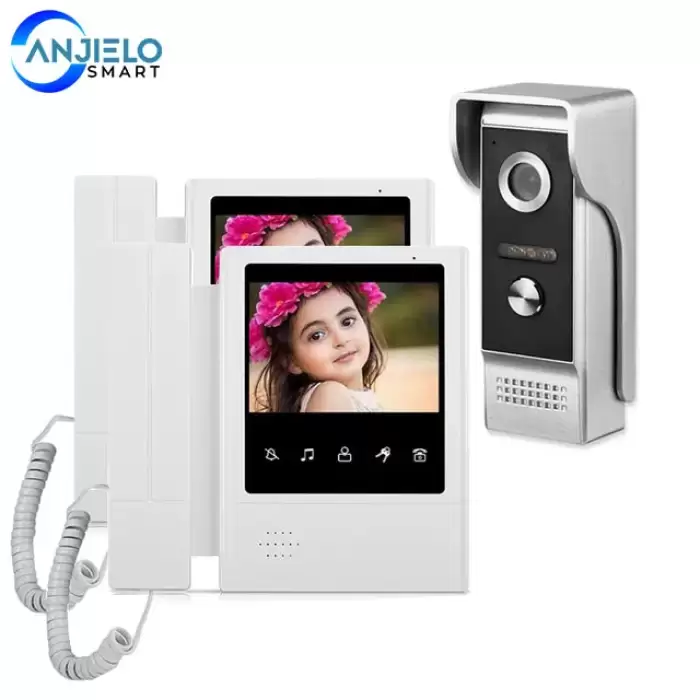

1. Colourful Video Intercom has outstanding value in the intercom and doorbell market. It comes complete with a comprehensive set of video door communication tools, including a security monitor, camera, intercom, and other accessories.

2. With the 4.3'' high-resolution color TFT LCD and IR camera, the picture is very clear even at night. What is more, the outdoor camera is made of aluminum alloy which is antioxidative and whose appearance is very beautiful.

3. Besides, it's very easy to install with the user manual. The color video door phone kit will surely satisfy your requirements with a proven technique, and stable and outstanding performance. The details will be shown as follow.

Features:

1.700TVL CMOS sensor, clearer pictures displaying.

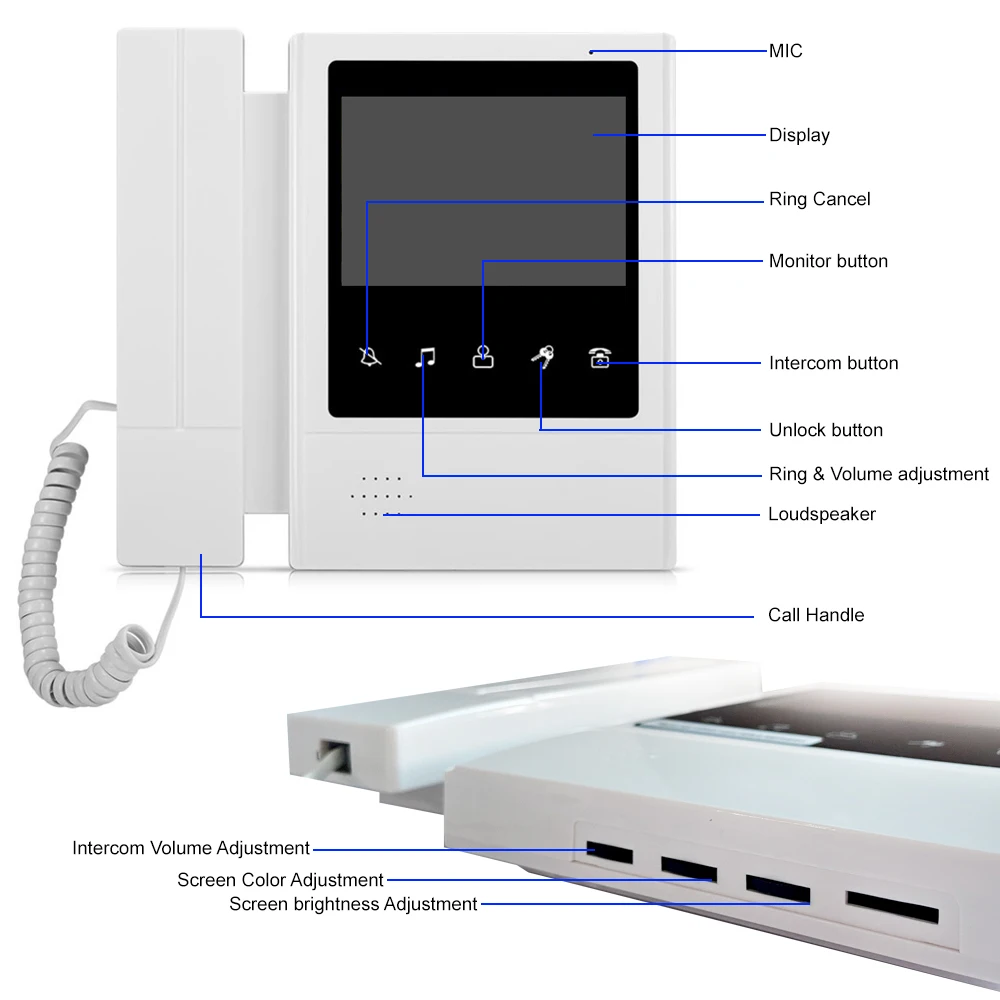

2. 4.3-inch touch screen, high definition and sensitive, easily see the real-time images.

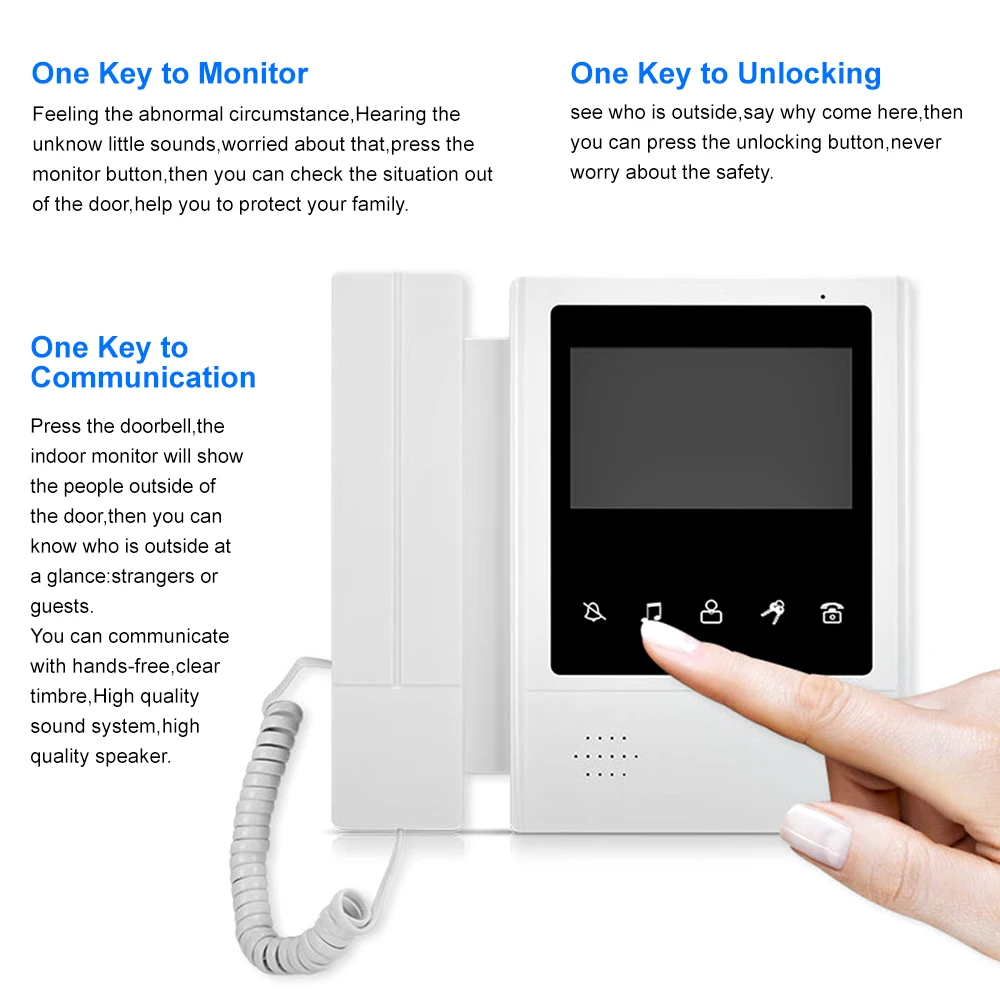

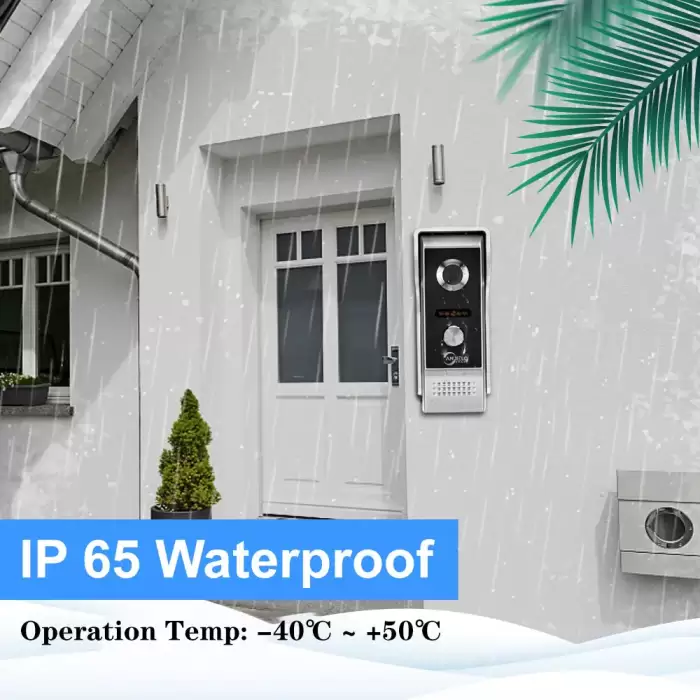

3. With functions of a two-way intercom, unlock real-time surveillance, rainproof, and night vision.

4. 25 kinds of music rings are optional.

5. Real-time outdoor surveillance for home security. For the indoor monitor, quality PMMA and ABS material, for the outdoor monitor, zinc alloy and PMMA material, are durable in performance.

Specifications:

Display: 4.3inch TFT LCD screen

Resolution:  800*480Image

Sensor:  700TVL CMOS

IR LED:  4pcs

Camera Lens: 3.6mm

Camera Angle: 110°

Infrared Distance:  0.2-1.0m(optimum)

Ring: 25 songs(optional)

Installation:  Surface mounting

Indoor monitor Power supply: Input AC100-249V  Output: DC 15V 1500mA

Indoor Monitor Material:  PMMA + ABS

Outdoor Camera Material:  Zinc alloy +PMMA

Outdoor Camera Working Temperature: -20 + 60°

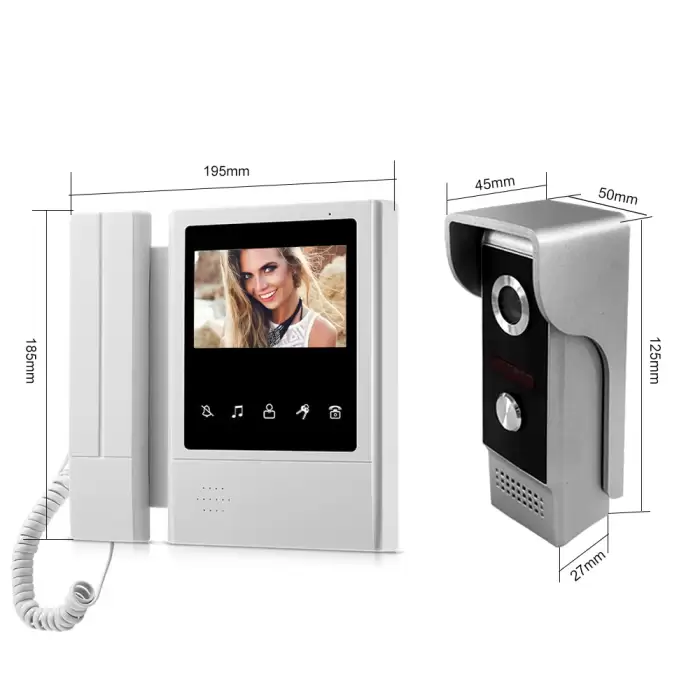

Indoor Monitor Size:  Approx.19.4*18.4*3cm

Indoor Monitor Weight:  465g

Outdoor Camera Size:  Approx.12.7*5*4.4cm

Outdoor Camera Weight:  234g

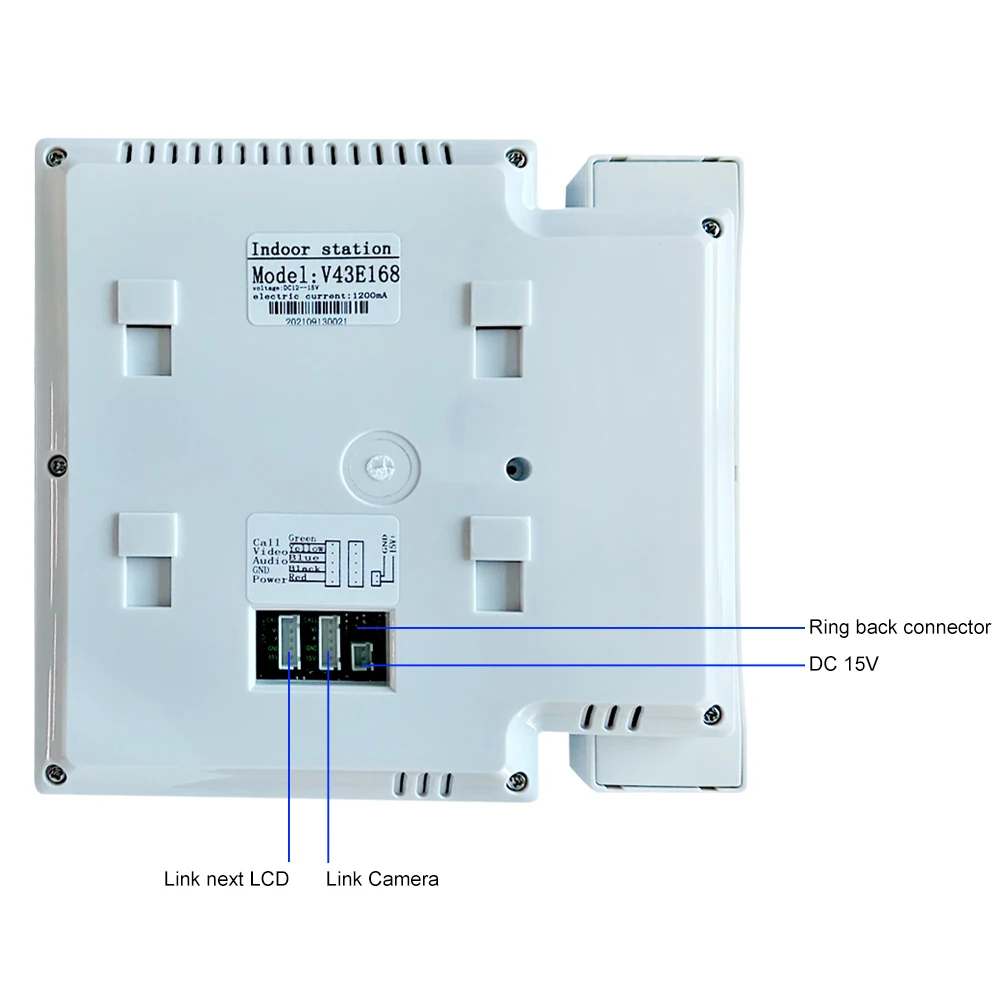

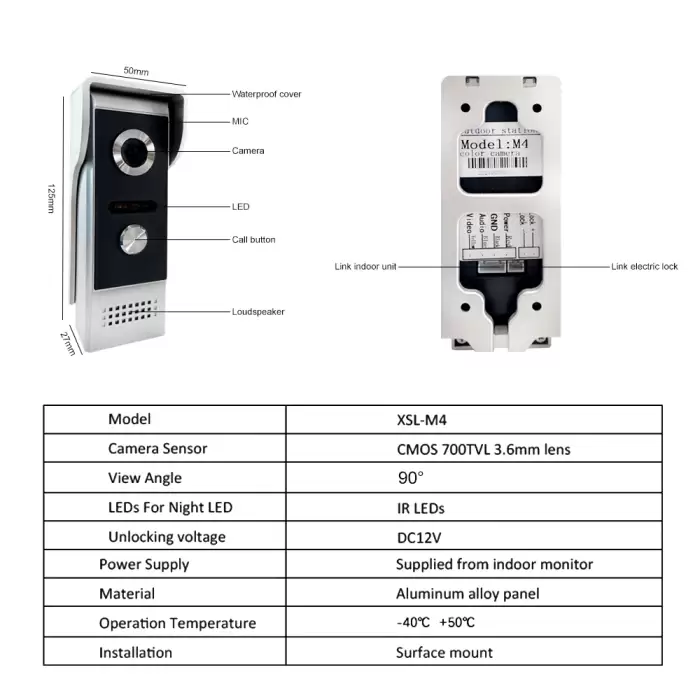

* There is a 4-wire system connection. Use a 4-core cable to connect the outdoor camera and monitor.

The maximum distance can reach 100 meters. Different distances and cables of different diameters are used. Please check the following to select the corresponding cable. (We will send you a 5-meter cable for testing, for a longer cable, you need to buy it yourself or contact us when installing)

Most video door phones in the market have night vision features, but not intelligent. Some use infrared lights, you can only see black/white images at night(Not clear image); some use white light led, and the lights will turn on once someone presses the call button even in daytime(not humanized).

This video door phone adopts a different design. The outdoor unit embeds an intelligent IR sensor and 6 led lights, the IR sensor can control the LEDs according to illumination intensity. At night or at low light status, the 6 led lights will turn on automatically and allows you can still see color image. During the daytime, the 6 led lights will not turn on. It is a brilliant design.

Electrical lock and indoor Unlock, make the house safer

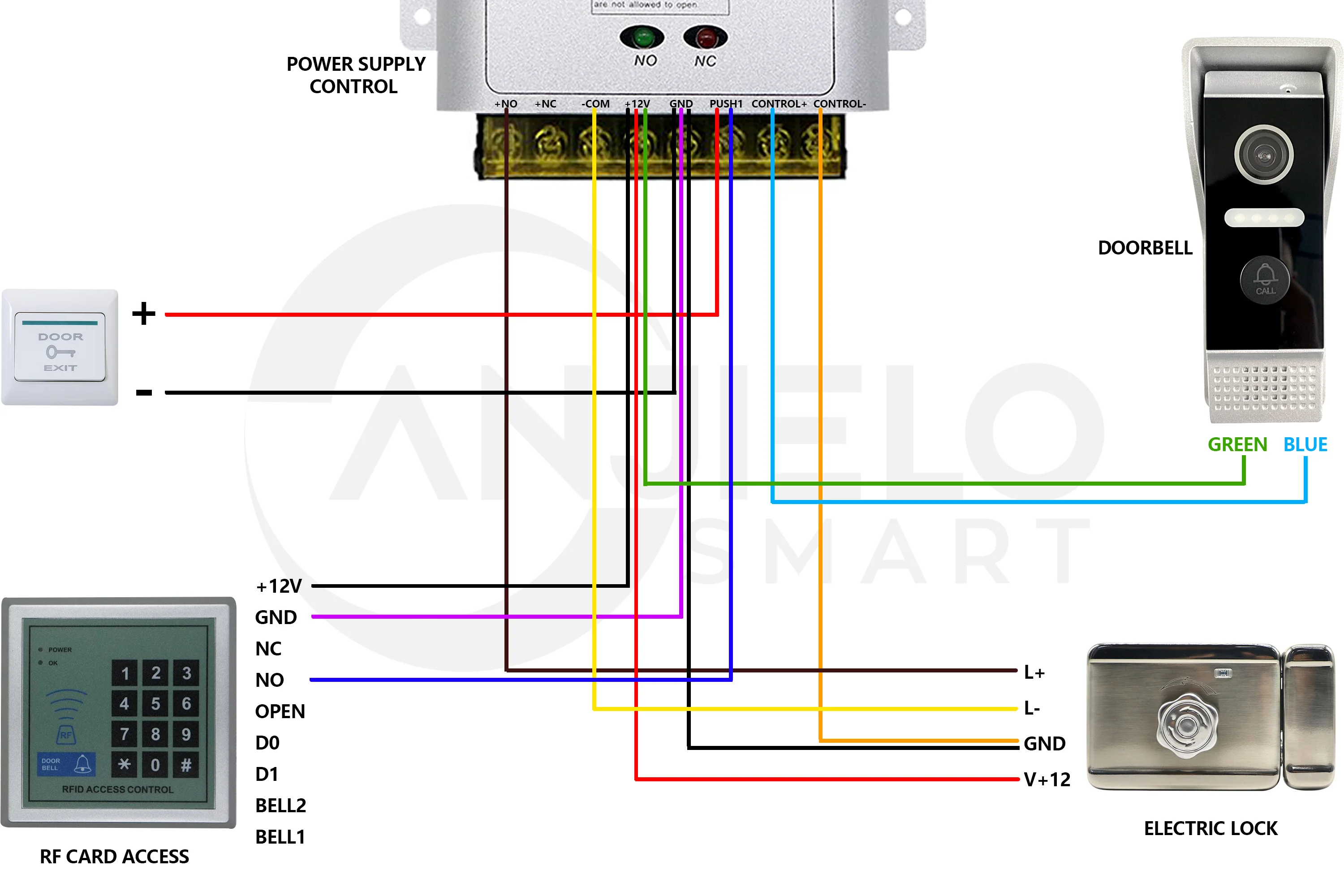

This door phone can work with a 12V electrical lock, so you can connect an electrical lock to this system. With this function, you don't need to go to the door to unlock your guest, you just need to press unlock button on the monitor. It will bring great convenience for you and your family members.

(This electric lock is not included if you need please feel free to contact us. )

Applications

This door phone system can be widely used in villas, office, private house, and another place that needs intercom. It is not only an intercom system but also a home security system.
