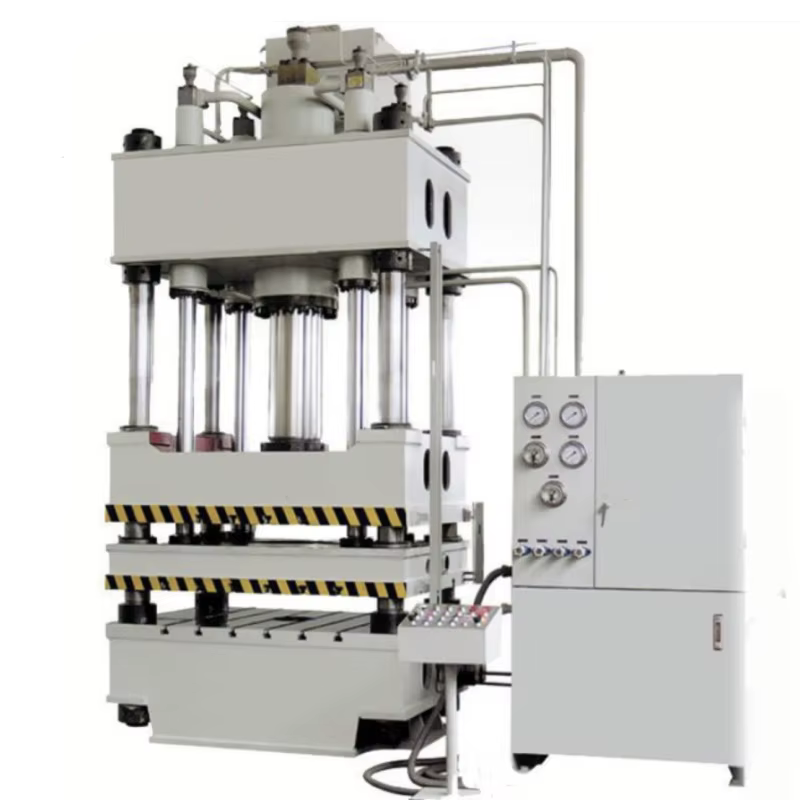

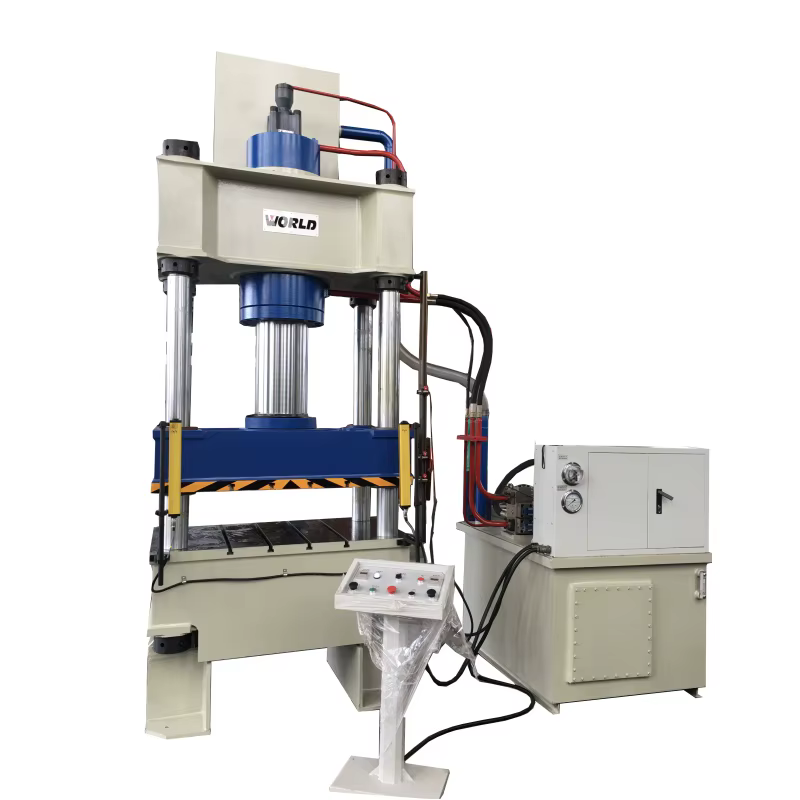

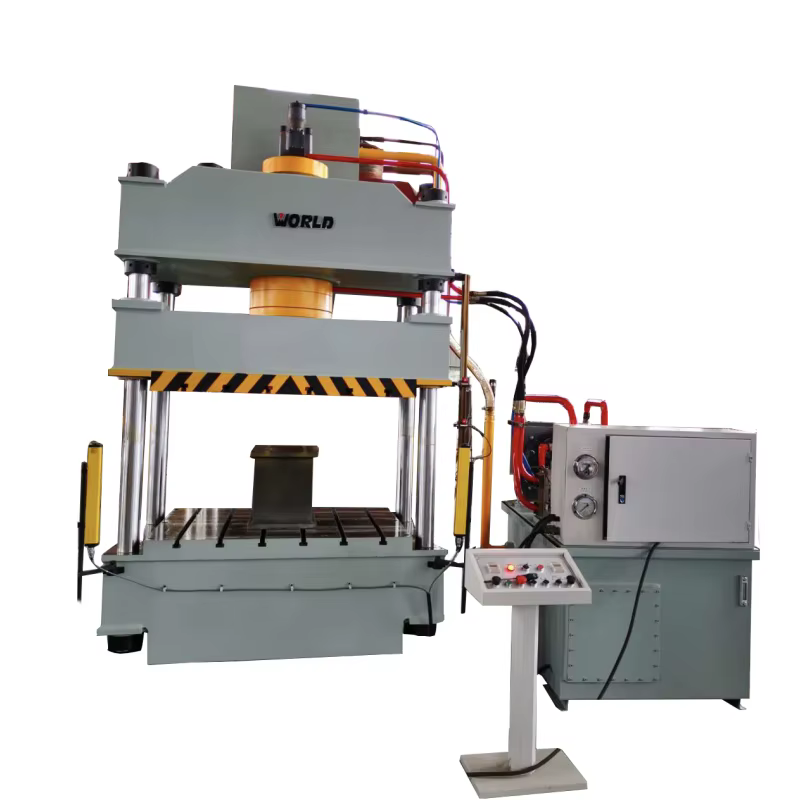

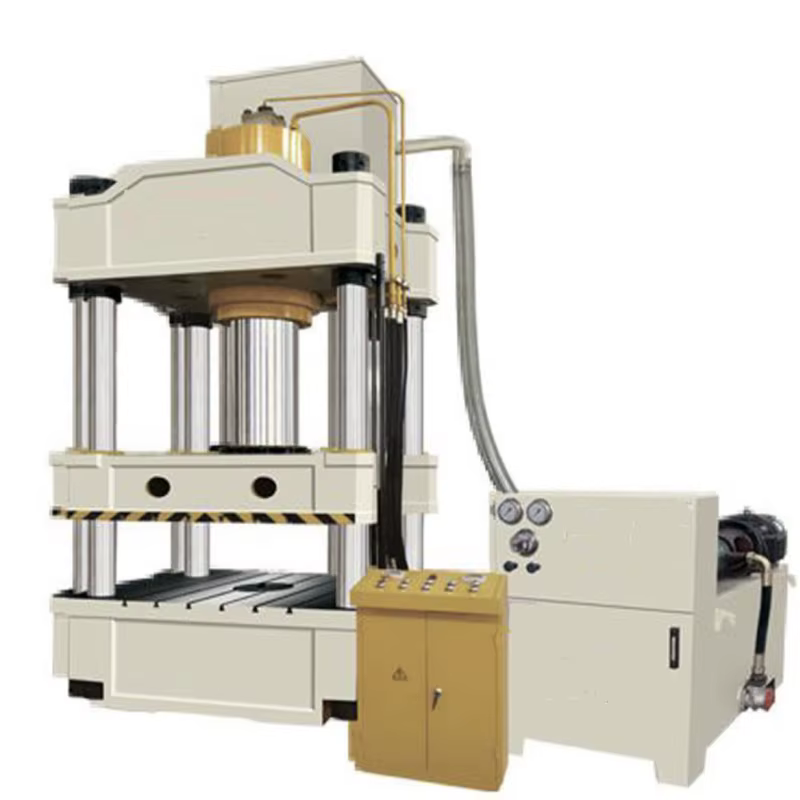

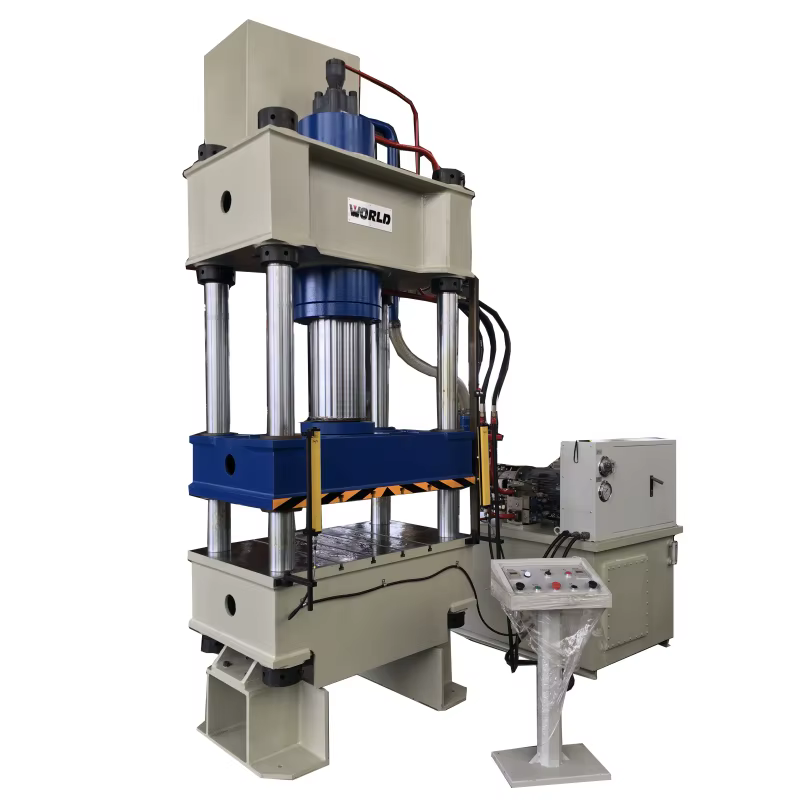

Main Features of four column hydraulic press machine YW32-200:
1. Structure: it consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing.
2. Hydraulic System: The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.
3. Electrical Control System: an independent electric cabinet and a centralized control panel.
4. Operation: Two working modes as inches and semi-automatic strokes.
5. Security: The emergency stop button can stop the machine immediately. The slide has Limit Switch on both up and down of the work table. Hydraulic support safety circuit is arranged in the cylinder piston inside of the hydro-cylinder.
Main Specifications of hydraulic press:
|
No. |
Parameter |
Unit |
YW32-200 |
|
|
1 |
Nominal Force |
kN |
2000 |
|
|
2 |
Return Pressure |
kN |
360 |
|
|
3 |
Cushion knock-out force |
Ton |
50 |
|
|
4 |
Stroke of cushion(optional) |
mm |
300 |
|
|
5 |
Stroke of slide |
mm |
700 |
|
|
6 |
Max. Daylight |
mm |
1100 |
|
|
7 |
Speed of slide |
Idle down |
mm/s |
160 |
|
|
|
Working |
mm/s |
7-24 |
|
|
|
Return |
mm/s |
120 |
|
8 |
Table/Slide size |
L-R |
mm |
1100 |
|
|
|
F-B |
mm |
1100 |
|
9 |
Motor Power |
kW |
15 |
|
