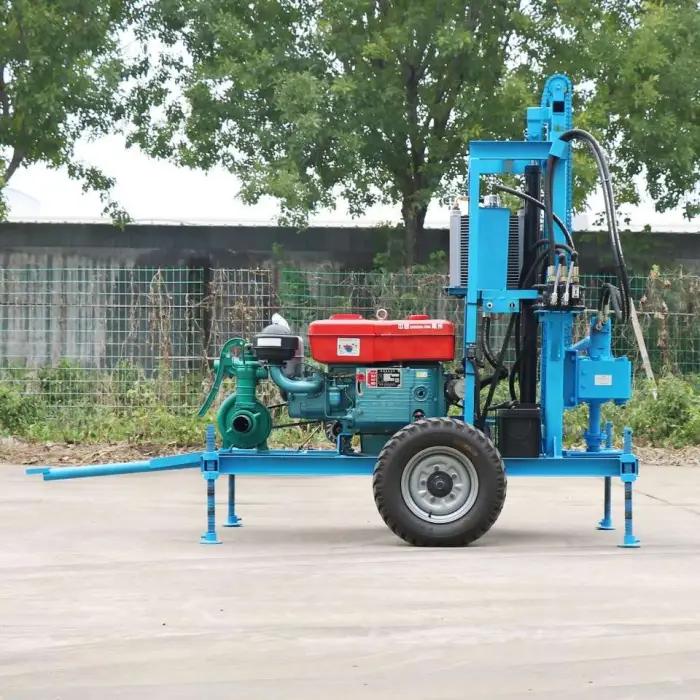

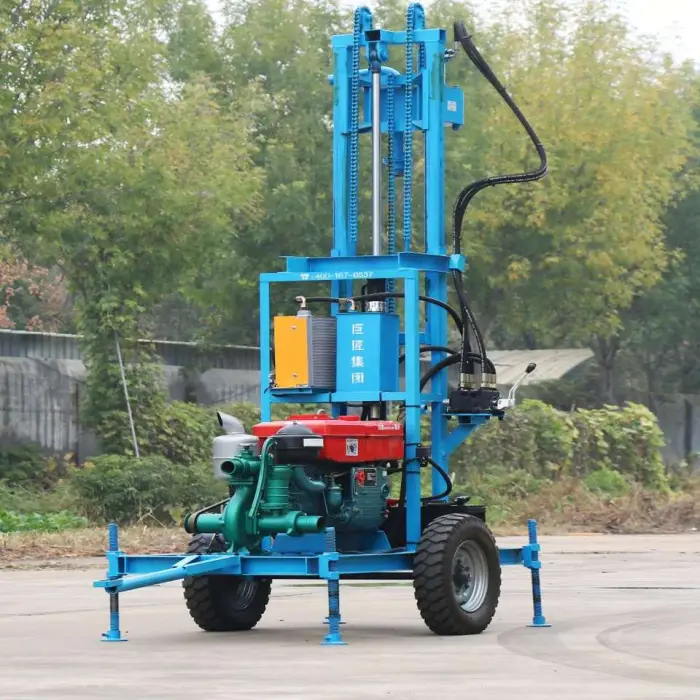

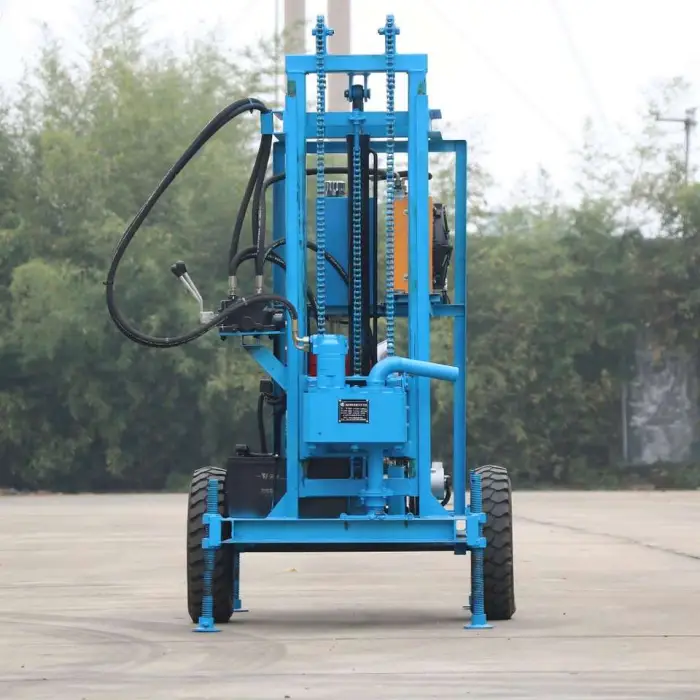

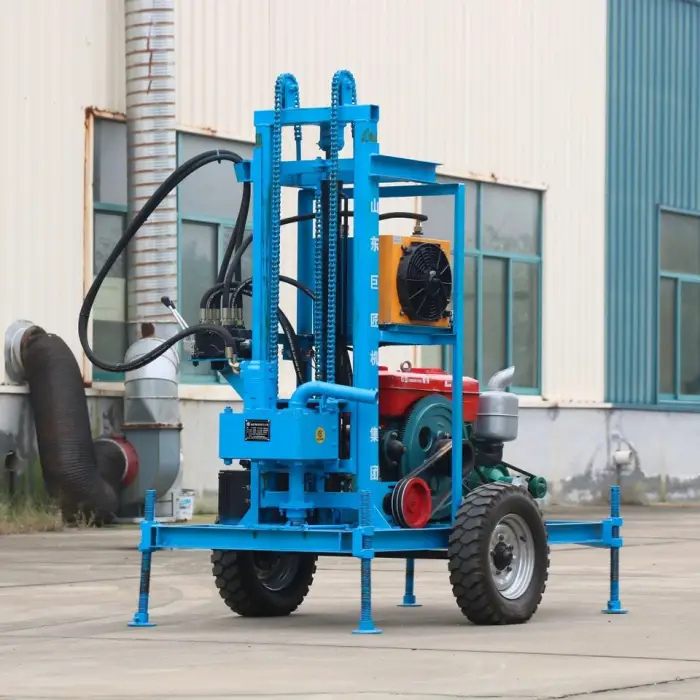

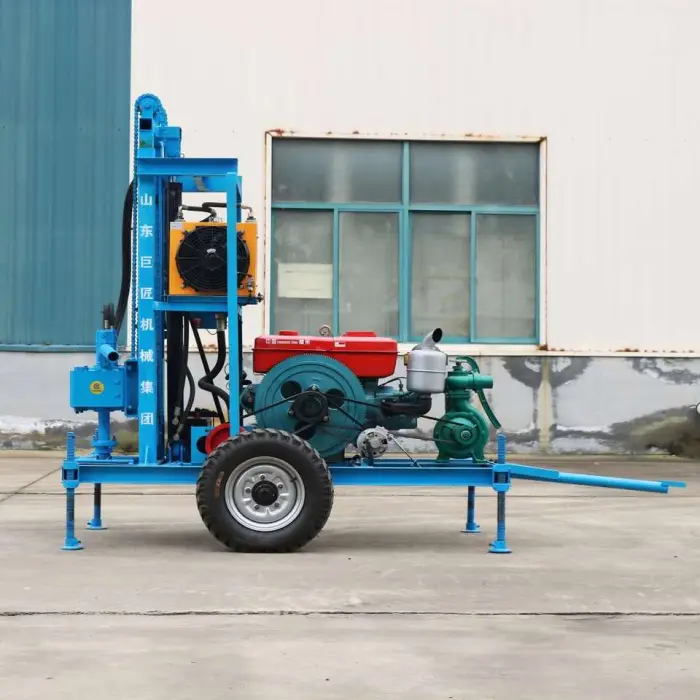

This wheeled diesel hydraulic water well drilling rig is built for borehole work up to 120m, making it suitable for civil water wells, farm irrigation, garden wells and home-use applications. Its compact wheeled design and full hydraulic system help teams move, position and operate the rig more easily on site.
Key Features & Benefits
- Drills up to 120m deep with an 80-300mm hole diameter range, giving you flexibility for a variety of water well applications.
- Full hydraulic system supports smoother, more efficient drilling operation.
- Diesel-powered setup with engine and motor core components for practical on-site use.
- Wheeled tyre traction and tricycle-mounted mobility make the rig easier to move and position where needed.
- High-power hydraulic motor with forward and reverse functions improves control during drilling.
- Suitable for soil layer, quicksand, soft rock and clay conditions, helping cover common ground conditions.
- Convenient electric start and easy-to-operate design reduce operator effort.
- Built-in high-efficiency water pump assists with slag removal during drilling work.
Specifications
| Product Type | Water well drilling rig |
| Model Number | SJCY, SJCY-C, SJCY-S |
| Usage | Water well |
| Maximum Drilling Depth | 120m |
| Drilling Diameter | 80-300mm |
| Power Type | Diesel |
| Power Options | 22HP (16.41kW), 25HP (18.64kW), 32HP (23.86kW) |
| Core Components | Engine, motor |
| Working Principle | Full hydraulic system |
| Weight | 560kg |
| Dimensions (L x W x H) | 1900 x 980 x 1800mm |
| Mobility | Wheeled tyre traction / tricycle mounted |
| Primary Applications | Farm irrigation, garden well, home use |
| Suitable Soil Conditions | Soil layer, quicksand, soft rock, clay |
| Starting Type | Electric start |
| Thermal Management | Equipped with radiator for continuous work |
| Slag Removal | Built-in high-efficiency water pump |
| Motor & Control Features | High-power hydraulic motor, forward and reverse |
| Warranty | 1 year |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
A practical choice for buyers needing a mobile, diesel-powered borehole drilling rig with hydraulic operation and clearly defined drilling capacity.
