The TBK 2202 Fold PCB Fast Diagnosis Infrared Thermal Imaging Analyzer is a specialist diagnostic tool designed to help mobile phone repair technicians identify abnormal heat patterns on circuit boards quickly and visually. Ideal for workshops handling smartphone motherboard repairs, it uses close-range thermal imaging to make potential hotspots easier to locate than with conventional visual inspection alone. The standout advantage is its detailed colour thermal display, which highlights temperature differences across fine PCB areas so technicians can focus their troubleshooting more efficiently. Its folding stand design also makes it a practical bench tool for busy repair environments.
Key Features & Benefits
- Infrared thermal imaging for PCB diagnosis: View heat distribution across a motherboard to help pinpoint suspicious hot areas during fault finding.

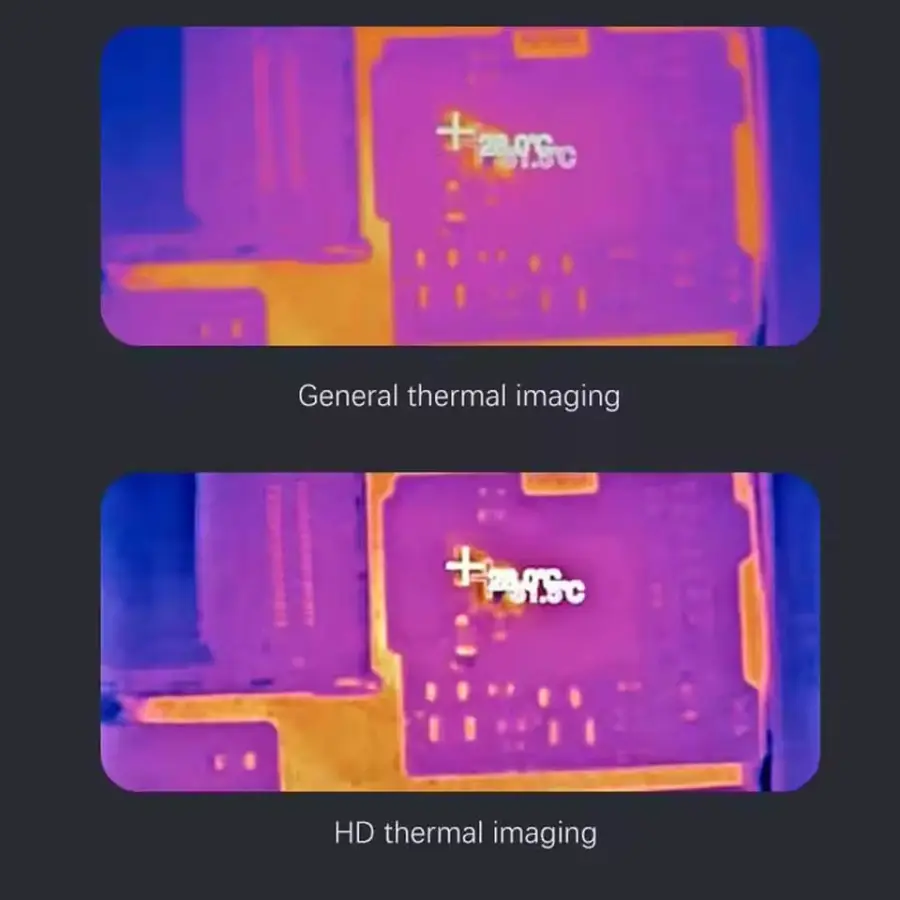

- HD thermal image display: The enhanced thermal view shown in the images reveals finer board detail, helping technicians inspect compact component zones with greater confidence.

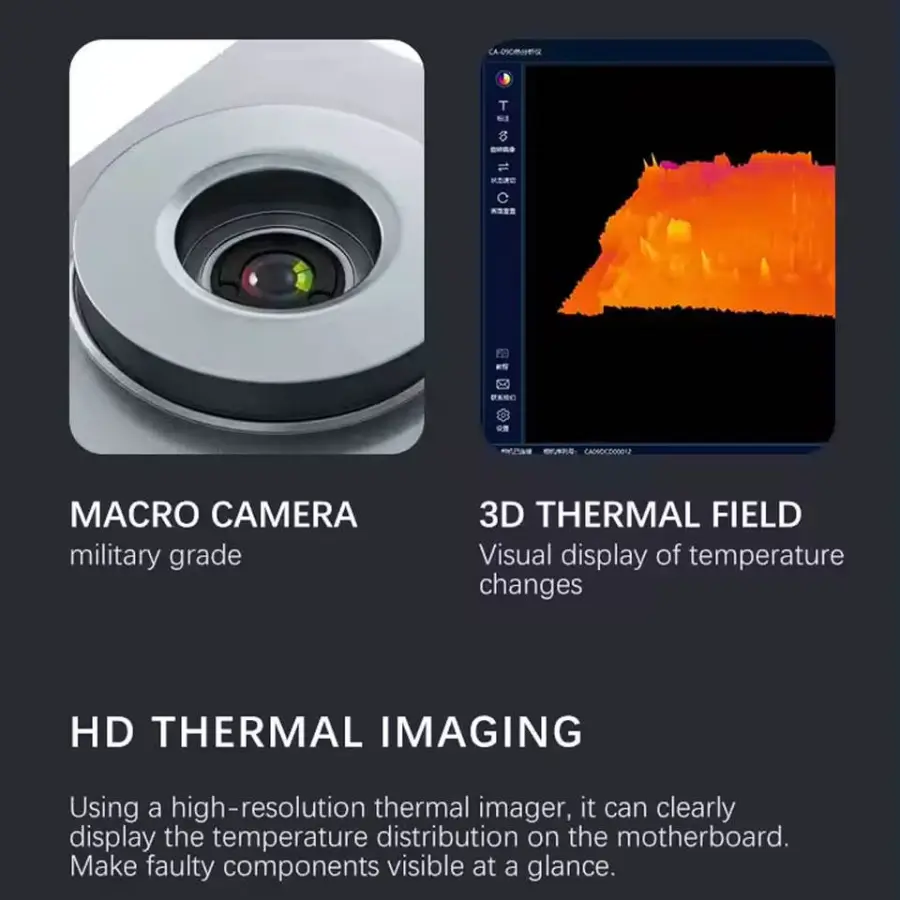

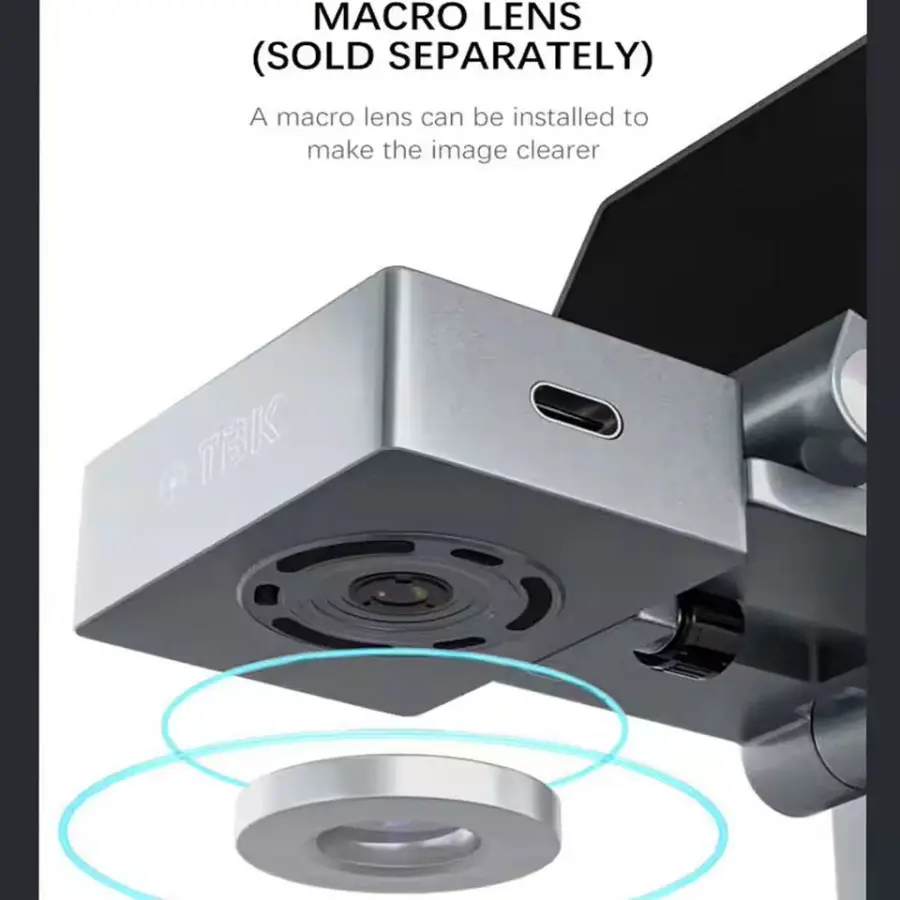

- Macro camera arrangement: Built for close-up motherboard work, allowing small electronic areas to be viewed through a dedicated thermal imaging setup.

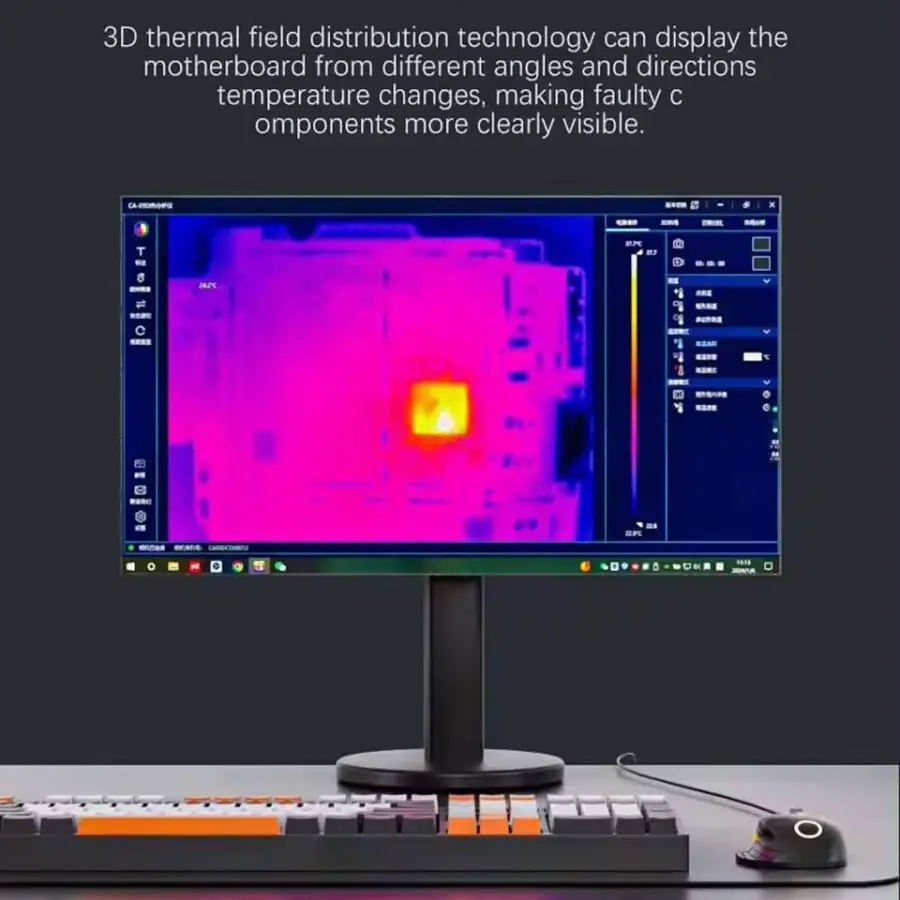

- 3D thermal field visualisation: The displayed software view presents temperature changes as a raised thermal field, making heat variations more intuitive to assess.
- Fast visual fault tracing: Bright heat signatures stand out against cooler board areas, helping reduce the guesswork involved in locating possible short circuits or overheating components.
- Adjustable viewing position: The articulated camera and phone holder assembly can be positioned over the work area for a more convenient inspection angle.
- Phone-mounted thermal display: The angled holder keeps a compatible smartphone display clearly visible while you work on the board beneath it.
- Stable desktop workstation: A wide, flat base supports a secure on-bench setup for precision electronics diagnostics.

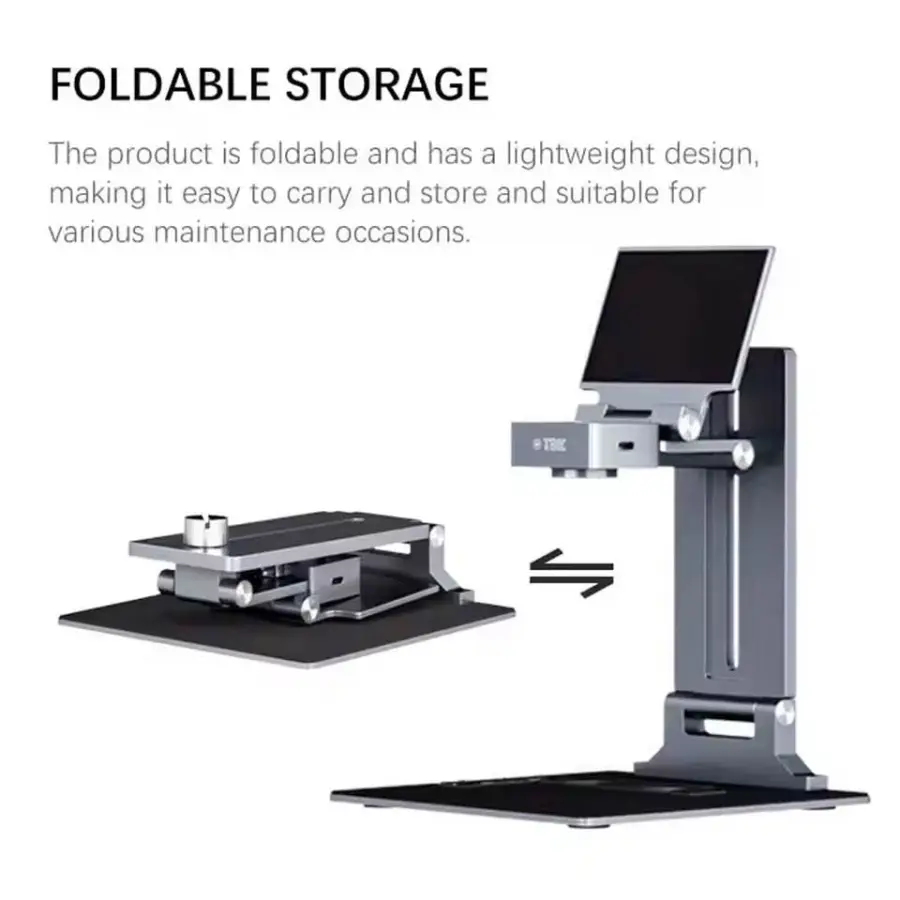

- Foldable storage design: The stand folds down into a lower-profile form, making it easier to store between jobs or transport to different service stations.
Design & Build
The TBK 2202 has a clean, professional grey and black finish suited to modern electronics repair benches. From the photos, the unit features a broad dark base plate, a rigid upright support, a sliding vertical adjustment channel and robust-looking metal-style pivot points with contrasting silver controls. The upper assembly combines a compact camera housing with an angled smartphone cradle, while the neatly integrated layout keeps the viewing equipment above the working surface. When not in use, the upright and arm mechanism fold down towards the base for tidier storage.
Ideal For
This PCB thermal imaging analyser is an excellent fit for mobile phone repair shops, independent technicians, electronics service centres and training workstations. Use it when diagnosing mobile phone motherboard faults, investigating abnormal power draw, checking for localised overheating, or comparing temperature activity around chips and small components. It is especially useful where densely packed smartphone boards make traditional fault tracing slow and difficult. The clear thermal presentation can also support more organised repair workflows by helping technicians visually assess a board before moving on to component-level testing and repair.
Why Buy From BestDealz
BestDealz makes specialised B2B sourcing simpler for South African repair businesses. We help local buyers access practical workshop equipment without the unnecessary complexity of handling international product sourcing alone. Whether you are equipping a new technical bench or upgrading an established mobile repair operation, BestDealz offers a convenient route to the tools your business needs.
Bring sharper thermal insight to your motherboard diagnostics with the TBK 2202 Fold PCB Infrared Thermal Imaging Analyzer. Add this space-saving, professional-looking diagnostic station to your repair toolkit and make every inspection more visual, focused and efficient.
