LY BGA Soldering Station ZM-R7220A R7220C New Original BGA Repair Equipment with Optical Alignment Upgraded Version 5300W

Take precision board-level repair to a more professional level with the LY ZM-R7220A BGA Soldering Station, an upgraded 5300W rework solution designed for demanding electronics technicians. Built for workshops handling BGA chip replacement, motherboard rework and intricate PCB repairs, it combines a secure adjustable board fixture with a large optical alignment display. The standout benefit is clear, magnified visual positioning, helping operators line up fine-pitch components with greater confidence before rework.

Key Features & Benefits

• Optical alignment display: The large external monitor presents a close-up view of the work area, making tiny BGA balls, pads and chip edges easier to inspect and align.
• 5300W BGA repair capability: High-power rework equipment suited to professional environments where reliable, repeatable PCB repair processes matter.
• Adjustable PCB clamping system: Multiple sliding rails, positioning blocks and clamps help hold boards securely while you work, reducing movement during delicate operations.
• Fine-positioning controls: The mechanical adjustment arrangement allows careful placement of the board and component within the working area.
• Integrated touchscreen panel: A central colour touchscreen and clearly arranged physical controls provide a practical operator interface at the front of the machine.
• Dedicated emergency-stop button: The prominent red emergency-stop control is easy to reach from the main operating position.
• Focused task lighting: Flexible gooseneck lights on either side of the work zone improve visibility when inspecting PCB surfaces and component placement.
• Stable bench-mounted format: Four adjustable suction-style feet support secure placement on a suitably robust electronics repair bench.
• Detailed viewing for quality control: The screen is shown displaying highly magnified chip and board imagery, supporting close visual checks during BGA repair work.

Design & Build

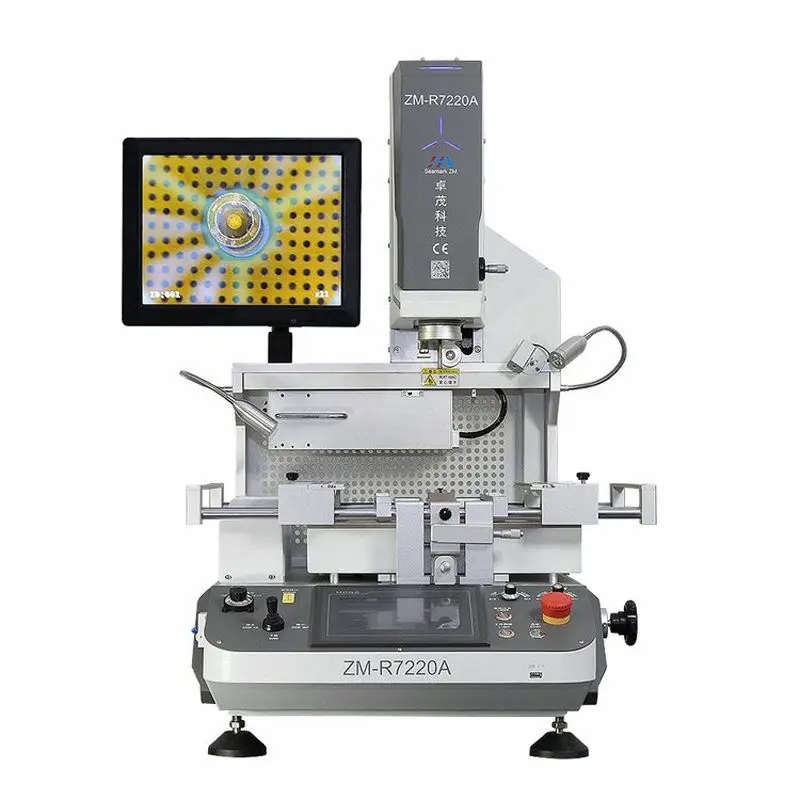

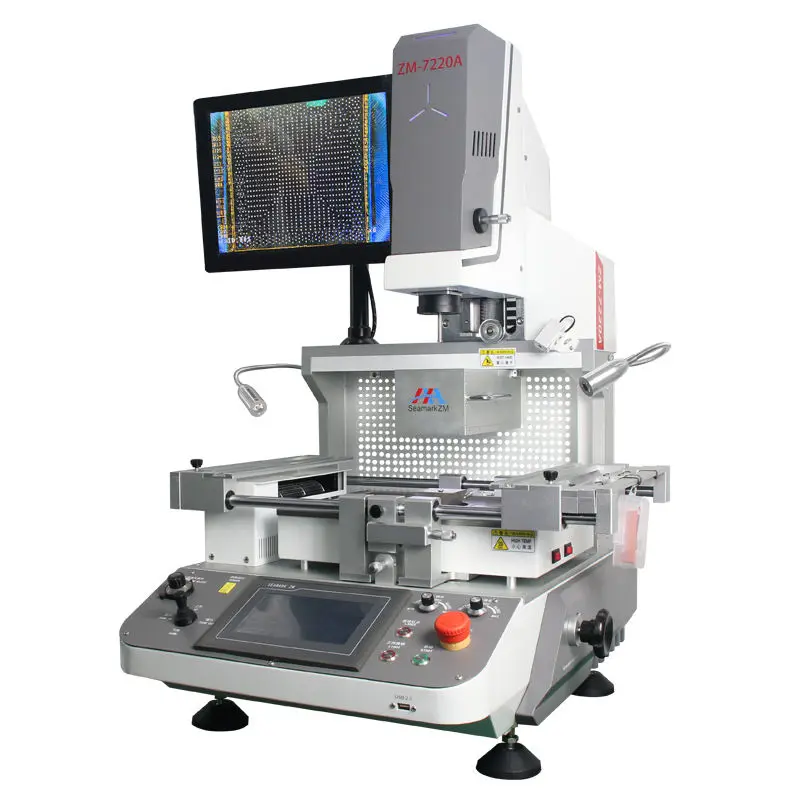

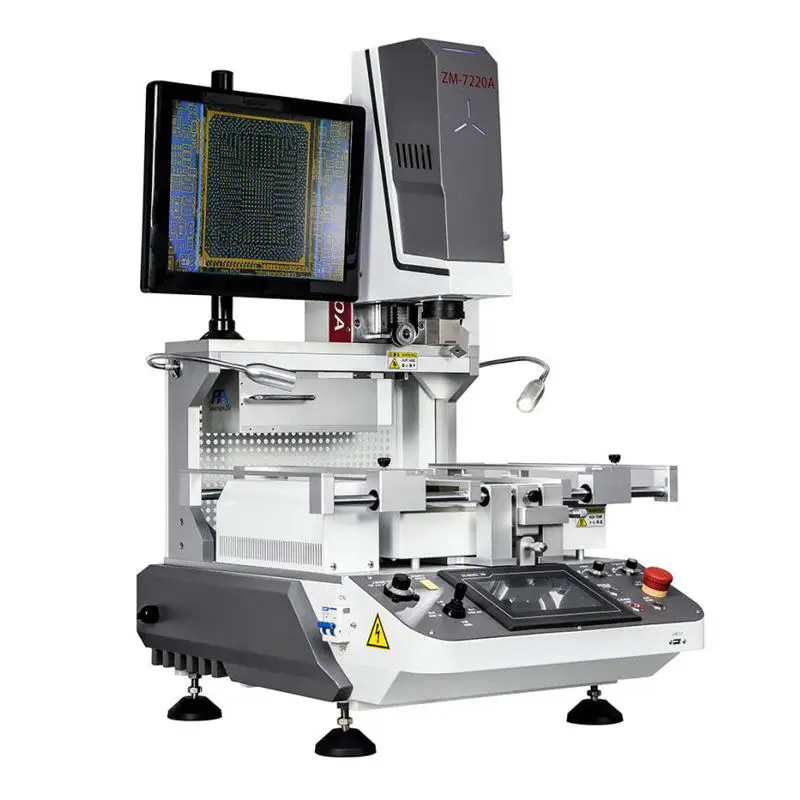

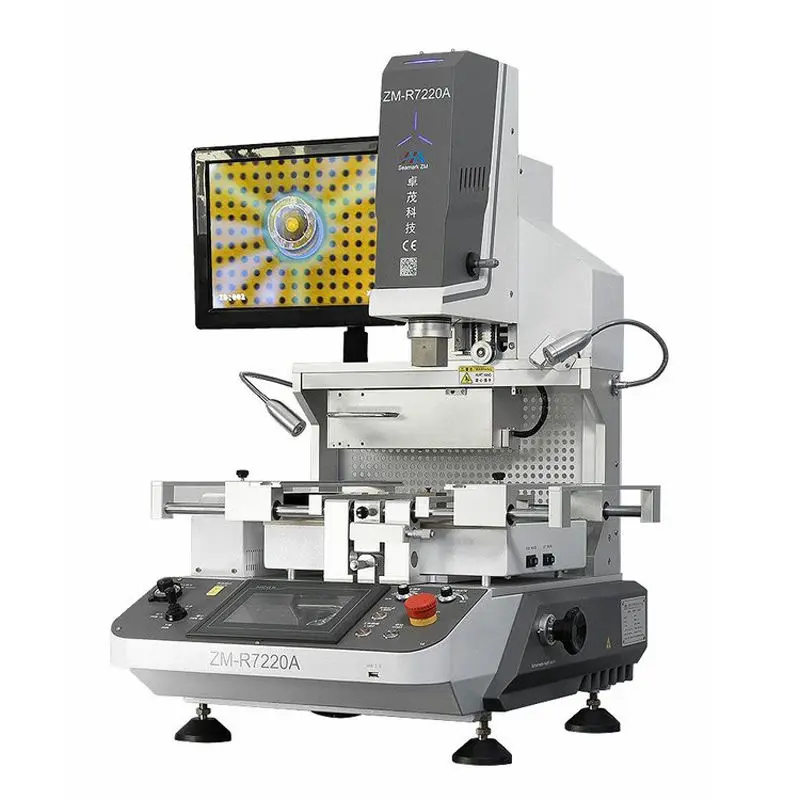

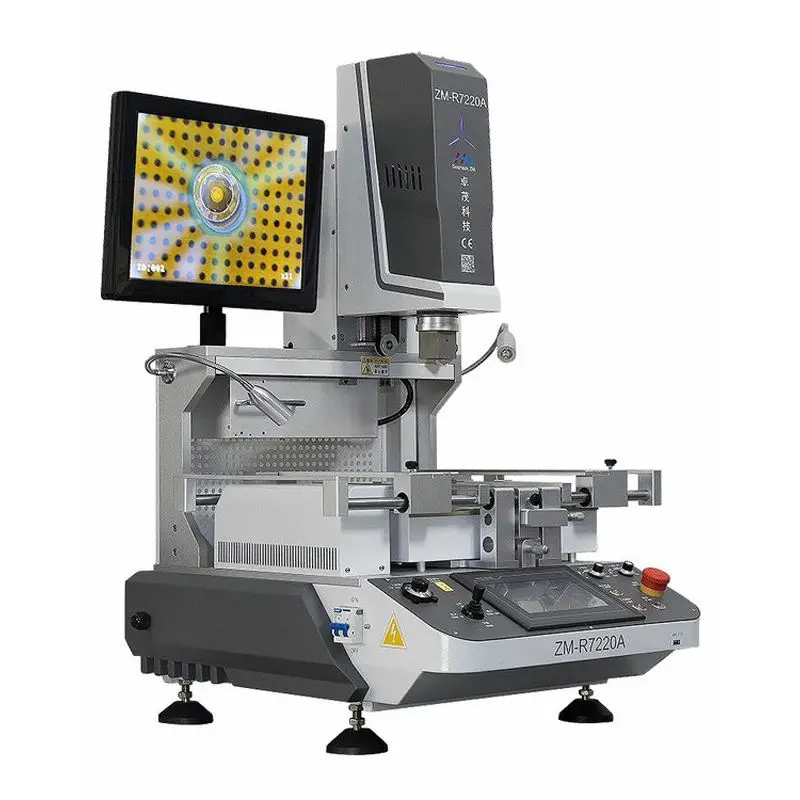

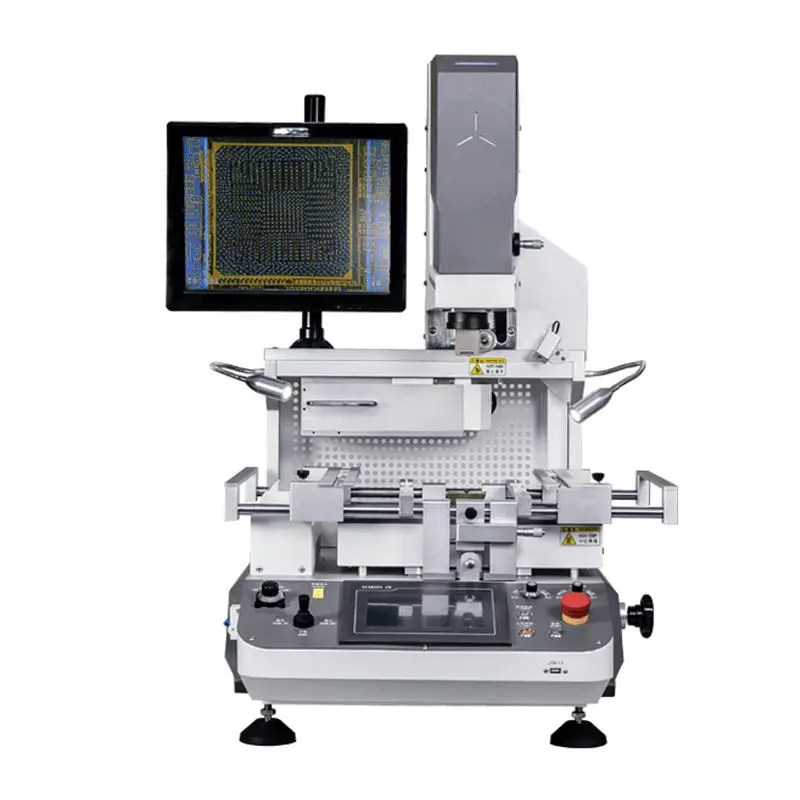

The ZM-R7220A has a substantial, industrial-style desktop build in a clean silver, light grey and charcoal colour scheme. Its enclosed base houses the main control area, while the raised frame creates an organised working zone for the optical head and adjustable PCB holder. The front panel combines a recessed touchscreen, rotary-style controls, switches and the emergency-stop button in a logical layout. A wide black-bezel monitor is mounted alongside the upper assembly for comfortable viewing, while the linear rails, clamping blocks and visible adjustment knobs give the station the purposeful feel of specialised BGA rework equipment.

Ideal For

This optical alignment BGA soldering station is ideal for electronics repair centres, motherboard repair specialists, laptop and desktop service workshops, mobile-device board repair teams, industrial maintenance departments and technical training facilities. It is particularly suited to work involving BGA ICs and compact, high-density PCBs where accurate chip positioning and magnified inspection are essential. For businesses upgrading from basic hot-air tools to a more controlled workstation, this is a serious addition to a professional repair bench.

Why Buy From BestDealz

BestDealz helps South African businesses source specialised B2B equipment without the usual complexity of importing. We focus on practical products for professional use, making it easier to access advanced electronics repair machinery for your workshop, technical department or service operation. Choose BestDealz for trusted sourcing and a streamlined import experience tailored to SA buyers.

Equip your workshop with the LY ZM-R7220A optical alignment BGA rework station and bring greater visibility, control and confidence to precision PCB repair. Order from BestDealz today.
