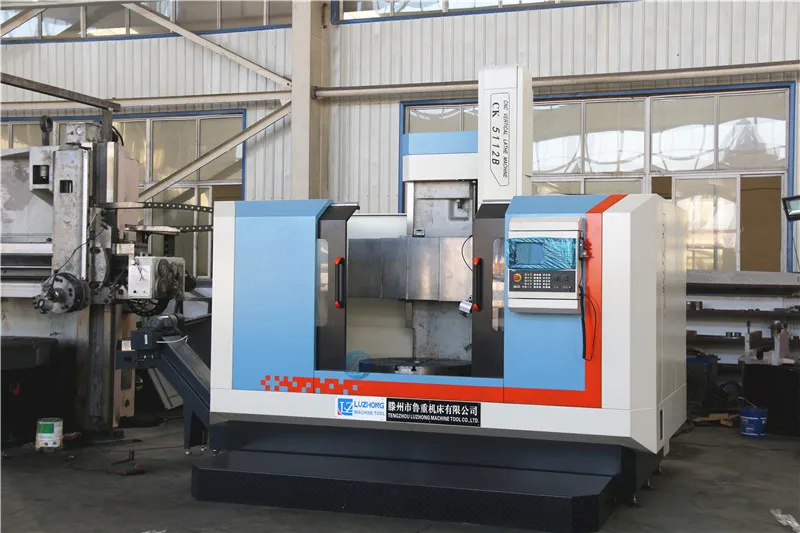

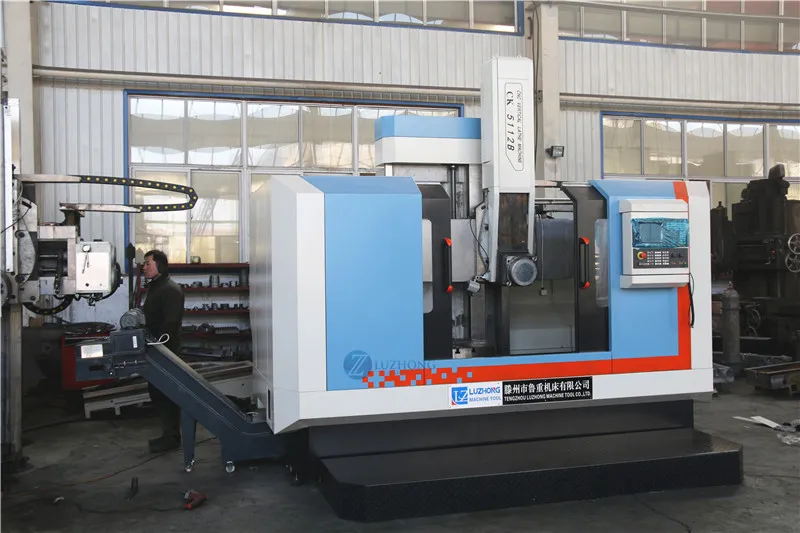

1. This vertical CNC lathe is a advanced equipment of high performance, widely technology range, high production efficiency. It
lathe is apply to machining of all industries. Rough and finish machining of inside&outside cylindrical surface, circular conical
surface, end face, grooving, arc surface, sorts of curve face and thread
2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to
centering to centering. Axial direction adopts CC hydrostatic guideway, worktable have the features of high running accuracy, big
bearing capacity, small thermal deformation.
3. The lathe feed adopts AC servo motor, ball screw for drive. Rail head of cross beam equipped with close shield, increase the
safety and the amenity
4. The lathe feed adopts AC motor drive, 16 steps main spindle speed change mechanism and realize the worktable range of speed
5. CNC system can select import or domestic according to user needs, CK51A series not have cover housing, CK51B series have cover
housing, chip rmoval and cooling linquid recovery device
6. Vertical column, cross beam guideway all use high-frequnency, quenching, and the quenching hardness is HRC48-55
Technical specifications:
Specification | Unit | CK5120A |
Max. Turning diameter | Mm | 2000 |
Table diameter | Mm | 1800 |
Max. height of workpiece | Mm | 1250/1400 |
Max. weight of workpiece | T | 8 |
Max. Torque of table | KN.m | 40 |
Range of table speeds | r/min | 3.2-100 |
Max. cutting force of rail head | KN | 22 |
Swivel of rail head | ||
Range of feed rates | Mm/min | 0.1-500 |
Horizontal travel of railhead | Mm | 1050 |
Ram trave of rail head | Mm | 800 |
Raoid traverse od tool head | Mm/min | 4000 |
Elevating speed of cross rail | Mm/min | 440 |
Height of tool bar section | Mm | 30*40 |
Power of main motor | KW | 30 |

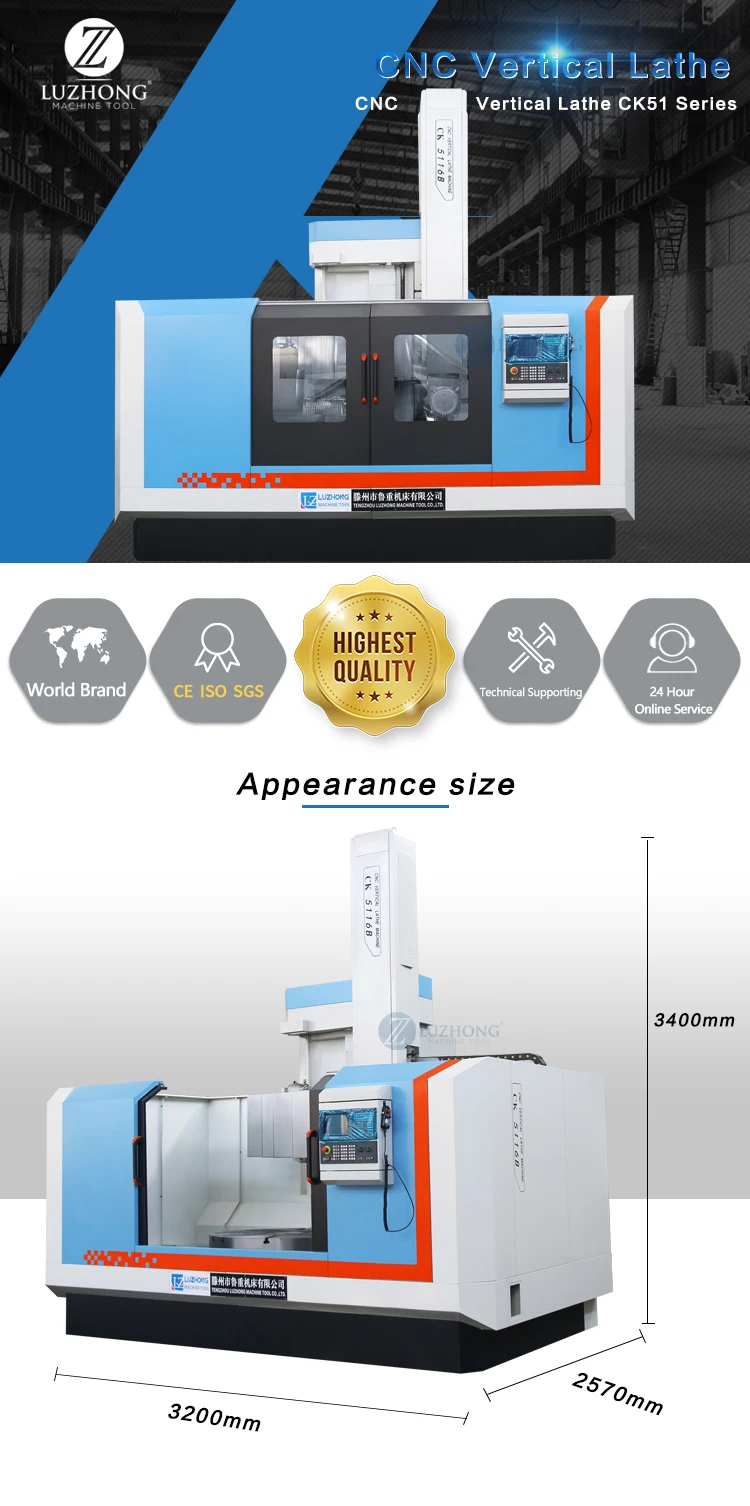

Overall dimensions | Mm | 3200*2800*4000 |
Weight of machine | t | 17/18.5 |
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
