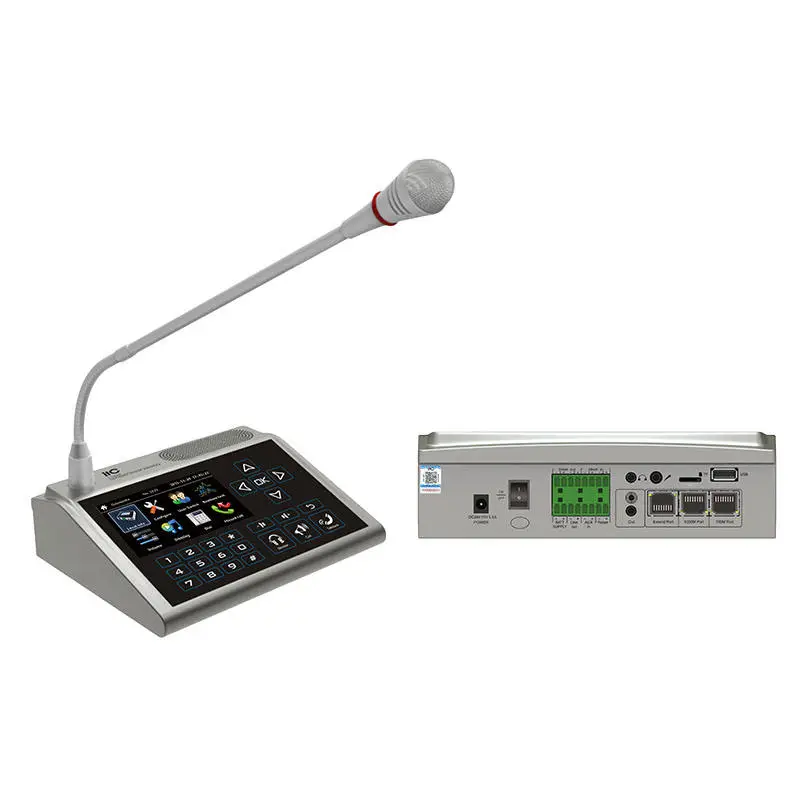

HOT Sale Paging Microphone IP Network Paging Mic, with 4.3" LCD Touch Screen
Ship the goods to our Shenzhen warehouse
Ask the supplier to deliver to our hub below. We consolidate, inspect and ship to South Africa for you.
Estimate the SA delivery cost
Paste the supplier's quoted price + your shipment specs. Results update live below.
Estimated landed cost in South Africa
Enter the supplier price + dimensions above to see the breakdown.
Live estimate. Values recalculate as you type — Product × FX + customs duty & handling + 15% VAT + freight. Variance vs final binding quote is typically < 5% and only changes if the supplier's pro-forma differs from your inputs.
How Class B sourcing works on BestDealz
One platform · Verified suppliers · Trade Assurance · End-to-end logistics — fully landed in SA
Request your quote
Click the Request Quote button above and tell us the quantity you need. No supplier dealings — our sourcing team handles everything for you.
Get a full landed quotation in < 24 hours
We send you a detailed all-in landed price in Rand — product + freight + SARS customs + 15% VAT — with nothing hidden.
Approve & pay once in Rand
Happy with the quote? Pay a single all-in amount under Trade Assurance and we place & manage the order.
We import to your door
We handle factory pickup, shipping, SARS clearance and SA last-mile — delivered directly to your address.
Discussion chairm
Paging Microphone T-7802
Embedded software: microphone call control embedded software V1.32
Description:
The professional desktop intercom microphone is mainly used in the main control room, duty room or leadership office. It can be applicable to business paging, intercom and monitoring, etc.
Feature:
* Brand-new desktop design, 8-inch capacitive touch screen, high-end and beautiful appearance.
* 4.3-inch true color LCD display, graphical UI interface, full touch screen control.
* Graphical volume adjustment interface to adjust the volume of network programs, local MIC, and local AUX.
* Real-time display of status information such as program broadcast, two-way intercom, timed broadcast, equipment operation, IP address, MAC address, and so on; support stopping the program broadcast with one button.
* The Luna cloud-based server has high security and excellent stability, and supports 7×24 hours of continuous work.
* Standard dual network interfaces support exchange extension mode and redundant backup mode; full rate connection is up to 1000M.
* Rich network access methods, including DHCP automatic allocation access, ADSL intelligent dial-up access, fixed IP address access, etc.
* Support 485 extension port of RJ45, and various control panels are optional to achieve more control extensions and function extensions.
* Support help and intercom ring tones, voice reporting, lighting, text and other prompt methods, support one-key answer, one-key monitoring, hands-free calls, and missed call information recording function.
* Built-in 8GByte SSD, support remote management on the server, support background download in limited network speed or automatic download during idle time, reduce the burden of the network; the media library files support offline automatic playback function.
* Integrated USB and Micro SD (TF) card interfaces, support up to 4T USB storage devices and 128G/SDXC card, achieve local playback of the audio files, and can broadcast on demand the contents of USB, TF card and media library on the terminals within the authority scope.
* Built-in 2W full-range intercom speaker provides clear and powerful sound; super and hyper cardioid microphone ensures clear calls without interference.
* Integrated 24Bit professional sound card, enabling enthusiast audio playback, and the audio stream is up to 768kpbs.
* 1 AUX audio input, 1 group of MIC inputs, support user-defined priority rank.
* 2 short-circuit outputs, 2 short-circuit inputs; support flexible short-circuit triggering customized task function; can realize local media playback, local receiving channels, broadcasting, fire alarm, recording, sending messages and emails, and pop-up prompts; can realize electronic lock, fire control, monitoring and other linkage applications of the third party equipment and the platform.
* Communication protocol: TCP/IP, UDP, IGMP(multicast), IETF SIP; audio format: MP3, WMA, WAV.
* Support the voice change function, the call initiator can choose to change his voice, which meets the intercom needs of special places.
* Support short-circuit restoring the factory settings, which is convenient for system maintenance and management to the greatest extent.
* Support the switching of multiple users, support customized user function permissions.
* Support viewing equipment status and managing equipment information through the system background WEB.
* Wide voltage power supply of mains + DC24V standby power supply with zero switching time provide the best energy supply for the 7×24 hours of continuous work of the terminal.
* Support the PA system remotely upgrading the terminal firmware, without the need to upgrade the terminal locally, reducing the work intensity of maintenance personnel.
Specification:
Model
T-7802
Network interface
Standard RJ45 input
Transmission rate
1000Mbps/100Mbps
Communication protocol
TCP/IP, UDP, IGMP( multicast), IETF SIP
Audio format
Mp3, WMA, WAV
Audio mode
16-bit CD sound quality
Sampling rate
8K~48KHz
AUX input
1 group
AUX sensitivity
350mV
MIC input
1 group(microphone pole or rear headphone 3.5mm interface input is optional)
MIC sensitivity
10mV
Line out output
1 group
Line output level/impedance
1000mV/470Ω
Microphone type
Cardioid directional electret
Headphone output interface
3.5mm interface
Headphone load
32Ω
USB
Support up to 4T USB device; load <0.1A
SD
Support up to 128G/SDXC card
Total power consumption
20W
Standby power consumption
<3W
Frequency response
80Hz~16KHz -3dB/+1dB
THD
≤1%
SNR
>65dB
Short circuit input
0V/3.3V, support dry contact input
Short circuit output
Maximum 1A/30VDC dry contact output
Working voltage
~190-240V 50-60Hz(power adapter); DC24V/1.5A
Extended interface
1×RJ45 special device interface
Working temperature
5℃~40℃
Working humidity
20%~80% relative humidity, no condensation
Size
200×159×55mm (L×D×H)
Weight
1.05Kg
Rear Panel
Product Gallery
Technical specifications
| Type | Audio Conference System, Network Conference System, Video Conference System |
|---|---|
| Simultaneous Interpretation | No |
| Function | Voting |
| Item | Paging Microphone T-7802 |
| Sensitivity | -42dB±2dB |
| Frequency Response | 20-20KHz |
| THD | 0.1% @1KHz |
| Reference Sound-receiving Distance | 50-300mm |
| S/N Ratio | >96dB |
| Dimension Of The Appearance | 127x146x62mm |
| Net Weight | 0.9kg |
| Warranty | 3 years |
| Microphone Length | 420, 480 or 650mm |
| Packaging Details | Full-sealing package of Products: We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted. |
| Port of dispatch | Guangzhou, Shenzhen |
| Single volume | 0 cm³ |
| Single gross weight | 0.0 kg |
| Supply Ability | 10000 pieces per Month |
| SKU | 1600960316087 |
