Product Gallery

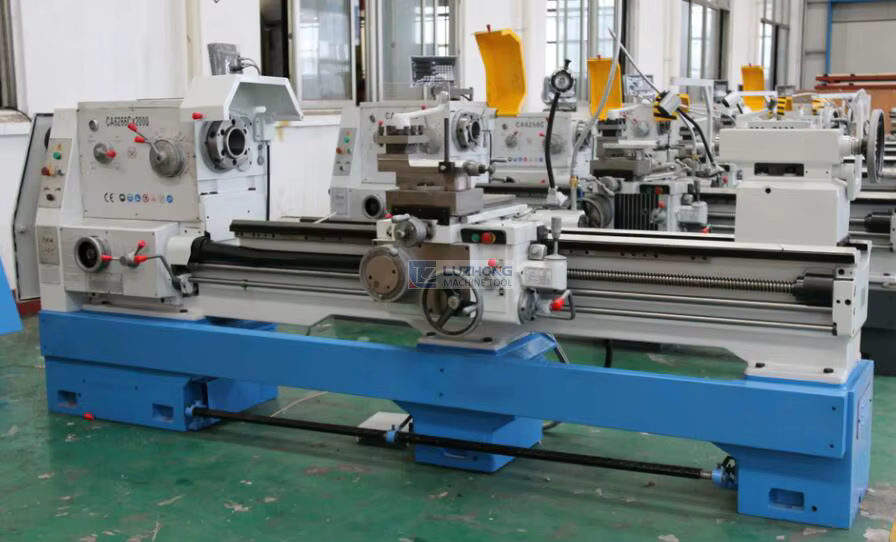

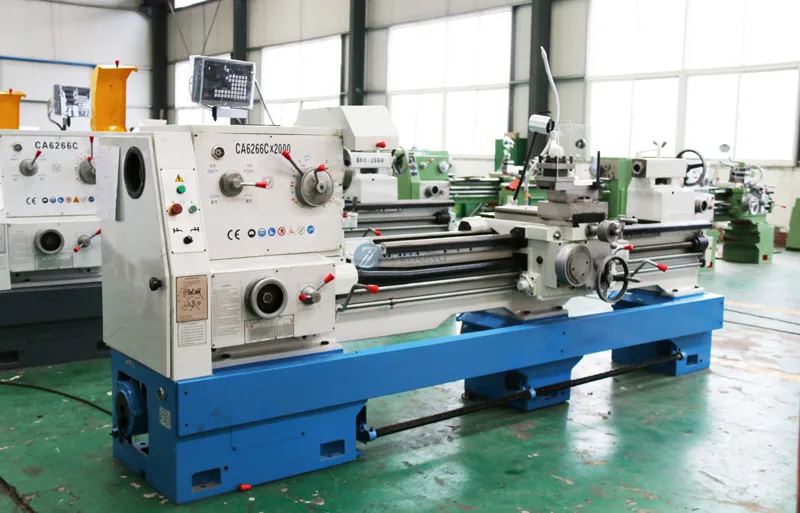

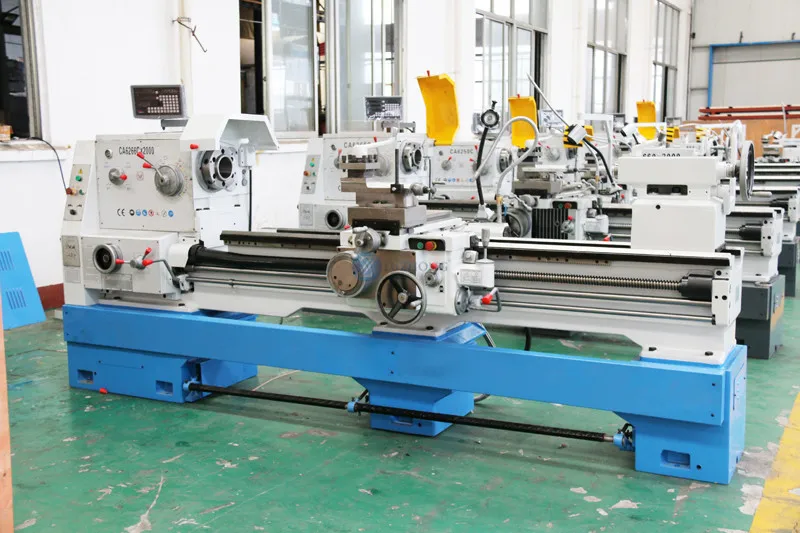

These lathe mahine can satisfy various turning for the light-duty big disc. And big diameter shaft work piece
-High speed dynamically balanced spindle, --using the latest machine tool building technology
-Solid cast iron structure--assuring the rigidity of bed, head stock and saddle.
-Stress relieved bed and induction hardened guideways --provide the machine with round rigidity and Longer life.
-precision ground bed slideways--gurantees high accuracy along the total length of the machine

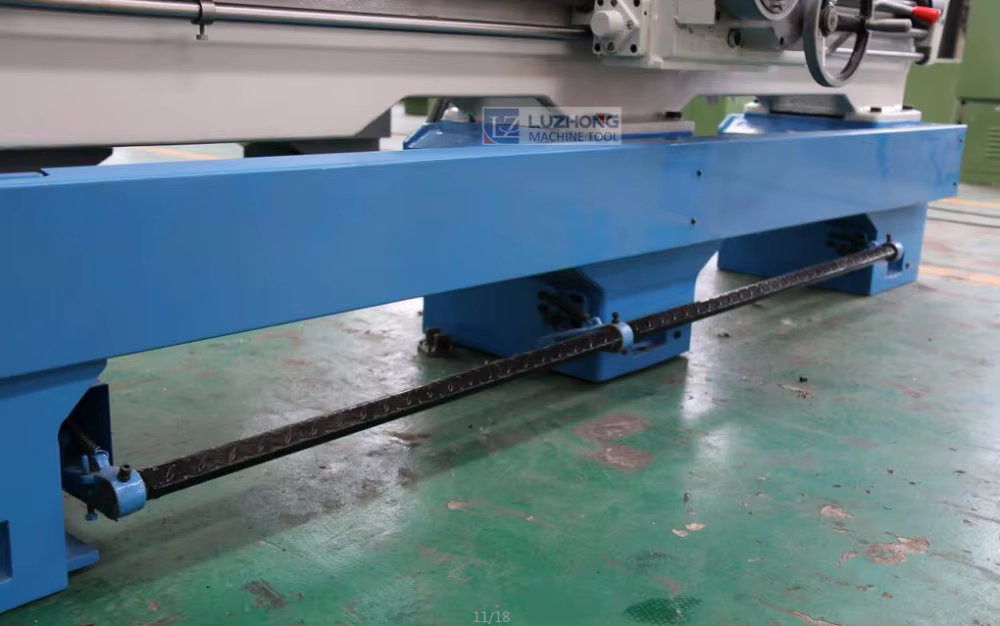

-extra heavy ribbed machine bed
-gears are hardened and ground
-large capacity of spindle bore 105mm
-wide range of diametric, inch, module, and metric threads

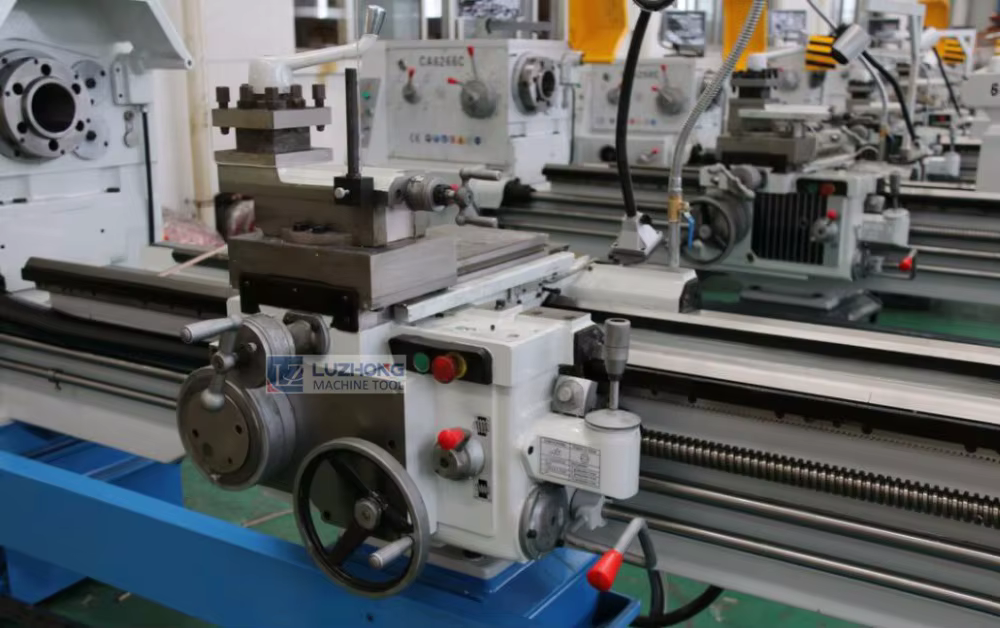

-joystick control for X and Z feed mounted directly to support
-indcution hardened and ground guideways
-one kind of high precision lathe machine
Specifications:
Model | CA6240 CA6240B | CA6250 CA6250B CA6250C | CA6261 CA6261B CA6261C | CA6266 CA6266B CA6266C | CA6280 CA6280B CA6280C | ||||||||
Max. swing over bed(mm) | 400 | 500 | 610 | 660 | 800 | ||||||||
Max. swing over carriage(mm) | 210 | 300 | 370 | 400 | 540 | ||||||||
Max. swing in gap(mm) | 630 | 720 | 830 | 880 | 1020 | ||||||||
Effective gap length(mm) | 210 | 210 | 210 | 210 | 210 | ||||||||
Max. length of work piece(mm) | 750 or 1000 or 1500 or 2000 or 3000 | ||||||||||||
Width of bed(mm) | 400 | ||||||||||||
Section of turning tool(mm) | 25 X25 | ||||||||||||
Spindle | Spindle speeds(r/min) | 11-1600(24steps) | |||||||||||
Hole though spindle(mm) | 52 (B-80 C-105) | ||||||||||||
Morse No.6 | |||||||||||||
Feed | No. of feeds | 64(kinds)(for each) | |||||||||||
Range of metric threads(kings) | (1-192mm)(44kinds) | ||||||||||||
Range of inch threads(kings) | (1-24tpi)(21kinds) | ||||||||||||
Range of module threads(kings) | 0.25-48(Module 39 kinds) | ||||||||||||
Range of diametral pitc threads(kinds) | 1-96DP(37kinds) | ||||||||||||
Tailstock | Max. tailstock spindle travel(mm) | 150 | |||||||||||
Tailstock spindle travel(mm) | 75 | ||||||||||||
Morse No.5 | |||||||||||||
Main motor(kw) | 7.5Kw(10HP) | ||||||||||||
Picking dimensions ( LxMxH mm ) | G.W/ N.W. | ||||||||||||
750 | 2440X1140X1750 | 2100/1900 | 2170/2060 | 2300/2180 | 2380/2260 | 2520/2400 | |||||||
1000 | 2650X1140X1750 | 2190/2070 | 2260/2140 | 2380/2250 | 2570/2450 | 2720/2560 | |||||||
1500 | 3150X1140X1750 | 2350/2220 | 2420/2290 | 2580/2450 | 2810/2640 | 2980/2800 | |||||||
2000 | 3650X1140X1750 | 2720/2570 | 2790/2640 | 2940/2800 | 3050/2880 | 3260/3080 | |||||||
3000 | 4850X1140X1750 | 3300/3200 | 3450/3300 | 3600/3450 | 3930/3690 | 4200/3890 | |||||||
