INTRODUCTION
This incredible super MIG was highly developed with Synergic Programs and Dual pulse functions. Intelligent digital signal processing. Water cooling. Separate wire feeder for 20 kg wire, flexible remote welding solution, 3 ph 400V. Versatile welding process for selections: MIG, MAG, MIG synergy, MIG single pulse, MIG double pulse, High speed MIG single pulse, High speed MIG double pulse, TIG, spot welding and MMA. Able to weld a broad range of materials like FeC, Er316, Er308, pure aluminum, Aluminium alloys, CuSi3, etc. Suitable wire diameter 0.8-1.6mm, 2T/4T, special 4T. Able to save/load 20 channels for desired welding processes. Rugged and robust construction, high efficiency and precise welding for demanding and quality welding job especially in heavy industry.

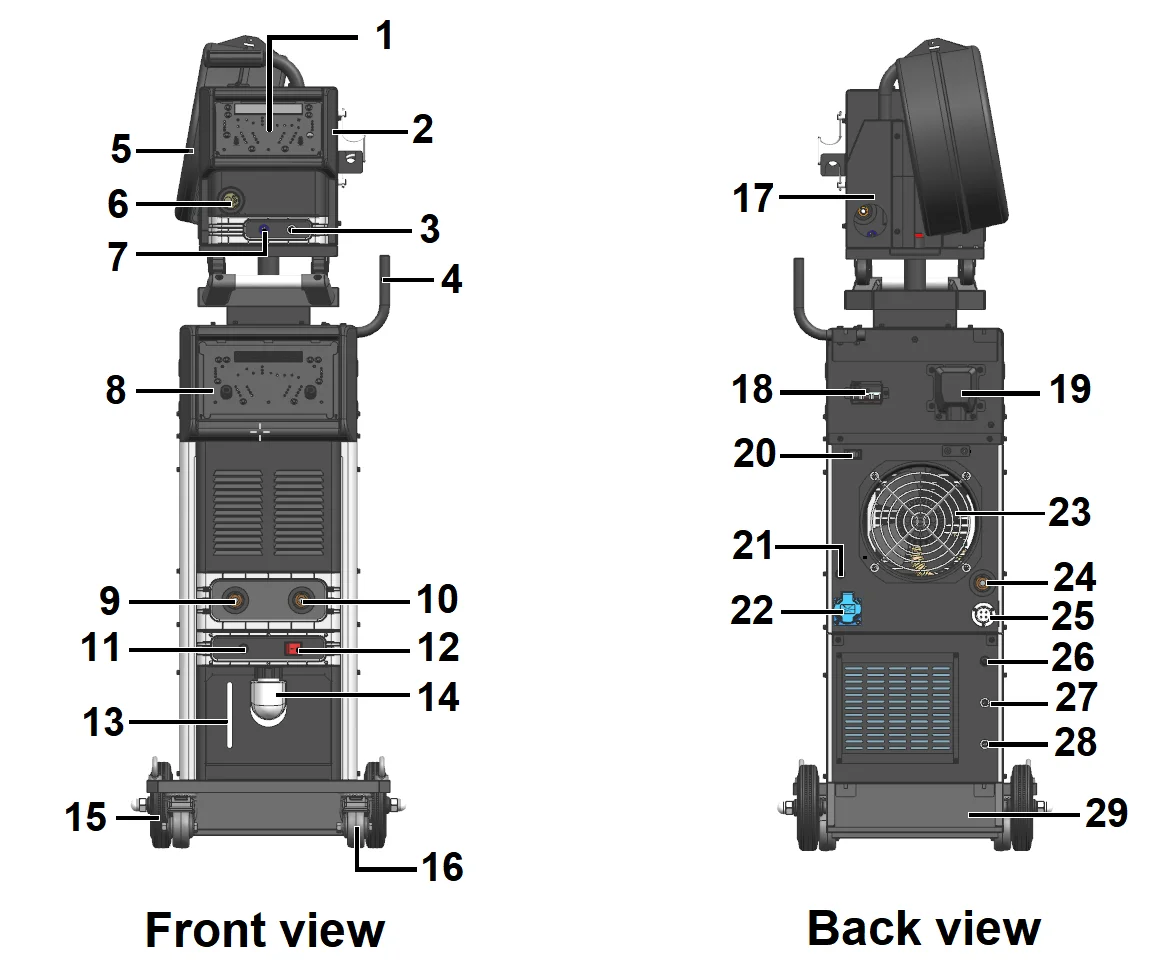

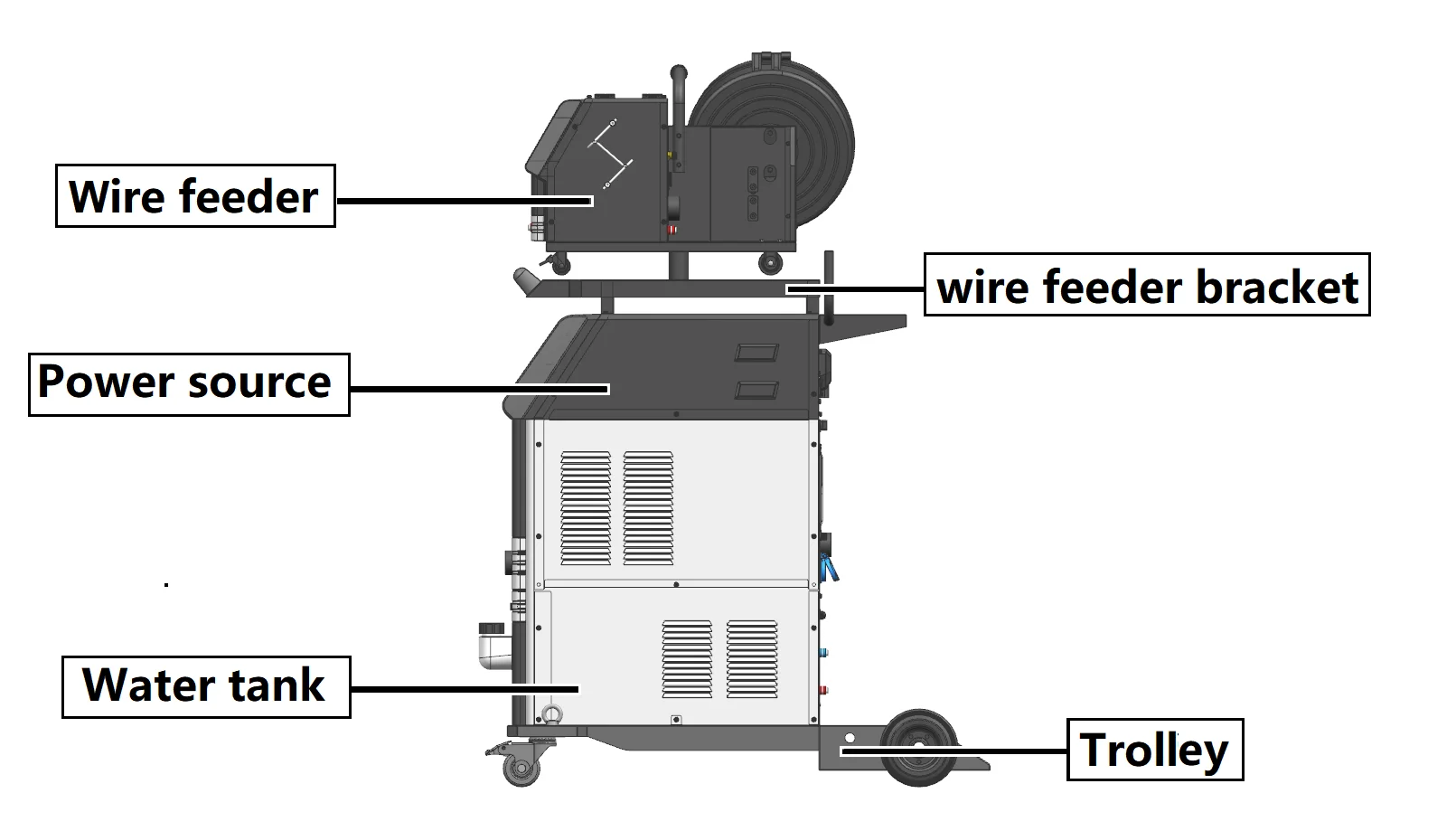

GENERAL VIEW
|
Front control panel of wire feeder |
16 |
Front wheel |
|
|
Wire feeder |
17 |
Wire feeder |
|
|
18 |
power switch |
||
|
4 |
hanger |
19 |
AC 380V input |
|
5 |
Wire spool |
20 |
Power output AC 36V |
|
21 |
Fuse 3A |
||
|
7 |
22 |
Output 230V |
|
|
8 |
Front control panel of power source |
23 |
Cooling fan |
|
24 |
Positive polarity “+” |
||
|
10 |
Negative polarity “-” |
25 |
7 Pin control cable socket |
|
11 |
Fuse 3A |
26 |
Power input AC 230V |
|
12 |
Power switch of water tank |
27 |
Input of water flow |
|
13 |
Window of water flow |
28 |
Output of water flow |
|
14 |
Water input |
29 |
Trolley |
|
15 |
Back wheel |
|
|

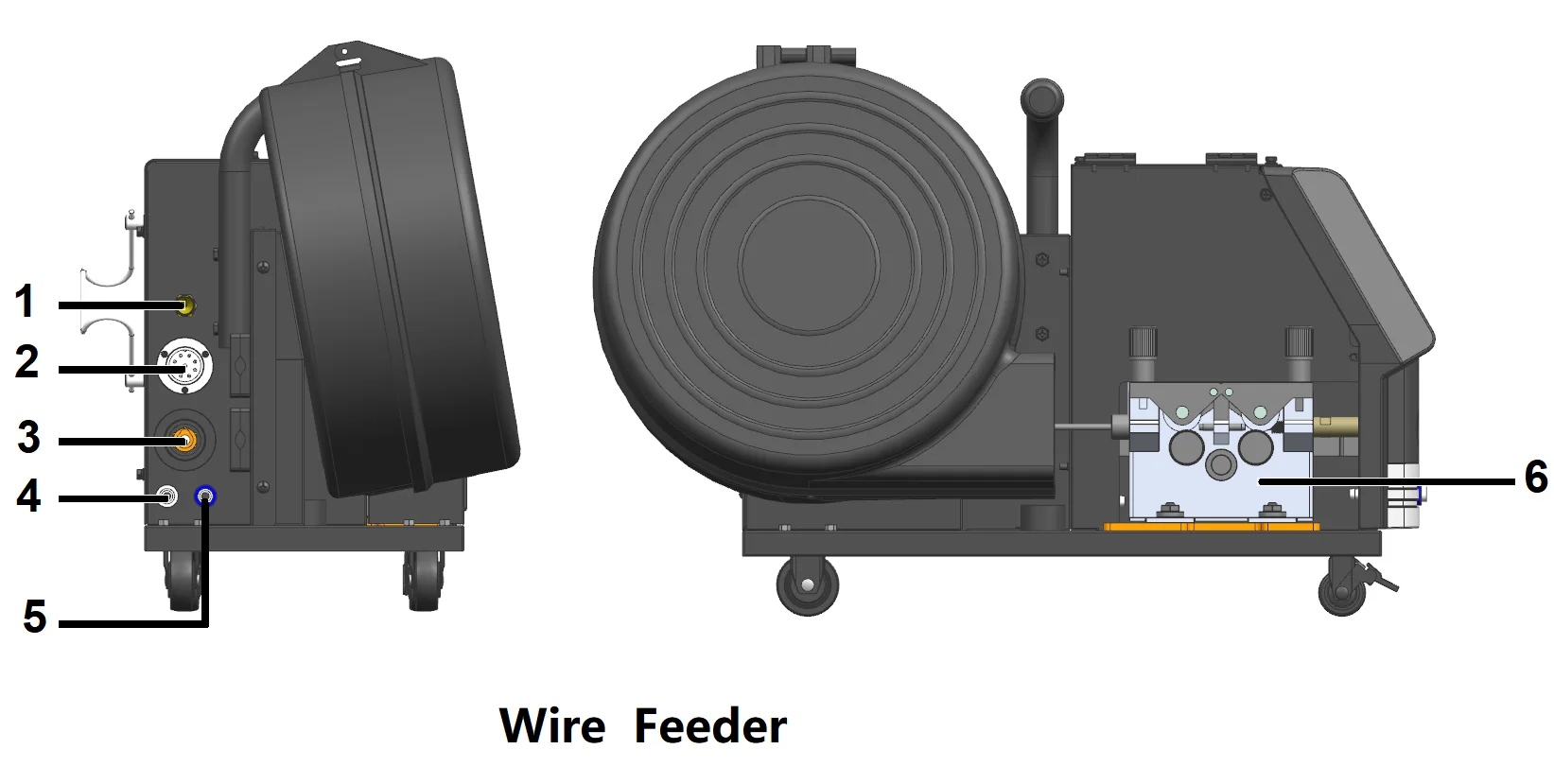

1 |
Gas in |
|
2 |
7 Pin control cable socket |
|
3 |
Positive polarity “+” |
|
4 |
Output of water flow |
|
5 |
Input of water flow |
|
6 |
Wire feeder |

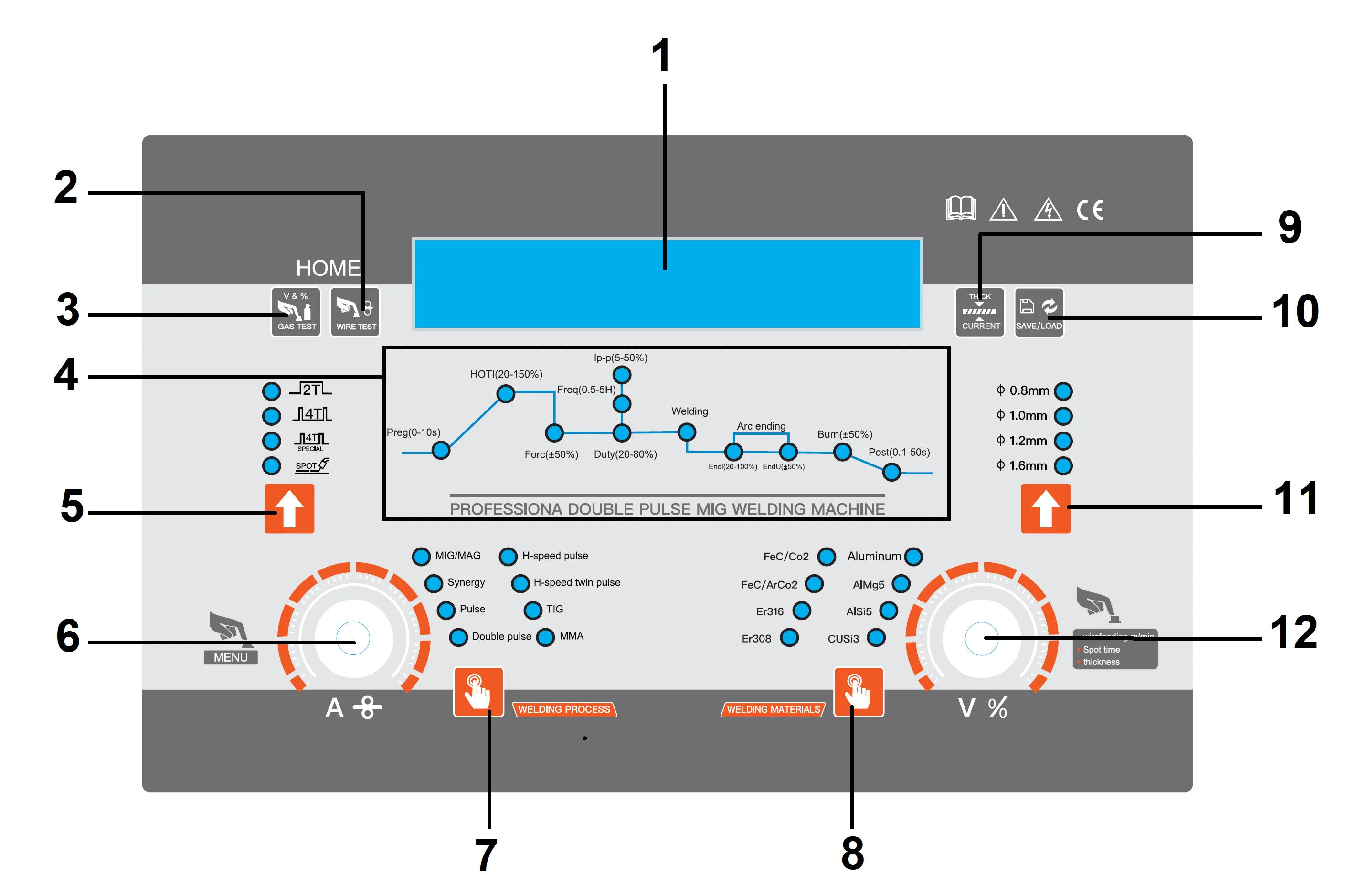

CONTROL PANEL INSTRUCTION
1. Digital display
2. Wire testing
3. Home/gas testing
4. MIG functional indicators
5. 2T/4T/special 4T/spot time
6. Menu/current regulator/wire speed
7. Button to select welding process
8. Button to select materials
9. Metal thickness
10. Load/save
11. Button to select wire diameter
12. Menu/value setting
Note :
Setting on the control board of power source , the setting generates simultaneously on control board of wire feeder.

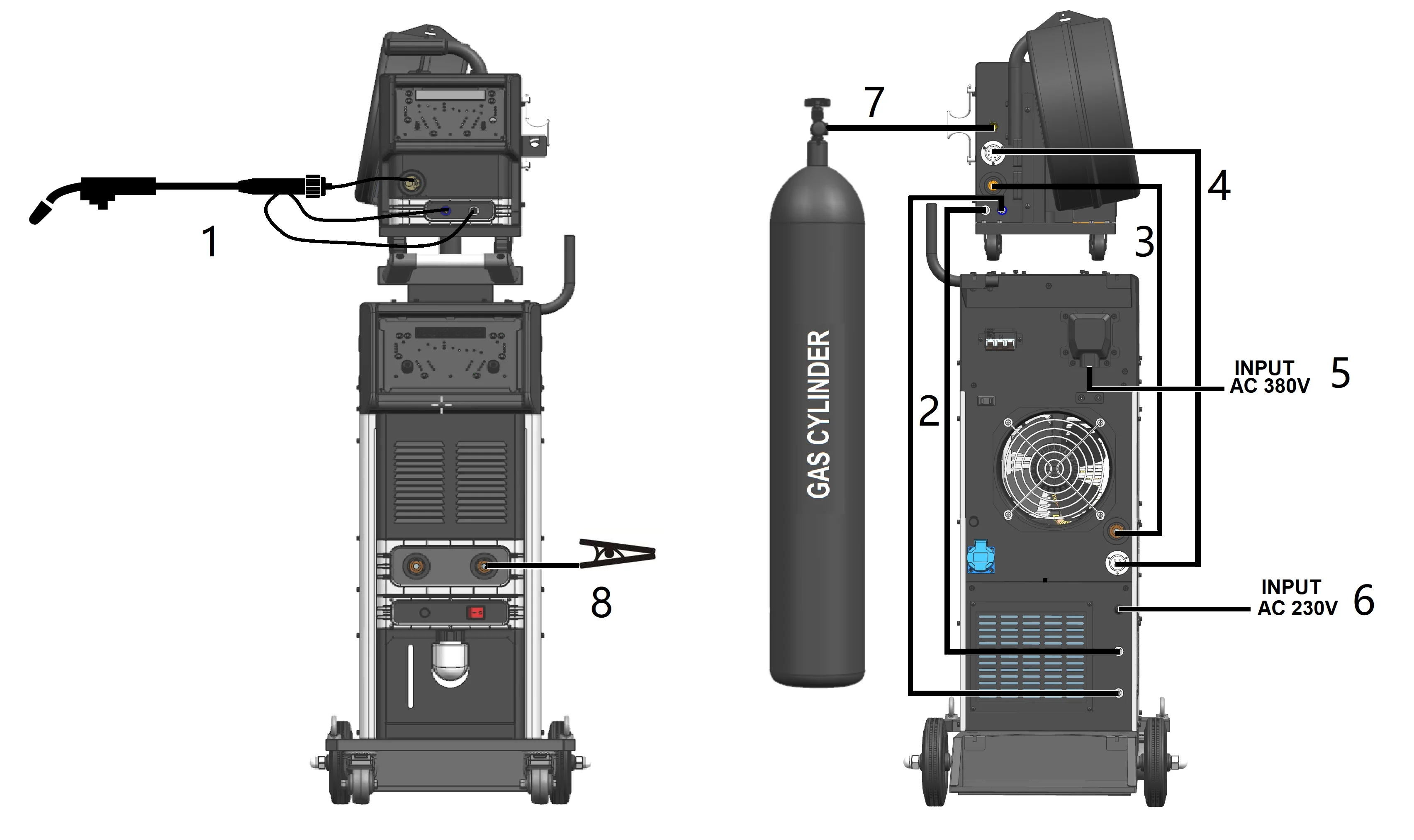

MIG WELDING INSTALLATION
1. Insert the earth cable plug into the negative socket on the front of the machine and tighten it. (8)
2. Plug the welding torch into the MIG torch connection socket on the wire feeder .and tighten it. Blue tube connect to input water flow , red tube connect to output water flow . (1)
IMPORTANT : When connecting the torch be sure to tighten the connection. A loose connection can result in the connector arcing and damaging the machine and gun connector.
3.Connect the water inlet and outlet pipe between wire feeder and water cooling unit .(2)
4.MIG power connection between wire feeder and power source .(3)
Note if this connection is not made, there will be no electrical connection to the wire feeder and welding torch!
5.Connect the control(steering) 7 pin cable between wire feeder and power source .(4)
6.Connect the gas regulator to the wire feeder. Check for Leaks! (7)
7. Connect input power cable AC 380V . (5)
8. Connect input power cable to water cooling unit AC 230V . (6)
ACCESSORIES
1. water cooling MIG torch 3m x1
2. steel liner 3m for 0.8-1.0mm x 1
3. steel liner 3m for 1.2-1.6mm x 1
4. teflon liner 3m for 1.2-1.6mm x1
5. contact tip 0.8mmx4
6. contact tip 1.0mmx4
7. contact tip 1.2mmx4
8. contact tip 1.6mmx4
9. U type roller 1.0/1.2mm x 2
10. U type roller 1.2/1.6mm x 2
11. V type roller 0.8/1.0mmx 2
12. V type roller 1.2/1.6mmx 2
13. electrode holder 500A 2m ,50mm² copper x1
14. earth clamp 600A 3m , 50mm² copper x1
15. input power cable 3 m
16. input power cable 1m adapter 5 pin socket x 1
17. output power cable 1.5m , 50mm² copper x1
18. 7 pin steering cable 1.5 m x 1
19. wire pipe 5m x 1
20. wrench x1
21. fuse x3
Technical specifications
| material / metal processed | Carbon Steel, Iron, Stainless Steel, Aluminum Alloy, Pure aluminum |
|---|---|
| rated input voltage | 380 V, 440V |
| mig solid wire diameter mm | 0.8 - 1.6mm |
| Engine power | Electric(AC), Electric(DC) |
| rated output voltage | 70V |
| max. load power capacity | 25 kVA |
| rated duty cycle @40°c (mig) | 100% |
| wire melting type | Short Circuit Transfer |
| protection grade | IP21S |
| Plug Type | European Plug |
| warranty | 1 Year |
| feature | Multi process Double pulse |
| Single package size | 107X54X155 cm |
| Single gross weight | 172.000 kg |
| SKU | 1601534660512 |
