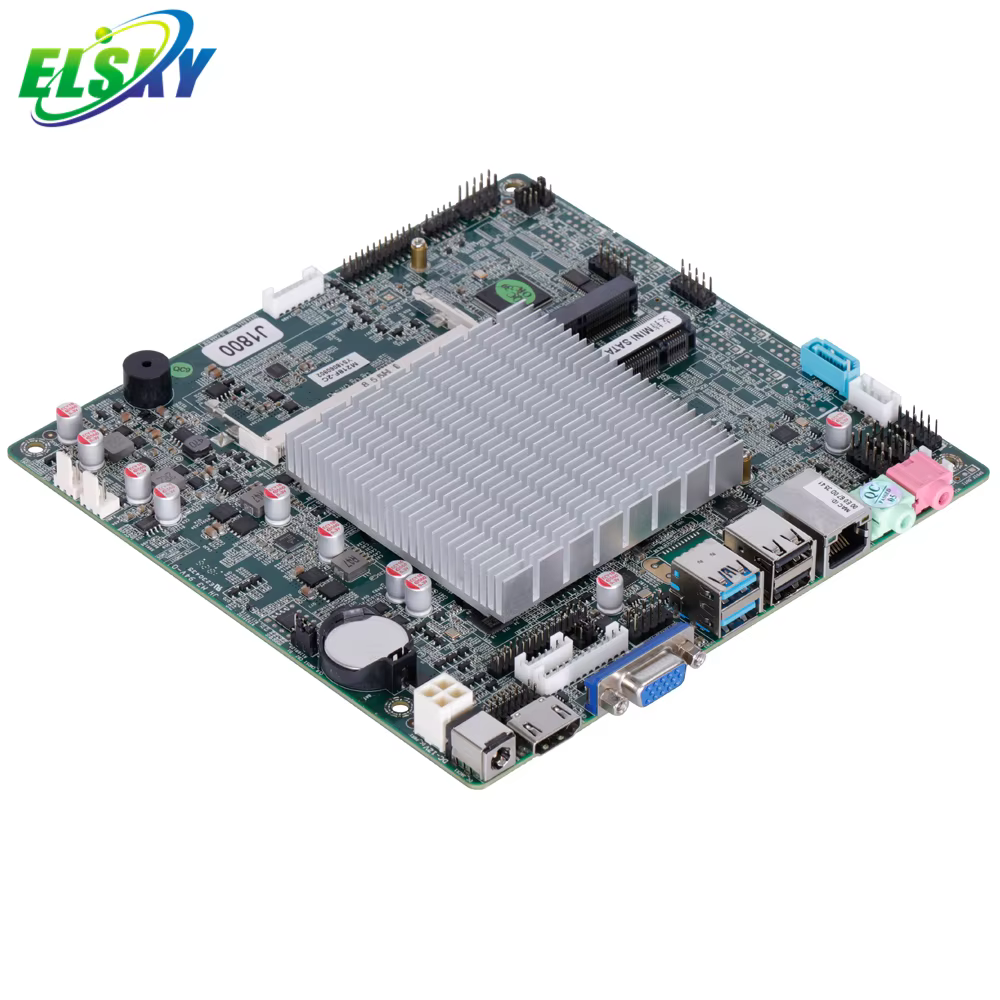

China cheap 1900 Quad Core motherboard mini itx 17*17mm DDR3L RAM 2G/4G/6G/8G VGA HD-MI 4K 1080P LVDS 8 *USB 1/2*LAN
Features
1.It's the Fanless evolution of Mini-ITX form factor Industrial Motherboard developed by ELSKY, with Intel Baytrail J1800 /J1900/J2900 onboard.
2.It provides 2×Mini-PCIE to support Wifi/3G/GPS and MSATA.
3.It provides 1×DDR3 SODIMM Socket supporting a memory up to 8GB;
SATA and MSATA storage modes.
4.It supports independent Dual view, VGA +HD-MI/LVDS.
5.It can support GPIO.
Specifications
|
Size |
Mini-ITX ,170mm x170mm x21mm |
|
Processor |
Intel Celeron J1800 Dual Core 2.4GHz Processor Intel Celeron J1900 Quad Core 1.99GHz Processor Intel Cpentium J2900 Quad Core 2.41GHz Processor |
|
Chipset |
Intel Bay trail SOC Single Chipset |
|
Memory |
1*NB-DDR3 SODIMM Slot ,Support 2G/4G/6G/8G |
|
Ethernet |
1x 1000M Lan ,Realtek GBE RJ45,8111F (2 Lan option) |
|
Audio |
Integrated Cmedia HS-100B high-fidelity USB audio chip, no F-AUDIO pin by default; it can be changed to support Realtek 662/892 and other sound card chips, after chanfging can add the F-AUDIO pin.
Support Line-in,Line-out,Mic-in,Spdif,Speaker by default |
|
Display |
Intel HD Graphics graphics controller, motherboard VGA, HD-MI, LVDS support single display, dual display copy, dual display expansion, single display under DOS
1*VGA DB15 interface, 1*VGA_OUT pin, support resolution 1920*1080@60HZ 1*HD-MI 1.4 interface, 1*HD-MI_CON pin, support resolution 1920*1080@60HZ 1*LVDS pin, support resolution 1920*1080@60HZ
|
|
Storage |
2xSATA2.0,Standard SATA 2.0 hard disk interface
1xMSATA2.0,default support MSATA 2.0 disk and WIFI, MSATA interface default SATA signal and USB signal coexist, among which SATA signal can be changed to PCIE signal |
|
USB |
Single lan motherboard :9*usb2.0 1*usb3.0 Dual lan motherboard: 7*usb2.0 1*usb3.0 |
|
COM |
2*COM/6*COM/10*COM optional
2COM only support RS232,not support RS422/RS485; 6COM/10COM , COM3/4 can optionally support RS232/RS422/RS485, and COM6 can optionally support RS232/RS485; |
|
Power Supply |
1*DC_JACK DC 12V Power Supply, Full load power consumption is about 30W,12V 5A is recommend |
|
CPU_Fan |
Fanless by default (with fan is optional) |
|

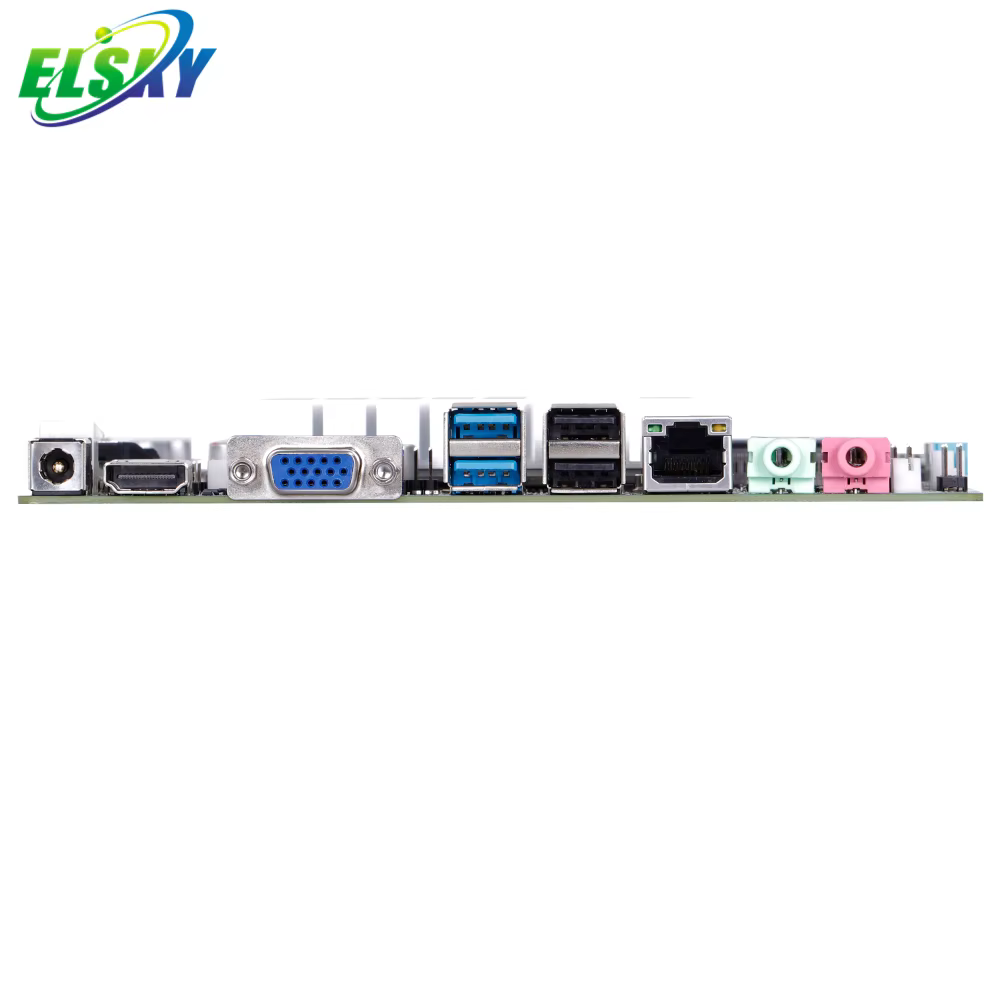

Rear I /O |
DC_in,HD-MI,VGA,4x USB,1xLan,1xLine-Out,1xMic_in.(2xLan option) |
|
Built-in I/O |
1x24bit LVDS, 6xUSB2.0, 2xCom(6/10xCom option ), 1xLPT, ,1x PS/2,2xFan_Slot,SIM Card slot, Spdif, VGA header (12P standard) |
|
Expansion |
2xMini-PCIE , Support Wifi,3G,GPS and MSATA |
|
BIOS |
AMI BIOS, support power-on boot, scheduled boot, remote switch machine intelligent identification |
|
Operating Temperature |
-10℃ to 60℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Operating Humidity |
0-95% |
|
Watchdog |
Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) |
|
H/W Monitoring |
Monitor the state of voltage,temperature and rotational speed of the fan |
|
Matching chassis |
IPC-6000-2C-6C-9C-10C (If you want to know more about the case,please feel free to contact us.) |
Different configurations have different prices,if you want to know more about the specific price,please be free to contact us.
Technical specifications
| socket type | J1800/J1900/J2900 Onboard |
|---|---|
| application | Desktop |
| memory type | DDR3 |
| cpu type | Intel |
| chipset | Intel Bay trail SOC chipset |
| ports | Wi-Fi, SATA, VGA, USB 2.0, PS2, Display Port, Ethernet, M.2, USB 3.0 |
| form factor | Mini-ITX |
| maximum ram capacity | 8 GB |
| memory channel | Single |
| graphics card type | Integrated |
| memory bank | 1 DDR3 DIMM |
| with cpu | Yes |
| Packaging Details | Every item is packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes. 1Piece/Carton, 5Pieces/Carton, 10Pieces/Carton, 20Pieces/Carton |
| Port of dispatch | SHENZHEN/HONGKONG |
| Single package size | 20X20X18 cm |
| Single gross weight | 1.000 kg |
| Supply Ability | 100000 pieces per Month |
| SKU | 60575761142 |
