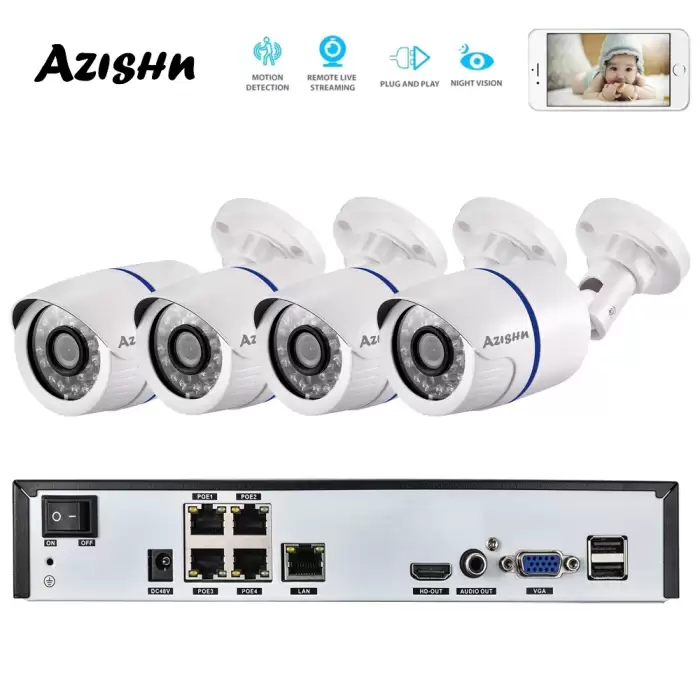

AZISHN 4CH H.265+1080P 48V POE 2MP NVR CCTV Camera System Outdoor Security 1080P IP Camera P2P Video Surveillance System NVR Kit
Day and Night vision
Built in IR-Cut filter with IR distance 25 meters, the smart IR-Cut anyomatical switches between day and night to bring solid protection all the time
P2P cloud technology
The P2P technology enhances the capacity, bandwidth and computing ability of the network system by allowing the entire client to provide network source. In conjunction with our NVR, users will enjoy a more flexible, reliable access to the recorded video without needing to download it like before.

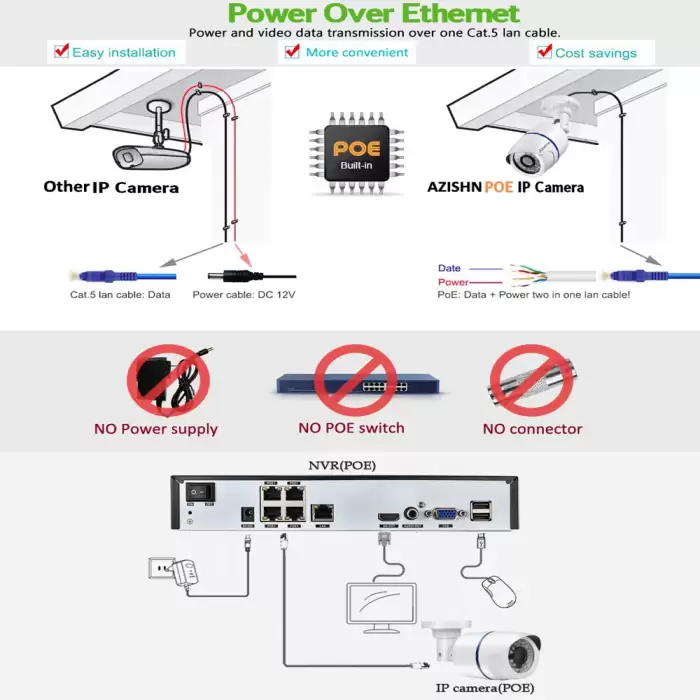

POE - Easy Setup, Even For a Beginner
A real plug and play security system! With a single network cable connecting each IP camera to the NVR for both power supply and video singal transmission.
Q:Why you choose 48V POE?What is the difference between 15V PoE and 48V PoE?
A: 15V POE max support 20-30m POE cables transmission distance
48V POE max support 80-100m POE cables transmission distance
48V POE NVR Features：
1.H.264/H.265 High profile compression algorithm ideal for network NVR
2.Realtime live display up to 4 IP cameras
3.Pentaplex function:live,recording,playback,backup & remote access;
4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission
5.Multiple control methods:IR remote controller,USB mouse and front panel press button
6.Smart video detection:motion detection,video blind,video loss
7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display
8.Easy backup methods: USB devices,remote network and client software backup
9.Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload
10.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
11.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK..
12.Enable strong multi-way synchronization with max 1 channel playback, realize the zero-delay between playback channels
13. Support cloud(xmeye.net),no need to do router mapping, just 1 step go to internet with cloud technology
14. POE NVR, 1PCS LAN Port, 4PCS POE Ports.
Multi-language:
English,Russian,Finnish,Frence,German,Greek,Italian,Japanese,Polish,Portuguese,Spanish,Thai,Turkish,Farsi,Hungarian,Vietnamese,Romanian,Korean,Brazilian,Indonesian,Swedish,Arabic,Bulgarian,Czech,Hebrew.
48V POE NVR Specifications:
|
System |
Model |
Mini 4CH POE NVR |
|
Main Processor |
HI3515 |
|
|
Operating System |
Embedded LINUX |
|
|
System Resources |
Pentaplex function:live,recording,playback,backup & remote access |
|
|
Operation interface |
16-bit true color graphic menu operation interface, support mouse operation |
|
|
Preview |
1/4 |
|
|
Video |
Video Standards |
PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
|
|
Video Compression |
H.264 High profile |
|
|
quality supervision |
Monitor: D1; VGA: high definition; HDMI: hd |
|
|
Video Input(IP) |
4*1080P/4*960P |
|
|
Video Recording |
1080P/960P/D1 |
|
|
Motion Detection |
Zones:396(22*18)detection zones, Multi-level sensitivity can be set (Local channels only) |
|
Audio |
Audio Conpression |
G711A |
|
Bidrectional Talk |
N/A |
|
|
Record &Playback |
Recording Mode |
Manual>Alarm>Video Detection>Continuous |
|
Playback |
1/4channel playback simultaneously |
|
|
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
|
Storage & Backup |
Space Occupation |
Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16~20G/day/ch ; Audio: 691.2M/day/channel |
|
Video saved |
Local HDD,network |
|
|
Backup Mode |
Network download/Flash stick/USB/SATA |
|
|
Interface |
Video Input(BNC) |
N/A |
|
|
Video Output |
1ch VGA output, 1ch HDMI |
|
|
Audio Input |
N/A |
|
|
Audio Output |
1 channel RCA |
|
|
Alarm Input |
N/A |
|
|
Relay Output |
N/A |
|
|
Net Interface |
RJ-45 10M/100M |
|
|
PTZ Control |
N/A |
|
|
3G/WIFI |
NO |
|
|
USB Interface |
2* USB2.0 port for mouse and backup |
|
|
Hard Disk |
1 SATA port(Max 6T)(HDD not included) |
|
Environmental |
Power Supply |
48V/1.5A |
|
Dimension/Netweight |
30*27*10cm |
|
|
Weight |
1.1KG |

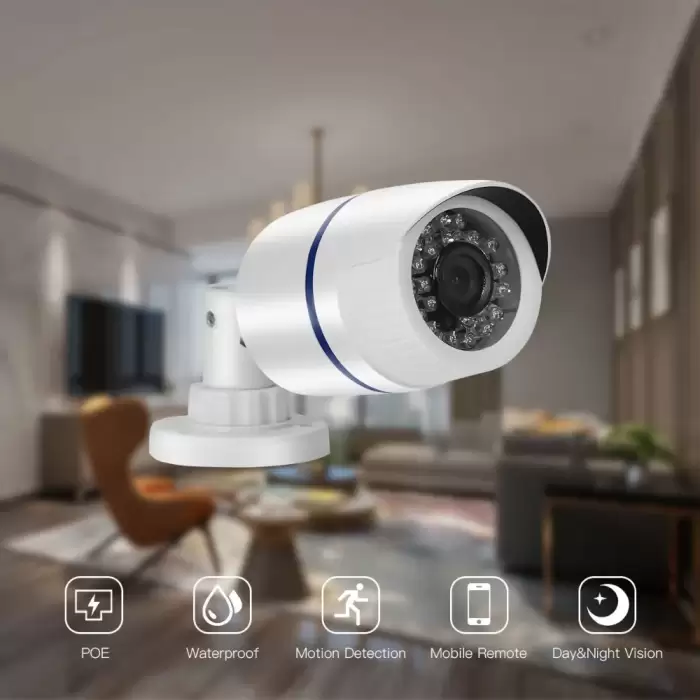

CAMERA:
|
Model |
1080P |
|
System structure |
Embedded RTOS,dual-core 32bit DSP( XM530AI ),pure hard compression ,watch dog |
|
Sensor |
1/2.9" SC2235P cmos ,color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 |
|
Video compression |
H.265/H.2654,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
|
Image output |
Main stream: 2MP:1920X1080,25fps;sub-stream: 704*576; |
|
Noise reduction |
Support 2D/3D |
|
lens |
Default 3.6mm(2.8mm/6mm/8mm can choice) |
|
Storage |
Via PC/Mobile Phone/NVR With HDD |
|
Infrared light |
24PCS IR Leds 10~25M night vision |
|
Wide dynamic |
Support digital |
|
Network interface |
1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
|
Singal interface |
One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
|
Auto iris |
No |
|
SD Card |
Unsupport |
|
Reliability |
Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing) |
|
Other function |

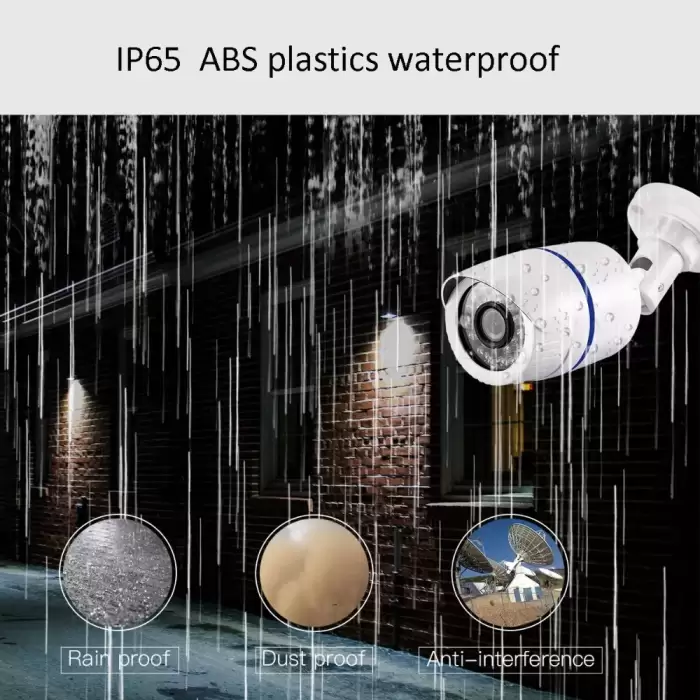

Waterproof,POE |
|
ONVLF |
Support |
|
Mobile monitoring |
Support multiple mobile monitoring(iOS,Android) |
|
Power |
48V PoE, power consumption:≤3W |
|
Dimension |
18.4*5.5cm |
|
Housing material |
ABS Plastic Material ( Waterproof/Weatherproof ) |

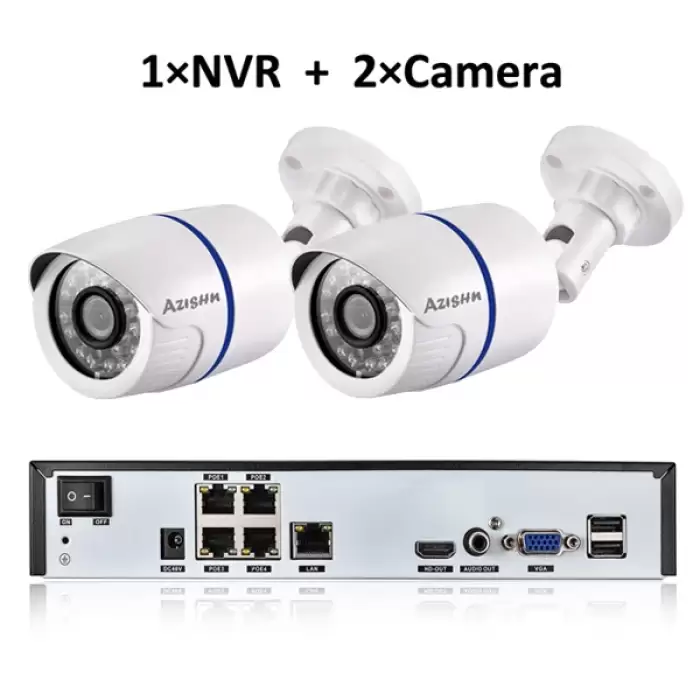

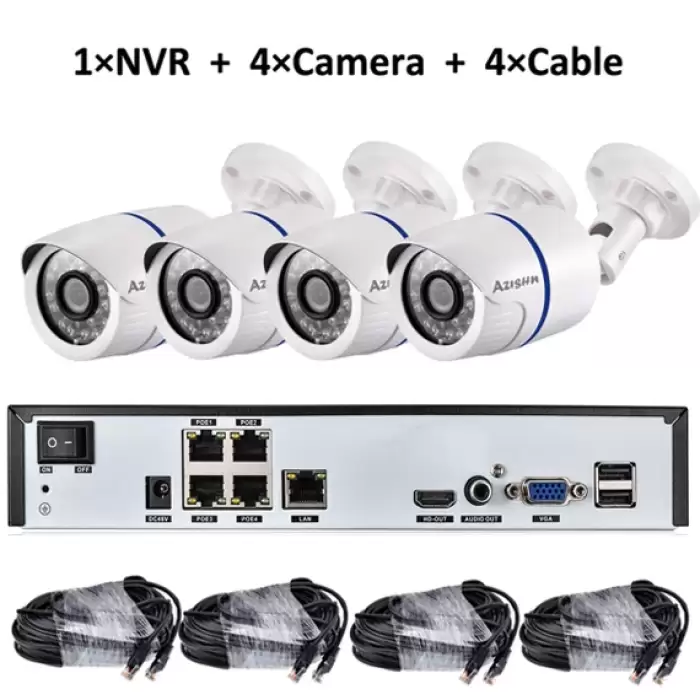

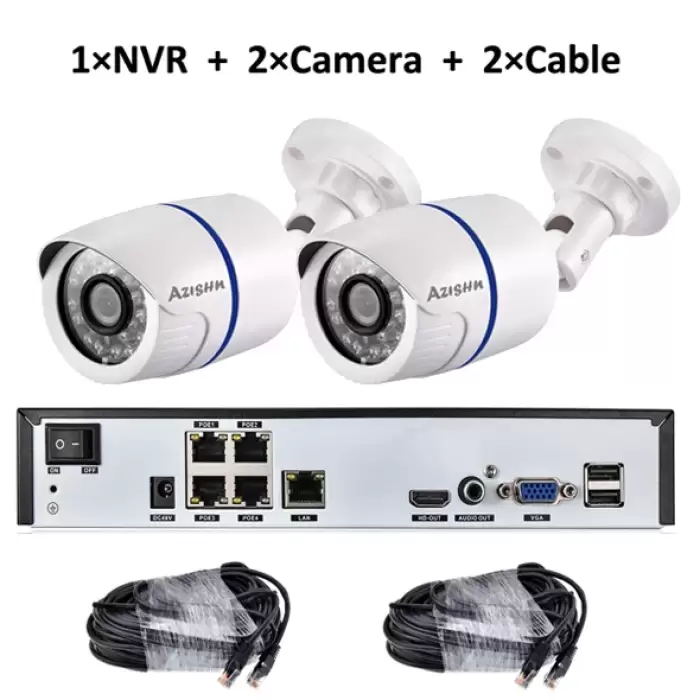

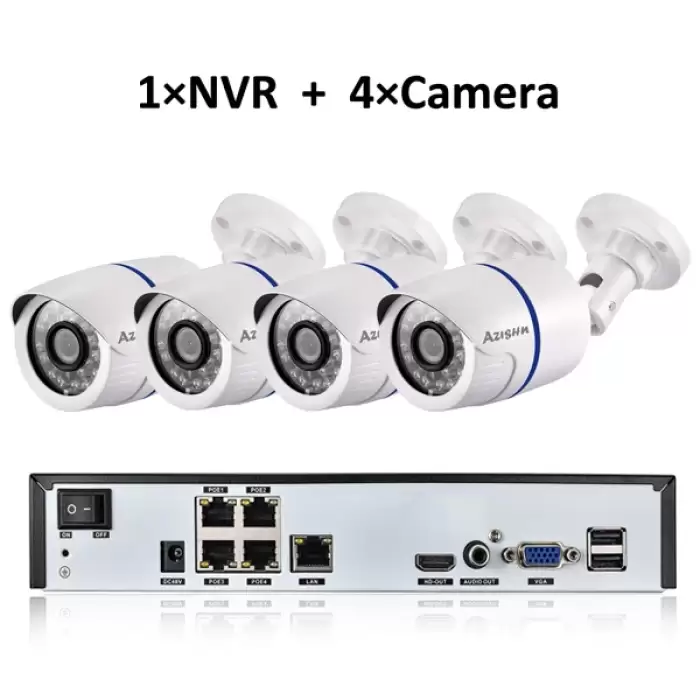

Packing list:
1 x 4Channel 1080P 48V POE NVR
4 (or 2 ) x 2.0 1080P POE Megapixels Cameras(for your choice)
4 (or 2 or none )x 18.3M LAN cables for Camera (for your choice)
1 x Power Supply for NVR
1 x Mouse for NVR
1 x English user guide
NO HDD or 1TB HDD you can choose
Technical specifications
| Build-in HDD | 1T, None |
|---|---|
| Video Input | 4 Channel |
| Resolution | 1080P |
| TV System | NTSC,PAL |
| PCS of Camera | 2PCS,4PCS |
| Cable Length | 18.3M |
| Model Number | N7904FN-AZ00281 |
| Brand Name | AZISHN |
| Origin | Mainland China |
| Certification | CE |
| Smart home platform | None |
| Housing | ABS Plastic Material ( Waterproof/Weatherproof ) |
| color | White Cameras |
| LENS | Standard 3.6mm , 2.8/6/8mm for optional |
| Technology | P2P icloud Waterproof, IE Google browser view |
| Mobile APP | XMeye for Android and iPhone |
| Recording Frame Rate | 100/120fps 1080P @25fps |
| Plug Type | AU Plug, EU Plug, UK Plug, US Plug |
| color | NVR 2Camera 2cable, NVR 4Camera 4cable, NVR and 2camera, NVR and 4Camera |
| SKU | 32948273273 |
