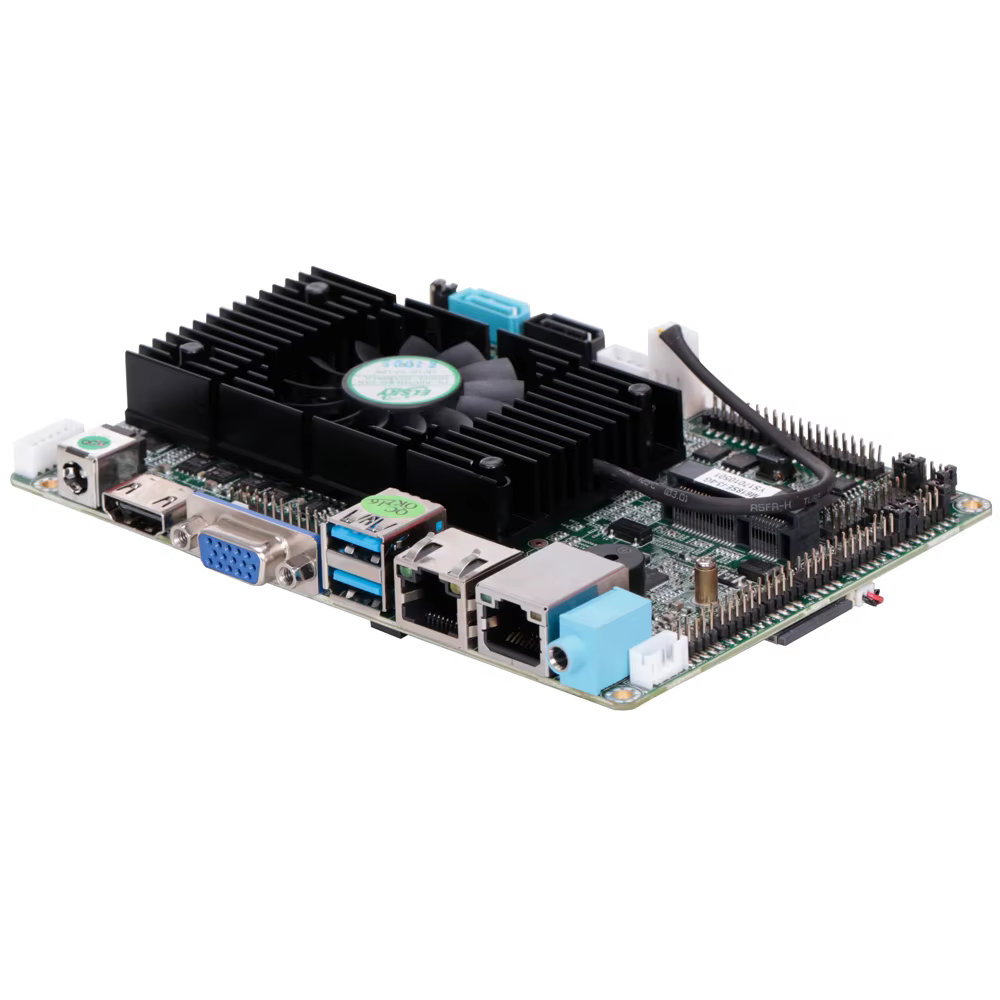

ESLKY3.5 inch Core i3 motherboard with 3217U Intel Chipset HM76 Supporting DC 12V Power Supply DDR3 Onboard 2G /4G 6*usb 6*com
Features
1. It's the latest evolution of 3.5 inch form factor industrial Motherboard with Dual GBE Lan developed by ELSKY.
2. It is based on Intel Celeron I3 3217U+NM76 chipset.Provide 2 Mini-PCIE and 1 Sim Slot to support Wifi/GPS/3G/MSATA
3. Onboard 2GB or 4G Ram, SATA (1 Sata 3.0, 1x Sata 2.0)and MSATA storage modes.
4. It supports 1080P HD and independent Dual view, 1 HDMI and 1 VGA . Dual Channel 24bit LVDS.
Specifications
|
Processor |
Intel Core I3 3217U Processor (1037U,I5 3317U I7 3517Uoption) |
|
Chipset |
Intel Chipset NM76 |
|
Memory |
DDR3 Onboard 2G (Onboard 4G option) |
|
Ethernet |
Realtek 8111E GBE Lan,Support 2xRJ45 |
|
Audio |
Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker |
|
Display |
VGA,HDMI,LVDS. |
|
Storage |
Sata3.0x1(Blue),Sata2.0x1(Black),MSATAx1(Mini-PCIE) |
|
Power Supply |
DC 12V Power Supply, 5A Recommend |
|
CPU_Fan |
Thin Cool Fan |
|
Size |
3.5inch ,145mm x100mm x 18mm |
|

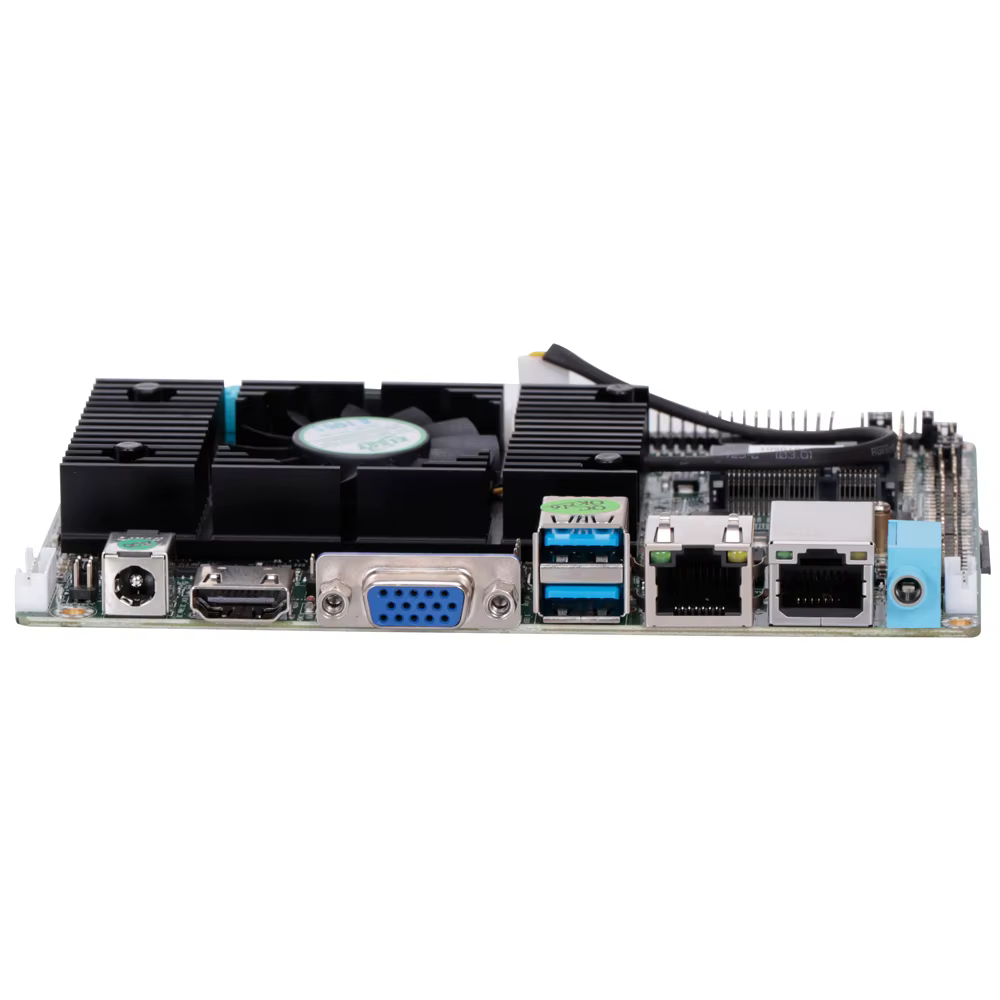

Rear I /O |
DC_in, HDMI, VGA, 2x USB3.0, 2xLan,1xLine-Out(4USB option) |
|
Built-in I/O |
1x24bit LVDS,4xUSB2.0,6x Com,1xFan_Slot, SIM Card slot,Spdif,VGA header(12P standard) |
|
Expansion |
2xMini-PCIE , Support Wifi,3G,Blue-tooth,GPS |
|
Operating Temperature |
-10℃ to 60℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Operating Humidity |
0-95% |
|
Watchdog |
Support |
|
H/W Monitoring |
Monitor the state of voltage,temperature and rotational speed of the fan |
Price Explanation!!!
Different configurations have different prices. All of prices are barebone (Motherboard+Case).
If you need CPU,Memory,SSD,HDD,WIFI,License operating system,3G,4G,GPS,power adapter and other accessories, please contact us to get the prices.
If you need to purchase in large quantities, or want to know about promotional activities/clearance sale, please contact us for the best price.
The prices of this product link are for reference only!
We don't update product links frequently. If you want to know the latest price, please contact us.
Notice:The prices will vary with exchange rates and material costs.
Thank you for your attention and support!
Technical specifications
| socket type | I3 3217U Onboard |
|---|---|
| application | Desktop |
| memory type | DDR3 |
| cpu type | Intel |
| chipset | Integrated |
| ports | AGP 2X, Display Port, Ethernet, SATA, VGA, Wi-Fi, E-sata |
| form factor | 3.5inch |
| maximum ram capacity | 8 GB |
| memory channel | Single |
| graphics card type | Integrated |
| memory bank | 1 DDR3 DIMM |
| with cpu | Yes |
| Packaging Details | Original Package/Custom Package |
| Port of dispatch | SHENZHEN, HONGKONG |
| Supply Ability | 100000 pieces per Month |
| SKU | 60529253539 |
