2025 ELSKY NUC 10 10CM Motherboard
Contact the supplier first
Confirm product spec, exact USD price, MOQ and lead time. Then paste their quoted price below to get a precise landed estimate.
- [email protected]
- +86-0755-82260150
- WhatsApp: 8618123774171
- miniboard.cn
- 801, Building 7, Kangli City, Shanglilang, Nanwan Street, Shenzhen, Guangdong, China
- Avg response: within_4_hours
Ship the goods to our Shenzhen warehouse
Ask the supplier to deliver to our hub below. We consolidate, inspect and ship to South Africa for you.
Estimate the SA delivery cost
Paste the supplier's quoted price + your shipment specs. Results update live below.
Estimated landed cost in South Africa
Enter the supplier price + dimensions above to see the breakdown.
Live estimate. Values recalculate as you type — Product × FX + customs duty & handling + 15% VAT + freight. Variance vs final binding quote is typically < 5% and only changes if the supplier's pro-forma differs from your inputs.
How Class B sourcing works on BestDealz
One platform · Verified suppliers · Trade Assurance · End-to-end logistics — fully landed in SA
Message the supplier
On-platform chat — get a factory pro-forma with delivery to our Shenzhen consolidation centre.
Submit the pro-forma
We calculate sea/air freight, customs, 15% VAT and last-mile in ZAR — precise quote in < 24 hours.
Pay & we ship
One all-in payment in Rand under Trade Assurance. We handle SARS clearance and SA delivery.
Door-to-door
Goods land at your address in 60–70 days. Inspect on arrival.
Product Gallery
|
Size |
100mm*100mm*30mm |
||
|
CPU processor |
NUC600 |
3855U,3955U Skylake i3-6100U,i5-6200U,i7-6500U |
|
|
NUC700 |
3865U,3965U Kabylake i3-7100U,i5-7200U,i7-7500U |
||
|
Chipset |
Single Chip Integrated in CPU |
||
|
Power Supply |

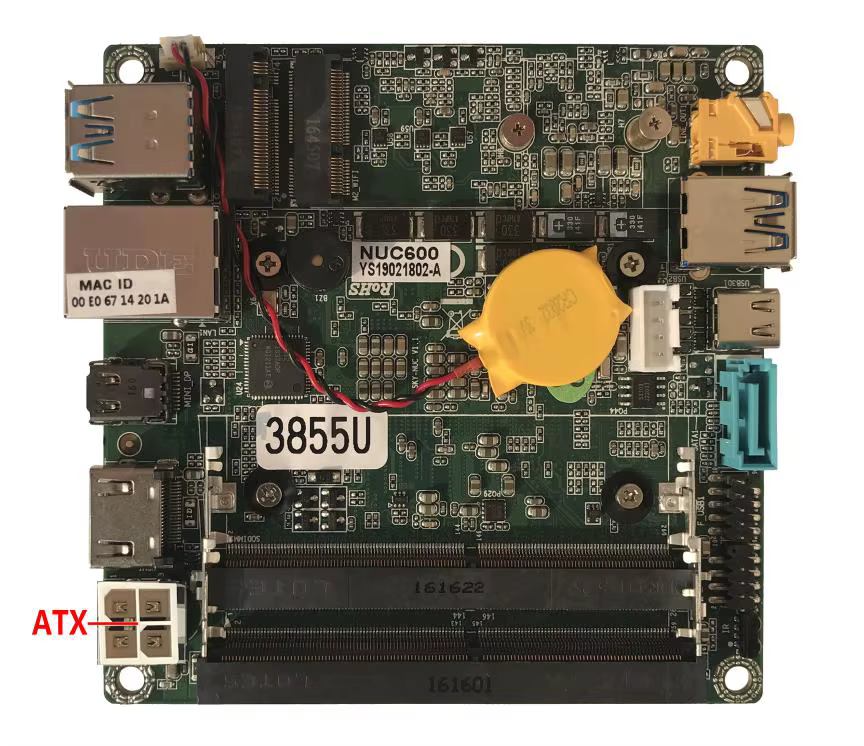

1*DC_IN (Can be changed to 4Pin ATX) |
DC head diameter is 2.5MM, supporting 12V power supply
Main board power consumption: about 30W. It is recommended to use 12V5A or more power supply. |
|
|
Memory |
2*NB-DDR4 support 2133/2400MHz memory,Max.32G |
||
|
Display function |
NUC600 |
Intel HD Graphics 510/520 Graphic Controller |
Supports single-display, double-display replication, double-display extension, and single-display under DOS |
|
NUC700 |
Intel HD Graphics 610/620 Graphic Controller |
||
|
1*MINI-DP interface |
Supporting 4K resolution 4096*2160@60HZ |
||
|
1*HD-MI 1.4 interface |
Supporting 4K resolution4096*2160@24/30HZ |
||
|
Network function |
1*LAN interface |
Intel i211AT Gigabit Network Card, Support Network Wake-up, PXE Function |
|
|
1*M.2_2230 interface |
Support WIFI/BT(Bluetooth)etc. |
||
|
Hard disk function |
1*M.2_2260 interface |
Support M.2_2260_SSD,Default SATA protocol, NVME (PCIE) protocol can be changed |
|
|
1*SATA1 interface |
Standard SATA3.0 Hard Disk Interface, Maximum Transmission Speed 6.0 Gbps
|
||
|
1*SATA_PWR pin |
Hard disk power supply pin, 5V, 12V option (1*4Pin,2.54mm) |
||
|
Audio function |
Integrated Realtek ALC662 HD Digital Audio Decoder, 6-Channel High Fidelity Audio Controller |
||
|

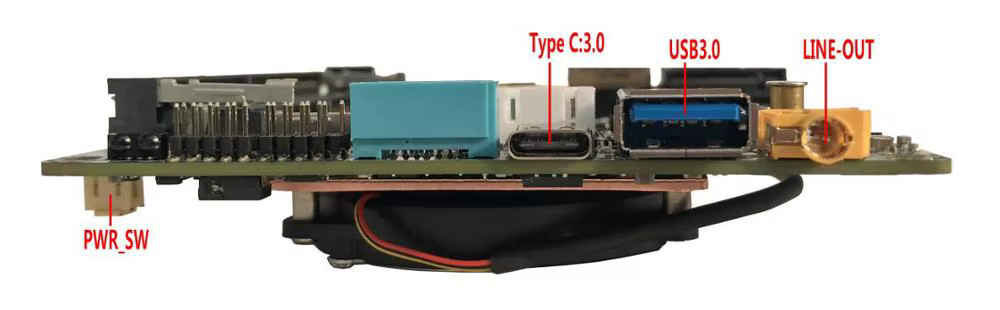

1*LINE_OUT interface |
Support audio output and MIC input |
||
|
HD-MI Interface Supports HD-MI Display Audio Output |
|||
|
MINI-DP interface supports audio output of DP display |
|||
|
USB function |
3*USB3.0 interface |
Postposition standard USB 3.0 interface |
|
|
1*Type C:3.0 interface |
Standard Type C:3.0 interface, USB device can be connected |
||
|
1*F_USB1 Pin |
Pre-USB 2.0 pins, a set of 2*USB 2.0 pins (2*5Pin,2.0mm) |
||
|
Switching function |
1*F_PANEL Pin |
Switch, power supply light, hard disk light, restart pin (2*5Pin,2.0mm) |
|
|
1*PWR_SW Pin |
Support Hardware Controlled Power-on(Auto-swtich) (1*2Pin,2.0mm) |
||
|
Running environment |
Working temperature: - 20 ~60 C; Working humidity: 5%~95% relative humidity, no condensation. |
||
|
BIOS |
AMI BIOS,Supporting power o(auto-swtich),Turn on at regular intervals,Intelligent recognition of remote switching equipment |
||
|
Watch Dog |
Watchdog programming, supporting hardware reset function (256 level, 0-255 seconds) |
||
|
operating system |
Support Win 10, Win 8, Win 7, Linux, etc. |
||
Technical specifications
| socket type | on board |
|---|---|
| application | industrial control PC, Advertising machine |
| memory type | DDR4, 2*NB-DDR4 Max.32G |
| cpu type | Intel |
| chipset | Intel high speed chipset on CPU |
| ports | Display Port, Ethernet, SATA, USB 2.0, USB 3.0, VGA, Wi-Fi |
| form factor | 100mm*100mm*30mm |
| maximum ram capacity | 32 GB |
| memory channel | Double |
| graphics card type | Integrated Intel HD Graphics 510/520/610/620 on CPU |
| memory bank | 2 DDR3 DIMM |
| with cpu | Yes |
| SKU | 62114359604 |
