2025 ELKSY Cheap I5HGP I5 3317U
Contact the supplier first
Confirm product spec, exact USD price, MOQ and lead time. Then paste their quoted price below to get a precise landed estimate.
- [email protected]
- +86-0755-82260150
- WhatsApp: 8618123774171
- miniboard.cn
- 801, Building 7, Kangli City, Shanglilang, Nanwan Street, Shenzhen, Guangdong, China
- Avg response: within_4_hours
Ship the goods to our Shenzhen warehouse
Ask the supplier to deliver to our hub below. We consolidate, inspect and ship to South Africa for you.
Estimate the SA delivery cost
Paste the supplier's quoted price + your shipment specs. Results update live below.
Estimated landed cost in South Africa
Enter the supplier price + dimensions above to see the breakdown.
Live estimate. Values recalculate as you type — Product × FX + customs duty & handling + 15% VAT + freight. Variance vs final binding quote is typically < 5% and only changes if the supplier's pro-forma differs from your inputs.
How Class B sourcing works on BestDealz
One platform · Verified suppliers · Trade Assurance · End-to-end logistics — fully landed in SA
Message the supplier
On-platform chat — get a factory pro-forma with delivery to our Shenzhen consolidation centre.
Submit the pro-forma
We calculate sea/air freight, customs, 15% VAT and last-mile in ZAR — precise quote in < 24 hours.
Pay & we ship
One all-in payment in Rand under Trade Assurance. We handle SARS clearance and SA delivery.
Door-to-door
Goods land at your address in 60–70 days. Inspect on arrival.

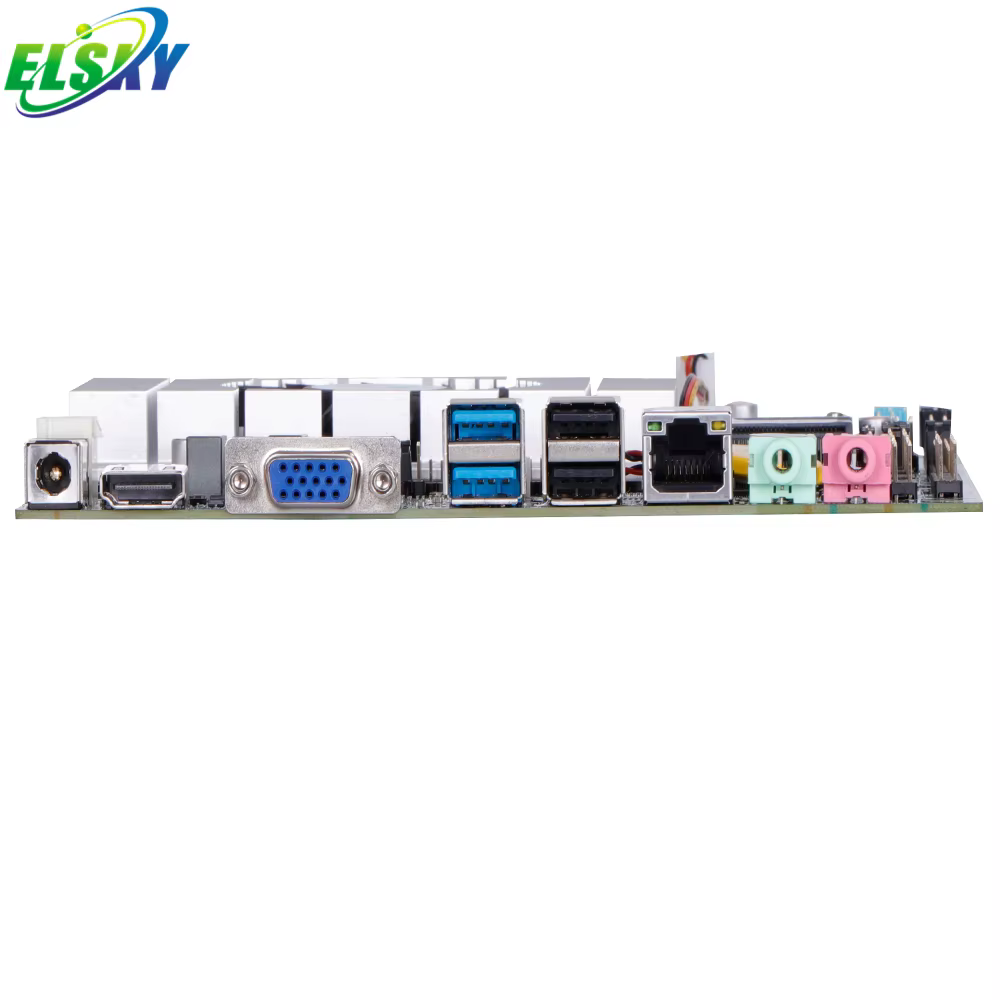

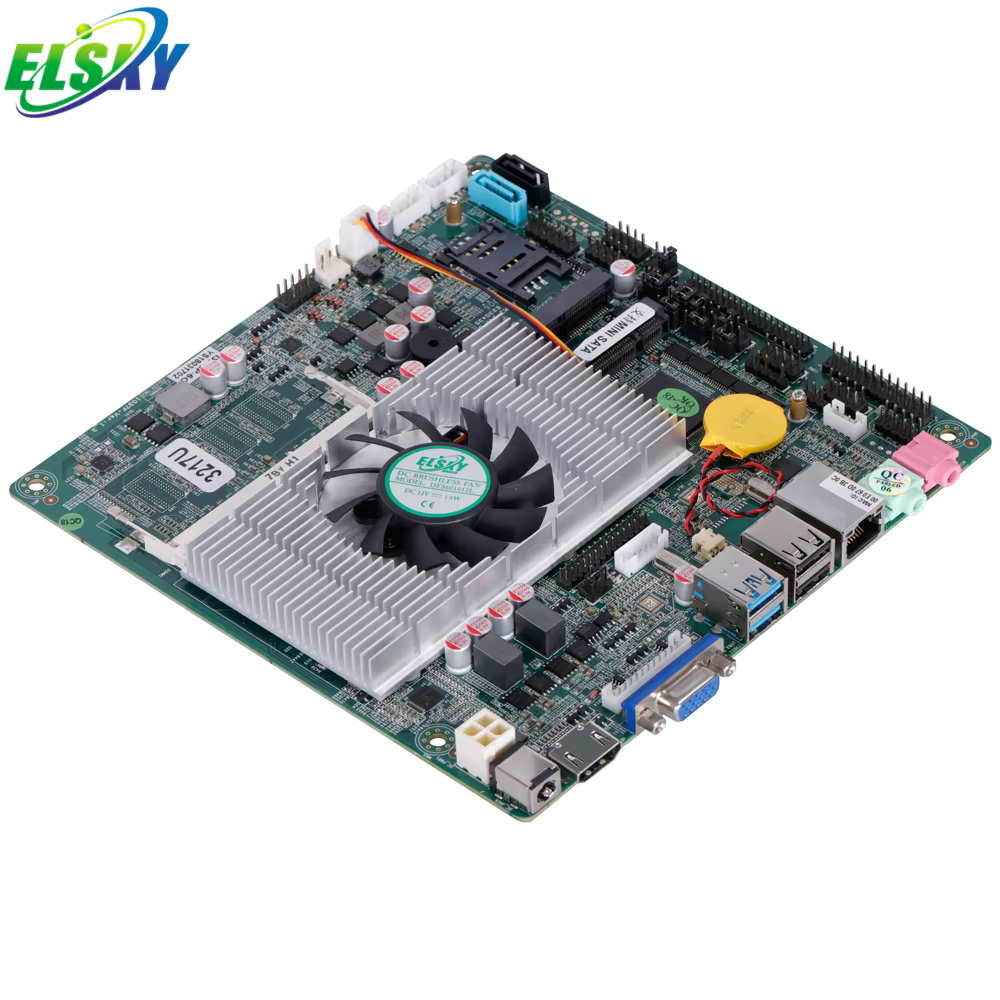

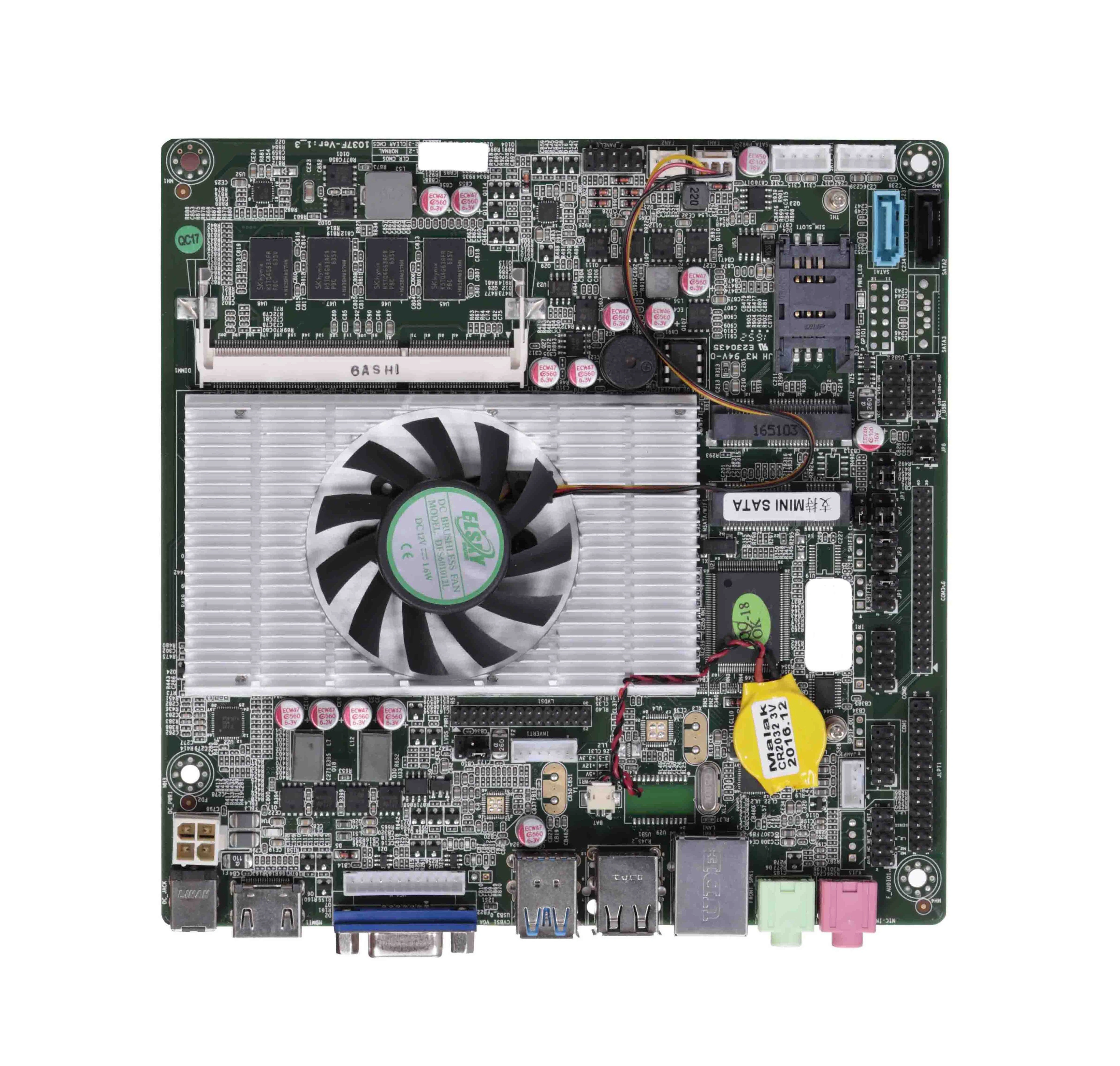

Product Gallery
Product specifications:
|
1007F,1037F,2117F,I3HGP,I5HGP,I7HGP Specification |
|
|
Form Factor |
Thin Mini-ITX |
|
Physical Dimension |
170*170*22mm(L*W*H) |
|
Processor |
Option these processors: 1007F:Support dual cores 1.5GHz 1007U CPU; 1037F:Support dual cores 1.8GHz 1037U CPU; 2117F:Support dual cores 1.8GHz 2117U CPU; I3HGP:Support dual cores 1.8/1.9GHz i3-3217U/i3-3227U CPU; I5HGP:Support dual cores 1.7/1.8/1.9GHz i5-3317U/i5-3337U/i5-3427U/i5-3437U CPU; I7HGP:Support dual cores 1.9/2.0GHz i7-3517U/i7-3537U CPU. |
|
Chipset |
HM65/HM67/QM67/HM70/HM76/HM77/QM77 Chipset |
|
Memory |
1*SODIMM 1333/1600MHz 1.35V/1.5V Memory slot,up to 8GB RAM |
|
Storage |
MSATA slot,2*SATA slots. |
|
Power Supply |
DC12V;Recommend 5A and above power adapter. |
|
Processor Graphics |
Integrated HD Graphics in CPU. |
|
Multiple Display |
Support single display,dual display copy/expansion,single display in DOS. |
|
Display Port |
VGA, 1HDMI, LVDS |
|
Ethernet |
Realtek 8111E Gigabit Ethernet NIC chip; Support Wake-on-LAN and PXE diskless boot function; Option 2*LAN; Option Realtek RTL8105E/RTL8106E 100Mbps NIC chip. |
|
Expansion |
1*Mini PCI-Express slot; Support WIFI/3G/4G/GPS module,etc. |
|
HD Audio |
Realtek ALC662/660/892 HD Audio sound card chip. |
|
Serial Port |
6*RS232: COM1 ,COM2, COM3, COM4, COM5, COM6; Option 1*RS232/422/485. |
|
USB |
8*USB2.0 ; Option 2*USB3.0, 6*USB2.0 |
|
Switch |
1*AUTO_SW PIN; 1*F_PANEL PIN. |
|
Other I/O |
LPT, GPIO, SIM Card slot,etc. |
|
Operating Environment |
Operating temperature:-20℃~60℃; Working humidity:5%~95% Relative humidity, no condensation. |
|
BIOS |
AMI BIOS;Support power on,timing switch,remote switch,intelligently identify devices. |
|
Watch Dog |
Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds). |
|
Operating System |
Support Win10, Win8, Win7,Linux ,CentOS 5.5, etc. |
|
MOQ |
1 piece |
|
Standard accessories |
SATA cable |
|
Optional accessories |
I/O Shield,COM Cable,Power adapter,Memory,Hard disk,WIFI/3G/4G/GPS module,USB cable,etc. |
|
Option Case |
HD4000, HD4001, HD4003, IPC3000, IPC6000, IPC7000A |
|
Other service |
OEM,ODM |
|
All product specifications are subject to change without notice. |
|
Technical specifications
| socket type | LGA 1155 |
|---|---|
| application | Desktop |
| memory type | DDR3 |
| cpu type | Intel |
| chipset | HM65 |
| ports | Wi-Fi, SATA, VGA, USB 2.0, Ethernet, USB 3.0, HDMI |
| form factor | Mini-ITX |
| maximum ram capacity | 8 GB |
| memory channel | Single |
| graphics card type | Integrated |
| memory bank | 1 DDR3 DIMM |
| with cpu | Yes |
| Single package size | 25X25X15 cm |
| Single gross weight | 1.000 kg |
| SKU | 62581555782 |
