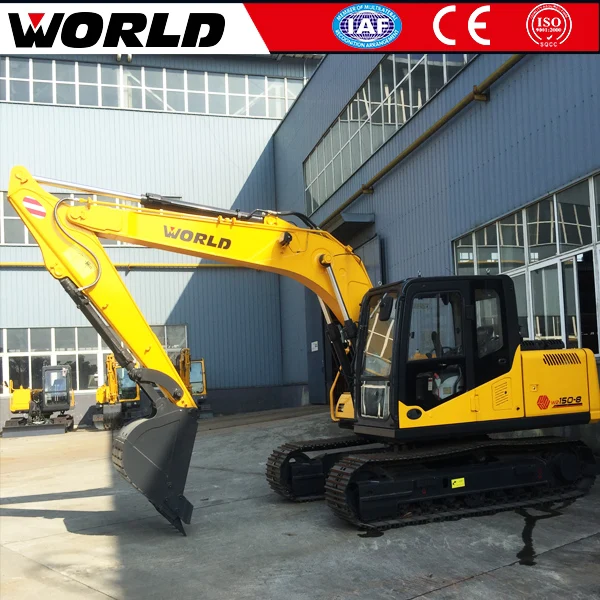

15Ton 0.53m3 bucket hydraulic excavator and crawler digger price
Main Features of 15Ton small excavator price:
-Cumminns motor, 86kw
-Hengli valve and pump
-0.53m3 bucket
-Operating weight 13000kg
Specification List
|
Model |
W2150 |
|
Operation Weight (T) |
13000 |
|
Bucket Capacity (m3) |
0.53 |
|
Engine Model |
Cummins QSF3.8T3TC115 |
|
Engine Power (kw/r/min) |
86/2200 |
|
Fuel Tank Capacity (L) |
247 |
|
Travelling Speed (H/L)(km/h) |
5.3/3.1 |
|
Swing Speed (r/min) |
12.6 |
|
Max. Gradeability (%) |
35 |
|
Bucket Digging Force (KN) ISO |
80 |
|
Arm Digging Force (KN) ISO |
64 |
|
Grand Pressure (KPa) |
38 |
|
Traction Force (kN) |
86 |
|
Hydraulic Pump Model |
K3V63DT |
|
Max. Flow Rate(L/min) |
128*2 |
|
Working Pressure (MPa) |
34.3 |
|
Hydraulic Oil Tank Capacity (L) |
130 |
|
A-Length (mm) |
7576 |
|
B-Width(mm) |
2490 |
|
C-Height (to boom top)(mm) |
2780 |
|
D-Height (to cabin top)(mm) |
2813 |
|
E-Clearance of Counterweight (mm) |
870 |
|
F-Min. Ground Clearance (mm) |
433 |
|
G-Tail Swing Radius (mm) |
2015 |
|
H-Track Length on Ground (mm) |
2750 |
|
J-Track Length (mm) |
3486 |
|
K-Track Gauge (mm) |
1960 |
|
L-Track Width (mm) |
2460 |
|
M-Track Shoe Width (mm) |
500 |
|
N-Swing Plate Width (mm) |
2490 |
|
O-Max. Digging Height (mm) |
8630 |
|
P-Max. Dumping Height (mm) |
6180 |
|
Q-Max. Digging Depth (mm) |
5501 |
|
R-Max. Vertical Digging Depth (mm) |
4940 |
|
T-Max. Digging Reach |
8309 |
|
U-Max. Digging Reach on Ground (mm) |
8180 |
|
V-Min. Swing Radius (mm) |
2495 |
|
X-Distance from Swing Center to Tail (mm) |
2015 |
|
Y-Track Teeth Thickness (mm) |
25 |
|
Z-Counterweight Height (mm) |
1935 |
|
A1-Length of Shipment (mm) |
4402 |
|
Arm length (mm) |
2500 |
|
Boom Length (mm) |
4600 |
