150m Deep Portable Hydraulic Water Well Rotary Drilling Rig /borehole Water Well Drilling Machine
150m Deep Portable Hydraulic Water Well Rotary Drilling Rig /borehole Water Well Drilling Machine
Small crawler self-propelled 150m pneumatic drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. Small crawler self-propelled 150m pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.

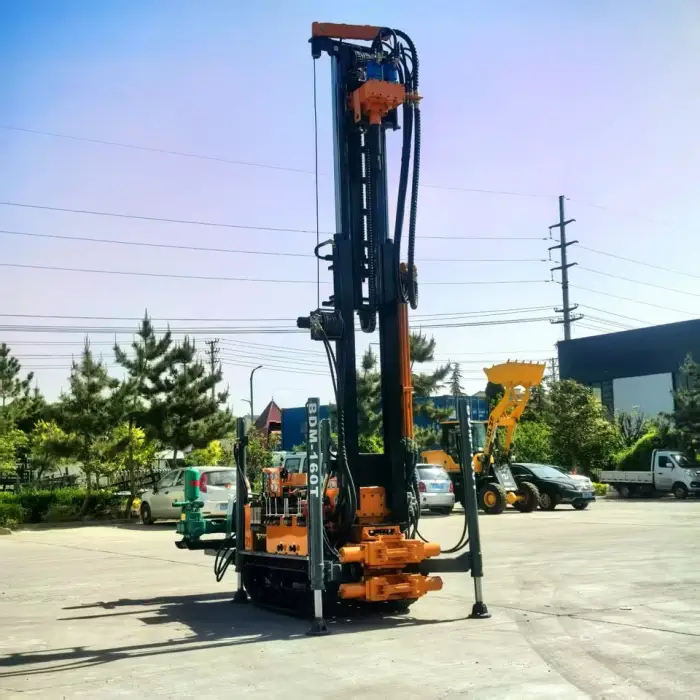

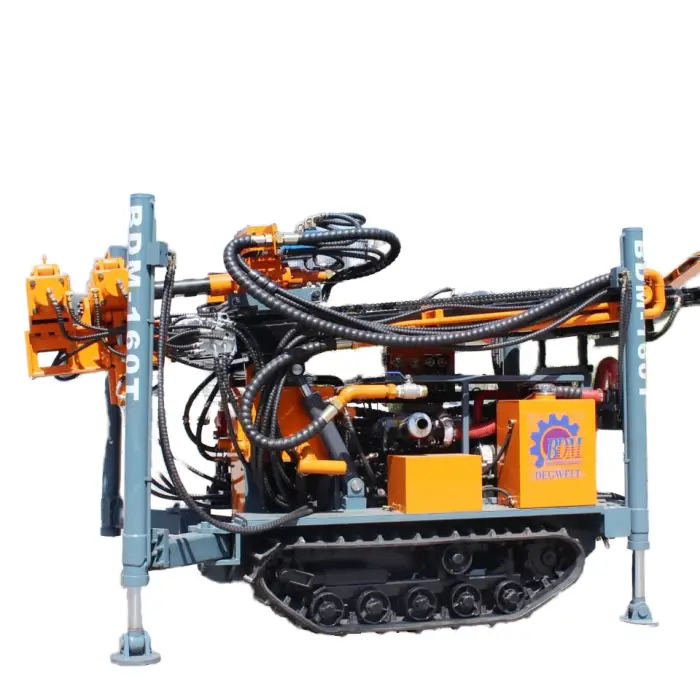

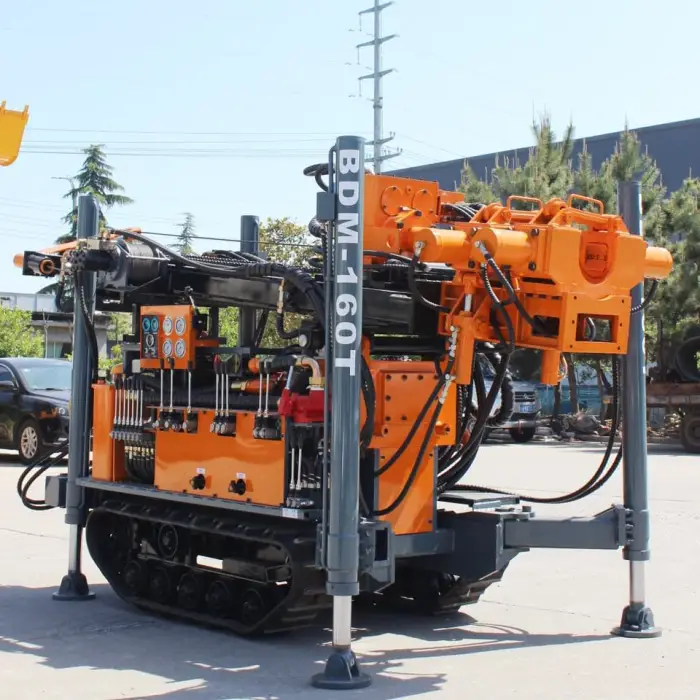

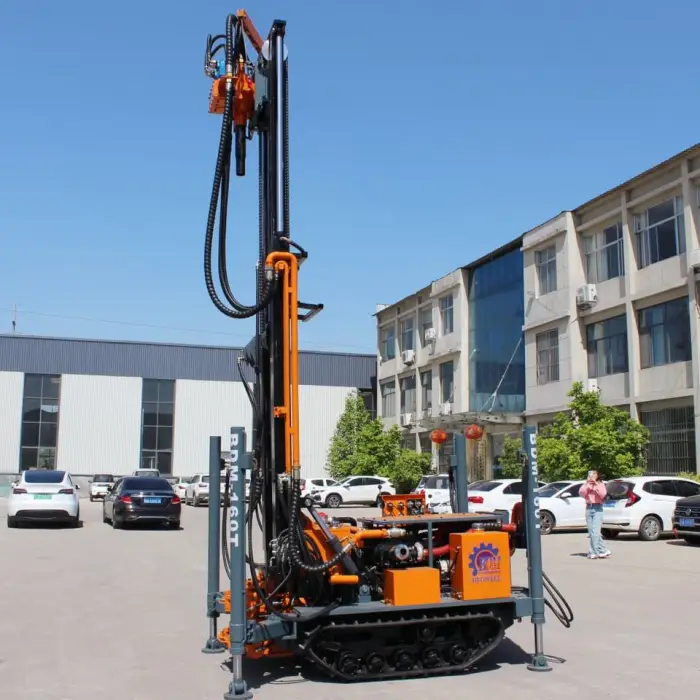

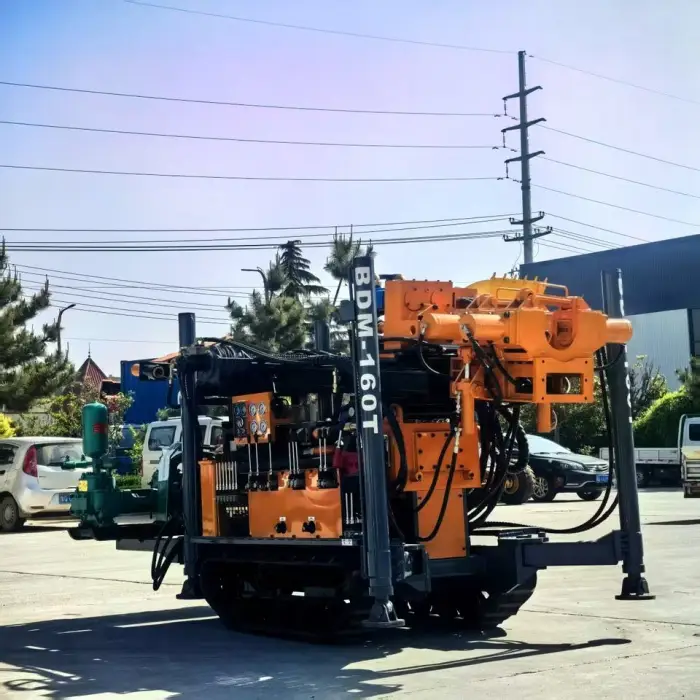

Machine details show :
Technical Specifications :
Model size | BDM160T |
Bore diameter(hammer) | 90-300mm |
Bore depth | 180m |
Air consumption | 17-31m³/min |
Air pressure | 1.7-2.5Mpa |
Once-time advance length | 2.4m |
Pipe diameter | 76mm/89mm |
Pipe length | 2m |
Push force | 4T |
Lifting force | 15T |
Max torque of rotary | 4000-4600Nm |
Rotary speed | 45-65r/min |
Mud Pump flow | 200L/min (option) |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 2300×1200×2900mm |
weight | 2700kg |
Diesel engine | 60KW |
